3-13
1
4
6
7
9
2
3
5
8
9
bk

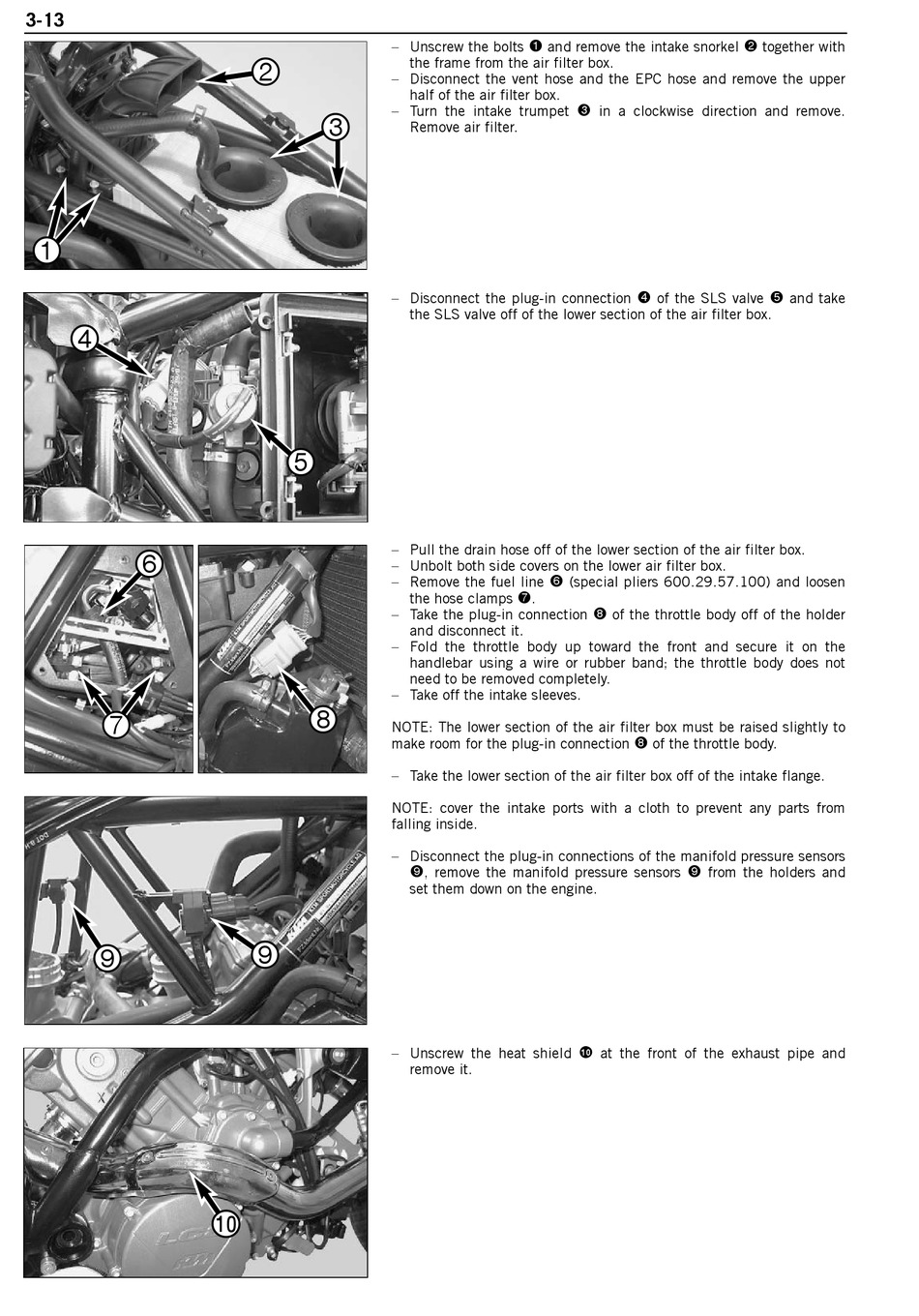

– Unscrew the bolts and remove the intake snorkel
1
the frame from the air filter box.
– Disconnect the vent hose and the EPC hose and remove the upper
half of the air filter box.
– Turn the intake trumpet
Remove air filter.
– Disconnect the plug-in connection
the SLS valve off of the lower section of the air filter box.
– Pull the drain hose off of the lower section of the air filter box.
– Unbolt both side covers on the lower air filter box.
– Remove the fuel line
6
the hose clamps .
7
– Take the plug-in connection
and disconnect it.
– Fold the throttle body up toward the front and secure it on the
handlebar using a wire or rubber band; the throttle body does not
need to be removed completely.
– Take off the intake sleeves.
NOTE: The lower section of the air filter box must be raised slightly to
make room for the plug-in connection
– Take the lower section of the air filter box off of the intake flange.
NOTE: cover the intake ports with a cloth to prevent any parts from
falling inside.
– Disconnect the plug-in connections of the manifold pressure sensors
, remove the manifold pressure sensors
9
set them down on the engine.
– Unscrew the heat shield
remove it.
in a clockwise direction and remove.
3
of the SLS valve
4
(special pliers 600.29.57.100) and loosen
of the throttle body off of the holder
8
of the throttle body.
8
from the holders and
9
at the front of the exhaust pipe and
bk
together with
2
and take
5
