ZURN AQUASPEC Z81000 SERIES Installation Instructions

TECHNICAL INFORMATION
FLOW: 2.2 GPM [7.6 L] VARIABLE ORIFICE AERATOR*
MAXIMUM PRESSURE: 125 PSI
CARTRIDGE STYLE: CERAMIC DISC MIXING CARTRIDGE WITH TEMPERATURE LIMIT STOP
* OTHER AERATORS AVAILABLE BY REQUEST
INSTALLATION INSTRUCTIONS
1. MOUNT GASKET (ITEM #6) ONTO SHANKS OF FAUCET BODY (ITEM #5).
2. PLACE FAUCET WITH GASKET ON SINK THROUGH PRE-DRILLED MOUNTING HOLES IN SINK.
3. SECURE FAUCET (ITEM #5) TO SINK USING MOUNTING NUTS (ITEM #7A). DO NOT OVER
TIGHTEN.
4. INSTALL HANDLE (ITEM #1A).
4.1. REMOVE COLORED HOT/COLD INDEX (ITEM #1C) FROM HANDLE BY PRESSING OUT FROM
UNDERSIDE OF HANDLE (ITEM #1A).
4.2. LOOSEN SETSCREW (ITEM #1B) USING 3/32" ALLEN WRENCH.
4.3. SLIDE HANDLE ONTO STEM OF CERAMIC MIXING CARTRIDGE (ITEM #4).
4.4. TIGHTEN SETSCREW (ITEM #1B) USING 3/32" ALLEN WRENCH. DO NO OVERTIGHTEN.
4.5. PRESS COLORED HOT/COLD INDEX (ITEM #1C) INTO HANDLE.
5. ATTACH LAVATORY SUPPLIES TO SHANKS WITH RISER NUTS (ITEM #7B).
6. OPTIONAL:
INSTALL POP-UP DRAIN OR GRID STRAINER DRAIN IN SINK OUTLET AND PLUMB WASTE
CONNECTION.
7. TURN SUPPLY WATER ON AND OPERATE FAUCET CHECKING FOR LEAKS.
8. INSTALL AERATOR INTO FAUCET AND HAND TIGHTEN INTO FAUCET SPOUT. IT MAY BE
NECESSARY TO REMOVE AND CLEAN THE AERATOR AT START UP.
MAINTENANCE
1. YOUR ZURN FAUCET HAS A HIGHLY POLISHED NICKEL CHROME PLATED FINISH. CLEAN WITH
SOAP AND WATER OR A MILD CLEANER WHICH IS SAFE FOR CHROME PLATING. DO NOT USE
ACIDS OR TOILET BOWL CLEANER AS THEY WILL DAMAGE THE FINISH.
2. AQUASPEC FAUCETS CONTAIN CERAMIC MIXING CARTRIDGES WHICH REQUIRE NO
MAINTENANCE. TO REMOVE AND REPLACE THE CARTRIDGE:
2.1. REMOVE HOT/COLD INDEX BUTTON (ITEM #1C) BY CAREFULLY PRYING LOOSE FROM
UNDERSIDE OF HANDLE (ITEM #1A).
2.2. LOOSEN SET SCREW (ITEM # 1B) IN HANDLE.
2.3. REMOVE HANDLE FROM CARTRIDGE STEM.
2.4. LOOSEN AND REMOVE CARTRIDGE CAP (ITEM # 2).
2.5. LOOSEN AND REMOVE CARTRIDGE RETAINING NUT (ITEM #3).
2.6. PULL CERAMIC MIXING CARTRIDGE (ITEM #4) BY PULLING ON STEM WHILE WIGGLING
FROM SIDE-TO-SIDE.
2.7. INSTALL NEW CARTRIDGE USING THE ALIGNMENT PINS FOR PROPER ORIENTATION AND
PROPER SEATING IN THE FAUCET BODY.
2.8. REINSTALL HANDLE ASSEMBLY BY REVERSING STEPS 2.1 THROUGH 2.5.
3. TEMPERATURE LIMIT ADJUSTMENT – THE Z81000 FAUCET MAY BE ADJUSTED TO LIMIT THE
MAXIMUM OPERATING TEMPERATURE.

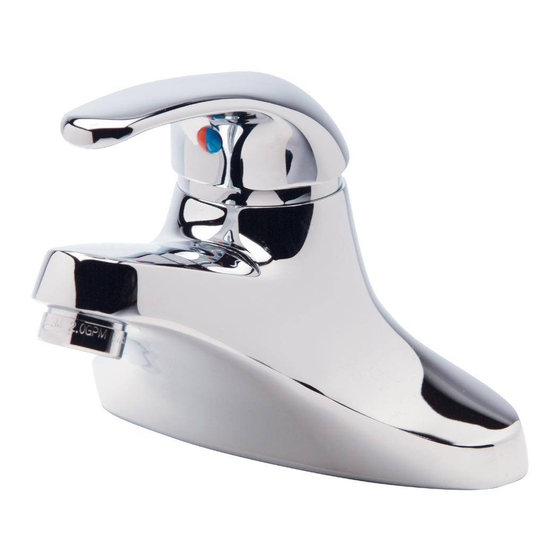

AQUASPEC FAUCETS
MODEL – Z81000 SERIES
SINGLE CONTROL FAUCET
POP-UP DRAIN (-P)
GRID STRAINER DRAIN (-G)
PAGE 1 OF 3
CF1040 12/20/06
Form # Date:
105499 A
C.N. No. Rev.
