Device Installation; Unpacking; Assembly - Level Pro ITC 250 SERIES User Manual

250 SERIES
Loop Powered Display
Max. Connection
Leads Diameter
EMC
This is a class A unit. In a residential or a similar area it can cause radio frequency
interference. In such cases the user can be requested to use appropriate preventive
measures.

4. DEVICE INSTALLATION

The unit has been designed and manufactured ensuring a high level of user safety and resistance to
interference that may occur within a typical industrial environment. In order to take full advantage of
these characteristics the installation of the unit must be conducted correctly and according to the
local regulations.
Installation should be conducted by qualified personnel.
Read the basic safety requirements on page 3 prior to starting the installation.
All installation works must be conducted with a disconnected power supply.

4.1. UNPACKING

After removing the unit from the protective packaging, check for transportation damage. Any
transportation damage must be immediately reported to the carrier. Also, write down the unit serial
number on the housing and report the damage to the manufacturer.

4.2. ASSEMBLY

Disconnect the power supply prior to starting assembly.
Check the connections are wired correctly prior to switching the unit on.

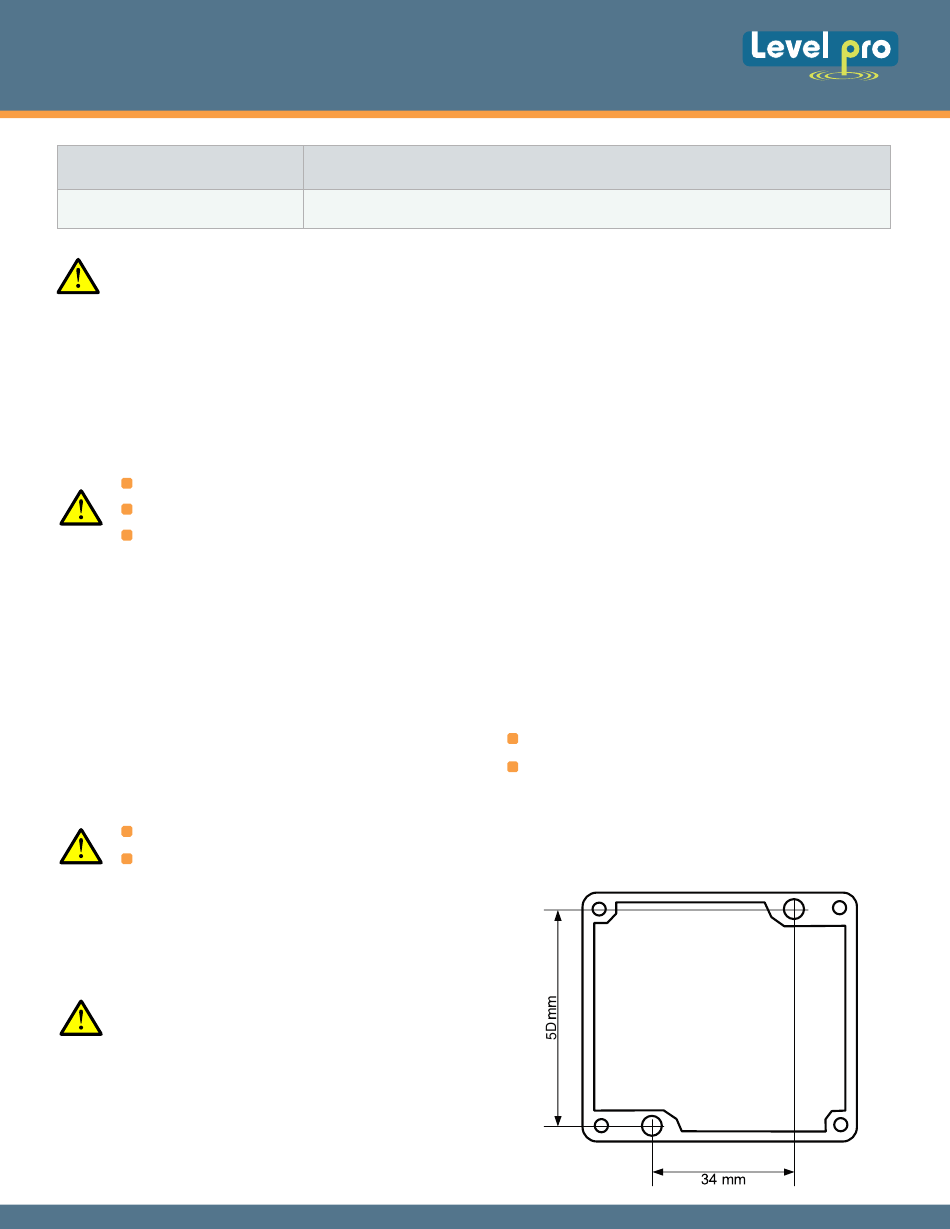

To install device on the wall, a pinholes
s h o u l d b e m a d e . F i g u r e 4 . 1 p r e s e n t s
dimensions of the device and distances
between holes. The back side of the device
has four mounting holes. This part of the
c a s e s h o u l d b e m o u n t e d t o a w a l l b y
screws.
2,5 mm2
According to: PN-EN 61326-1
Included with the unit
User's Manual,
Warranty,
04
