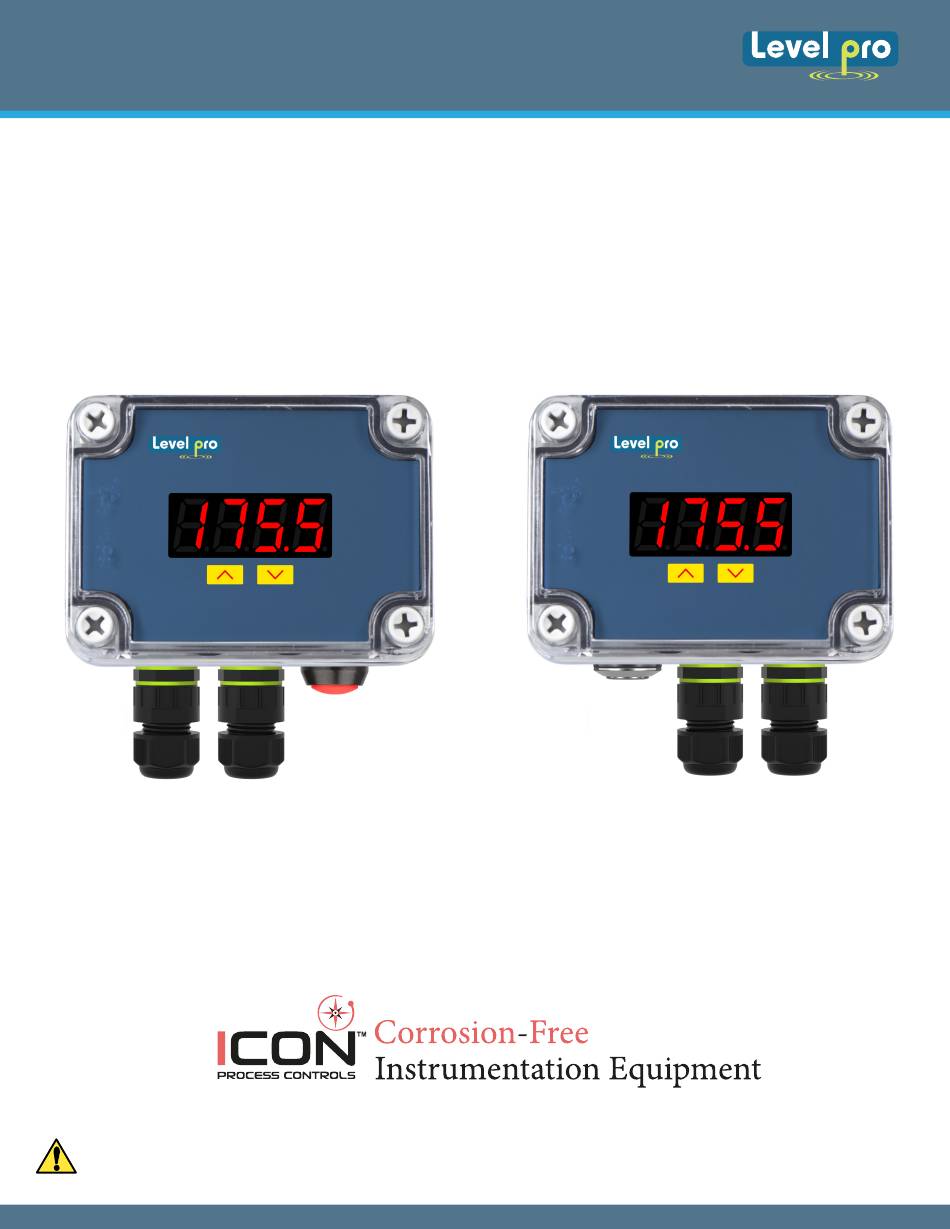

- Page 1 250B SERIES Level Process Display 250B SERIES INSTRUCTION MANUAL 250B-SR 250B-ST Read the User's Manual Carefully. Manufacturer Reserves the Right to Implement Changes Without Prior Notice.
-
Page 2: Specifications
250B SERIES Level Process Display Corrosion Large Bright NEMA 4X High Resistant Led Display Impact Enclosure FEATURES Battery Powered • Momentary or Adjustable Relay Timer * • NEMA 4X Enclosure • LED Display • All Plastic - Corrosion Resistant •... - Page 3 250B SERIES Level Process Display Step-by-Step Programming | Tank Level Set-up STEPS DISPLAY OPERATION Step-1 Press Up + Down Press and hold both buttons Buttons Together to enter the menu Hold Press Step-2 Release Buttons Enter Pass Code: 1234 (see next step)
- Page 4 ITC-250B SERIES Battery Powered Level Display 250B-SO (Sensor Only) WIRING DIAGRAM Battery Display Cable Gland Button ORDERING Part Number Input Battery Life ITC250B-SO-4 4-20mA 4000 mA h 100 Series Sensor ITC250B-SO-8 4-20mA 8000 mA h 250B-ST (Sensor + Telemetry) WIRING DIAGRAM...
- Page 5 ITC-250B SERIES Battery Powered Level Display 110.15 250B-SO (Sensor Only) Dimensions 92.15 DISPLAY 4.30 PRESS BUTTON SWITCH QUICK DISCONNECT 250B-ST (Sensor + Telemetry) Dimensions 110.15 92.15 DISPLAY 4.30 QUICK DISCONNECT LATCHING PUSH BUTTON 250B-SR (Sensor + Relay) Dimensions...
- Page 6 ITC-250B SERIES Battery Powered Level Display Step-by-Step Wiring Set Up...
- Page 7 ITC-250B SERIES Battery Powered Level Display Step-by-Step Wiring Set Up...
