250 SERIES
Loop Powered Display
The relay outputs and LEDs (named "R") can be controlled depend on both - the current value
and the peak value (when peak detection is active, for flow rate only) of the input signal.

7. DEVICE PROGRAMMING

The display menu allow user to set all parameters connected to operation of measurement input,
control modes, critical situations behavior (relay) and access settings. The meaning of the particular
parameters is described in paragraph MENU DESCRIPTION.
The device is configured via IR remote controller but it must be supplied at least by 10mA current
and the temperature must be at least 0°C in order to do that.

7.1. PROGRAMMING MENU

To enter main menu (measurement mode) the operator must to press and hold the [ESC/MENU]
button for a minimum of two (2) seconds
If the user password is defined (see parameter "Scod"), the operator will have to correctly enter it at
this point prior to proceeding to menu options .
After entering of last digit of the correct password the first menu position will be displayed if the
password is incorrect that a warning "Err" will be displayed.

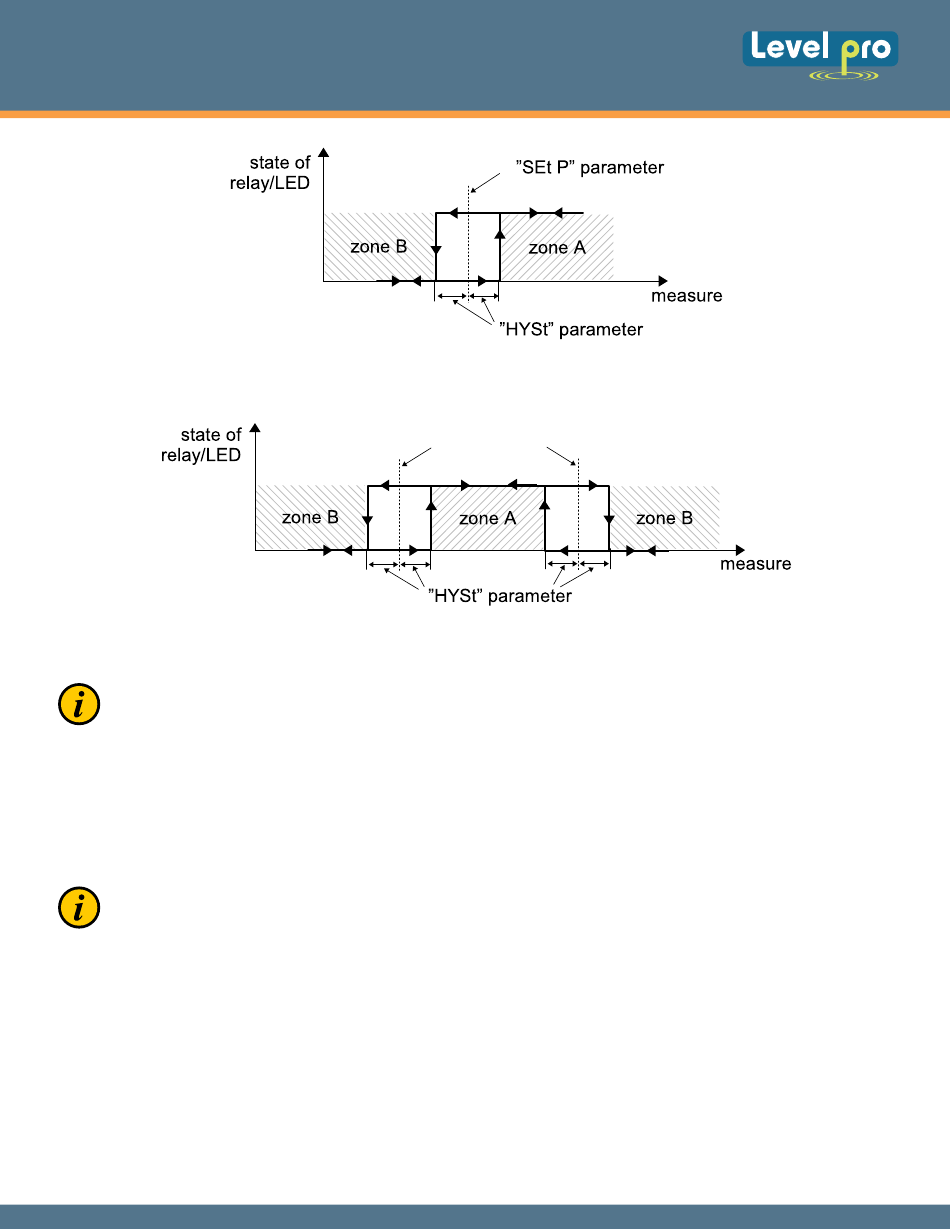

Figure 6.5. One threshold control of the relay/LED outputs
"SEt P" or "SEt P2" parameter
Figure 6.6. Two threshold control of the relay/LED outputs
10
