TVF SERIES
R
Display / Flow / Batcher / Totalizer
Quick-Start User Manual

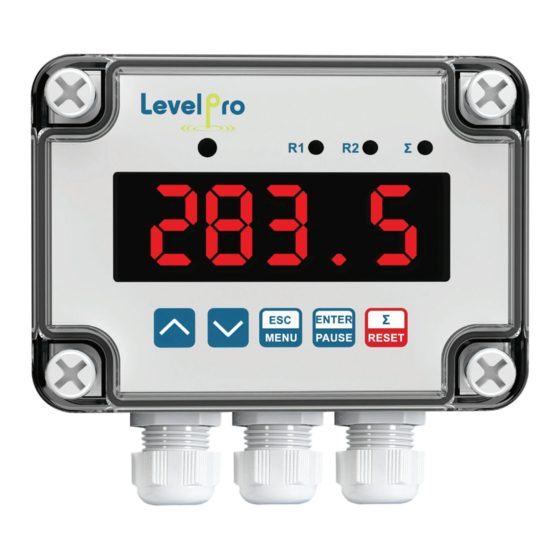

TVF SERIES DISPLAY
FLOW RATE - TOTALIZING - BATCHING
• Firmware: v.6.00 or higher
• Input type: 0/4-20 mA or Pulse
• Batching and totalizer function
Read the user's manual carefully before starting to use the unit or software.
Producer reserves the right to implement changes without prior notice.
www.iconprocon.com | sales@iconprocon.com | 905.469.9283
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Level Pro TVF Series
Summary of Contents for Level Pro TVF Series

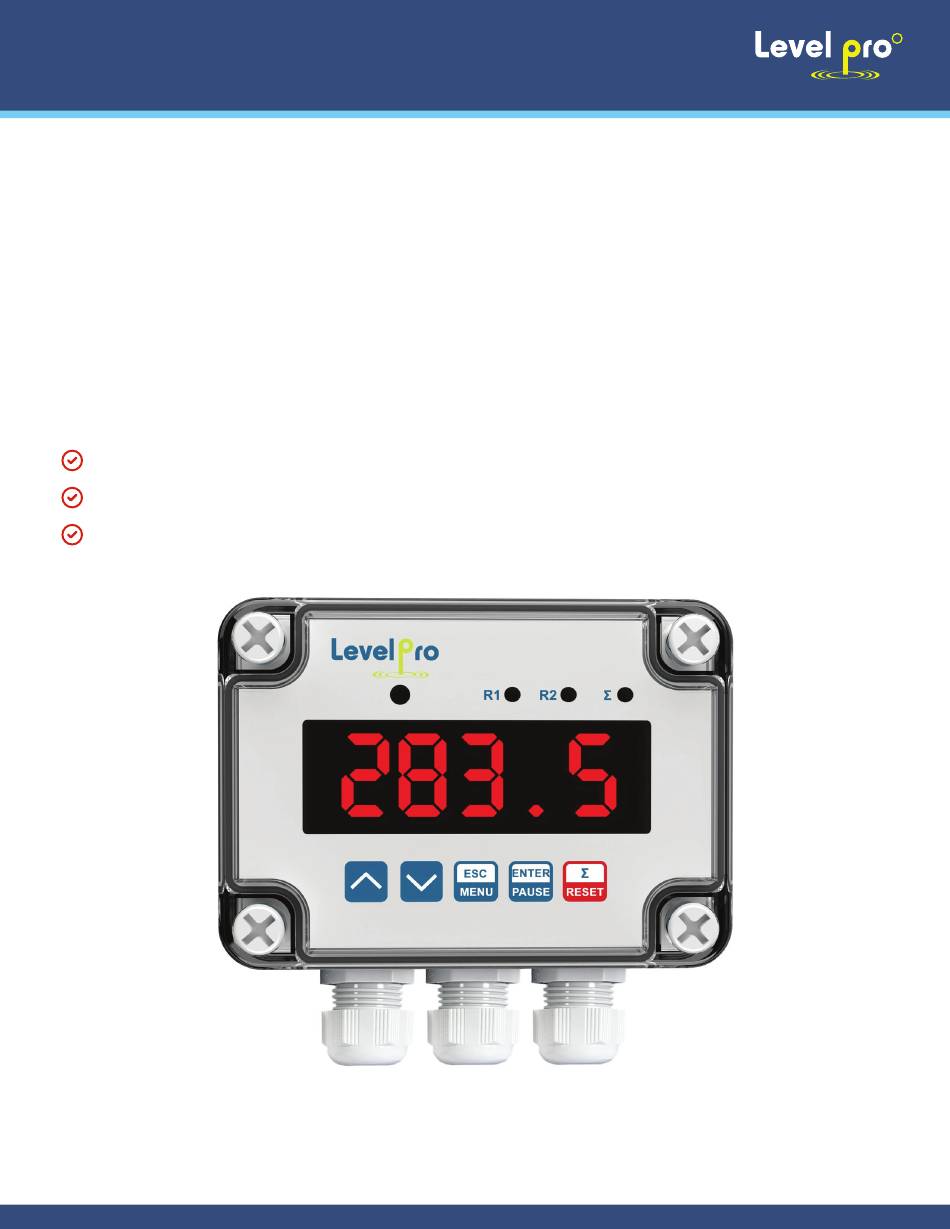

- Page 1 TVF SERIES Display / Flow / Batcher / Totalizer Quick-Start User Manual TVF SERIES DISPLAY FLOW RATE - TOTALIZING - BATCHING • Firmware: v.6.00 or higher • Input type: 0/4-20 mA or Pulse • Batching and totalizer function Read the user's manual carefully before starting to use the unit or software.
-
Page 2: Basic Requirements And User Safety
TVF SERIES Display / Flow / Batcher / Totalizer Explanation of symbols used in the manual This symbol denotes especially important guidelines concerning the installation and operation of the device. Not complying with the guidelines denoted by this symbol may cause an accident, damage or equipment destruction. -
Page 3: General Characteristics
2. GENERAL CHARACTERISTICS Main task of TVF Series is measurement of instantaneous flow (flow rate), and counting of total flow, The device can be used as regulator, to control industrial process. Measurement of instantaneous flow can be indicated in range: 0 to 9999 (plus decimal point) and can be expressed in combination of flow measurements (Gallon, litre and m3) and in three time measurements (second, minute, hour). -
Page 4: Device Installation
TVF SERIES Display / Flow / Batcher / Totalizer DEVICE INSTALLATION The unit has been designed and manufactured in a way assuring a high level of user safety and resistance to interference occurring in a typical industrial environment. In order to take full advantage of these characteristics installation of the unit must be conducted correctly and according to the local regulations. -
Page 5: Connection Method
Flow sensor connected to current input of flow meter should be installed accordingly to local regula�ons, and recommenda�ons of the producer. Correct installa�ons and applica�on of flow sensor is essen�al for correct opera�on flow meter type TVF Series. www.iconprocon.com | sales@iconprocon.com | 905.469.9283 www. levelprosales.com... -
Page 6: Technical Data
TVF SERIES Display / Flow / Batcher / Totalizer The device has 5 buttons being used for main presets programming. To get high protection level, the keyboard is mounted under transparent cover. To allow user to change presets without opening the cover, an IR sensor is mounted. Remote controller contains basic functions to handle menu of the device (note, that remote controller is not a part of the TVF Series set –... - Page 7 TVF SERIES Display / Flow / Batcher / Totalizer Instantaneous Flow Unit L or m per min. or sec. or hour Total Flow Range 16 Digits Total Flow Precision Selected from range: 0 ÷ 0.000 Total Flow Unit Batcher Counter Range...
-
Page 8: Principle Of Operation
TVF SERIES Display / Flow / Batcher / Totalizer Symbols and Functions of Push Buttons: Symbol used in the manual : [ESC/MENU] Functions: • Enter to main menu ( press and hold for at least 2 sec.) MENU • Exit the current Screen and Enter to previous menu (or measure mode) •... - Page 9 TVF SERIES Display / Flow / Batcher / Totalizer FLOW METER CONNECTIONS TKM Series - 4-20mA Output (option) (option) RS - 485 Terminal (7) Blue Wire (-) 17 16 15 13 12 11 10 9 Terminal (8) Brown Wire (+)
- Page 10 TVF SERIES Display / Flow / Batcher / Totalizer TIW Series - GPM/Pulse = K Factor (option) (option) Pulse Input RS - 485 Terminal (7) Blue Wire (-) 17 16 15 12 11 Terminal (8) Brown Wire (+) Terminal (10) Black Wire (Pulse) Jumper Wire Jump Terminal (13 &...
- Page 11 TVF SERIES Display / Flow / Batcher / Totalizer Ultraflo 1000 | 4000 | 5000 - Pulse Output GPM/Pulse Display = K Factor (option) (option) Pin 1 : Terminal 8 (+) RS - 485 Pin 2 : Terminal 10 17 16 15...
- Page 12 TVF SERIES Display / Flow / Batcher / Totalizer 5 4 3 FUSE FUSE CAUTION Contacts of relay outputs are not equipped with spark suppressors. While use the relay outputs for switching of induc�ve loads (coils, contactors, power relays, electromagnets, motors etc.) it is required to use addi�onal suppression circuit (typically capacitor 47nF/ min.
-
Page 13: Maintenance
TVF SERIES Display / Flow / Batcher / Totalizer Figure 4.12. Example of current output connec�on using external power supply MAINTENANCE The unit does not have any internal replaceable or adjustable components available to the user. Pay a�en�on to the ambient temperature in the room where the unit is opera�ng. Excessively high temperatures cause faster ageing of the internal components and shorten the fault-free �me of unit opera�on. -
Page 14: Menu Structure
TVF SERIES Display / Flow / Batcher / Totalizer 7 MENU STRUCTURE MENU MENU ENTER ENTER PAUSE PAUSE PAUSE MENU ENTER PAUSE MENU ENTER PAUSE MENU MENU Visible only if ”SourCE”=”bAt” Visible only if ”SourCE”=”tot” MENU ENTER ENTER PAUSE PAUSE... - Page 15 TVF SERIES Display / Flow / Batcher / Totalizer ENTER ENTER PAUSE PAUSE MENU PAUSE MENU MENU ENTER Output PAUSE PAUSE MENU MENU Programming PAUSE MENU MENU ENTER PAUSE MENU Brightness PAUSE MENU ENTER ENTER PAUSE PAUSE MENU PAUSE MENU...
- Page 16 TVF SERIES Display / Flow / Batcher / Totalizer TruVu User Manual – METER TVL Series Specification may be modified without notice in advance. For More Information Visit www. iconprocon.com or Contact Us @ 905.469.9283 www.iconprocon.com | sales@iconprocon.com | 905.469.9283...
