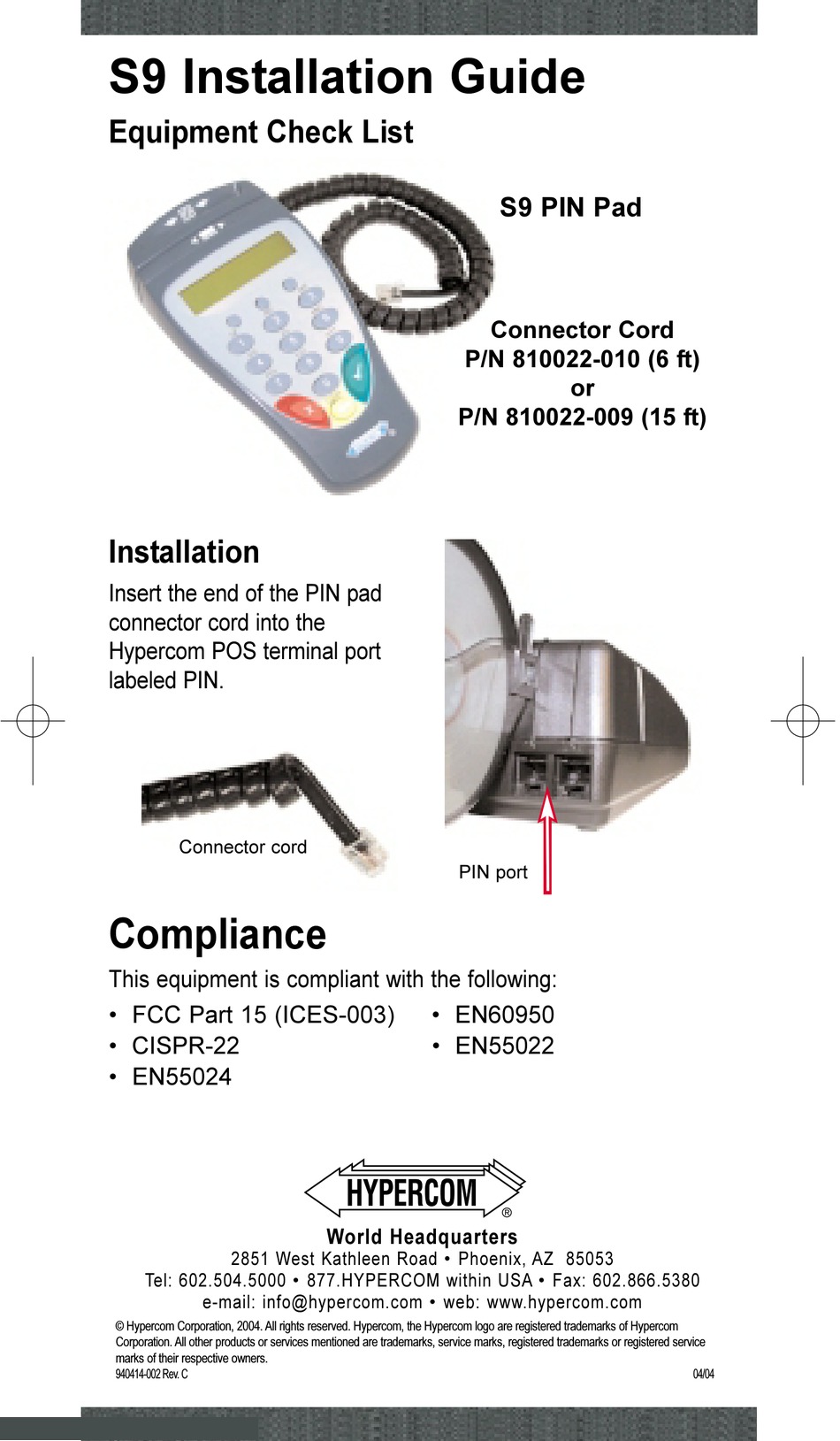

S9 Installation Guide
Equipment Check List
Installation
Insert the end of the PIN pad
connector cord into the
Hypercom POS terminal port
labeled PIN.
Connector cord
Compliance
This equipment is compliant with the following:
• FCC Part 15 (ICES-003)
• CISPR-22
• EN55024
New address: 8888 E. Raintree Dr., #300, Scottsdale, AZ
85260 USA | Tel: +1.480.642.5000 | Fax:
Tel: 602.504.5000 • 877.HYPERCOM within USA • Fax: 602.866.5380
e-mail: info@hypercom.com • web: www.hypercom.com
© Hypercom Corporation, 2004. All rights reserved. Hypercom, the Hypercom logo are registered trademarks of Hypercom
Corporation. All other products or services mentioned are trademarks, service marks, registered trademarks or registered service
marks of their respective owners.
940414-002 Rev. C
World Headquarters
2851 West Kathleen Road • Phoenix, AZ 85053

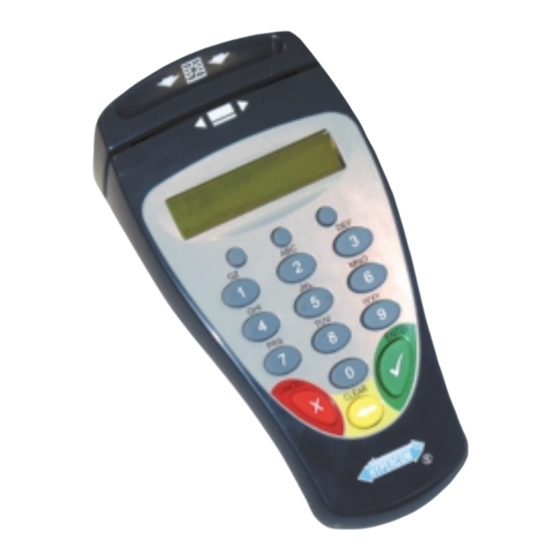

S9 PIN Pad
Connector Cord
P/N 810022-010 (6 ft)
P/N 810022-009 (15 ft)
PIN port
• EN60950
• EN55022
or
04/04
