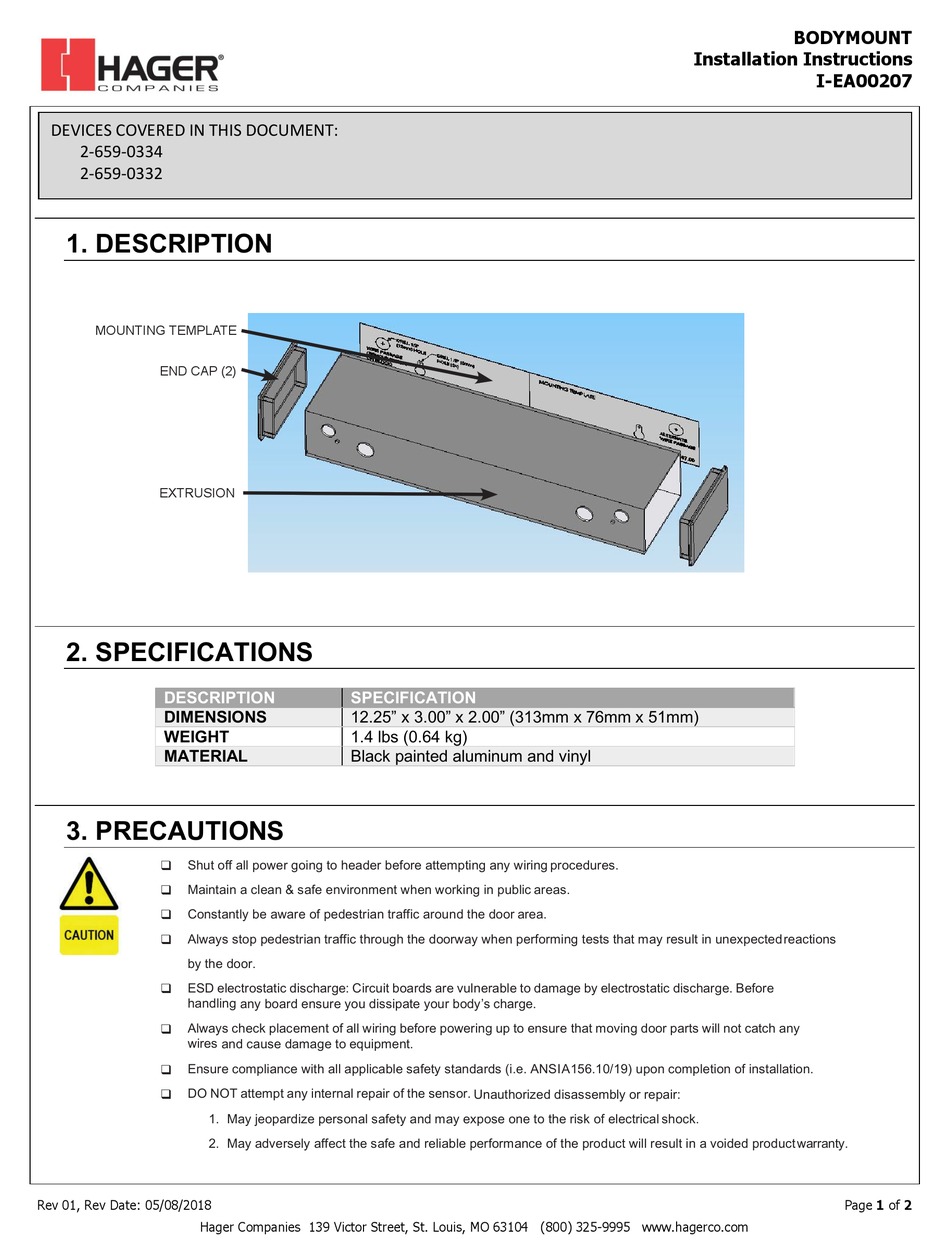

hager BODYMOUNT Installation Instructions Manual

DEVICES COVERED IN THIS DOCUMENT:
2-659-0334
2-659-0332
1. DESCRIPTION
MOUNTING TEMPLATE
END CAP (2)
EXTRUSION

2. SPECIFICATIONS

DESCRIPTION
DIMENSIONS
WEIGHT
MATERIAL
3. PRECAUTIONS
Shut off all power going to header before attempting any wiring procedures.
q
Maintain a clean & safe environment when working in public areas.
q
Constantly be aware of pedestrian traffic around the door area.
q
Always stop pedestrian traffic through the doorway when performing tests that may result in unexpected reactions
q
by the door.
ESD electrostatic discharge: Circuit boards are vulnerable to damage by electrostatic discharge. Before
q
handling any board ensure you dissipate your body's charge.
Always check placement of all wiring before powering up to ensure that moving door parts will not catch any
q
wires and cause damage to equipment.
q Ensure compliance with all applicable safety standards (i.e. ANSI A156.10/19) upon completion of installation.
DO NOT attempt any internal repair of the sensor. Unauthorized disassembly or repair:
q
1. May jeopardize personal safety and may expose one to the risk of electrical shock.
2. May adversely affect the safe and reliable performance of the product will result in a voided product warranty.
Rev 01, Rev Date: 05/08/2018
Hager Companies 139 Victor Street, St. Louis, MO 63104 (800) 325-9995 www.hagerco.com
SPECIFICATION
12.25" x 3.00" x 2.00" (313mm x 76mm x 51mm)
1.4 lbs (0.64 kg)
Black painted aluminum and vinyl
BODYMOUNT
Installation Instructions
I-EA00207
Page 1 of 2
