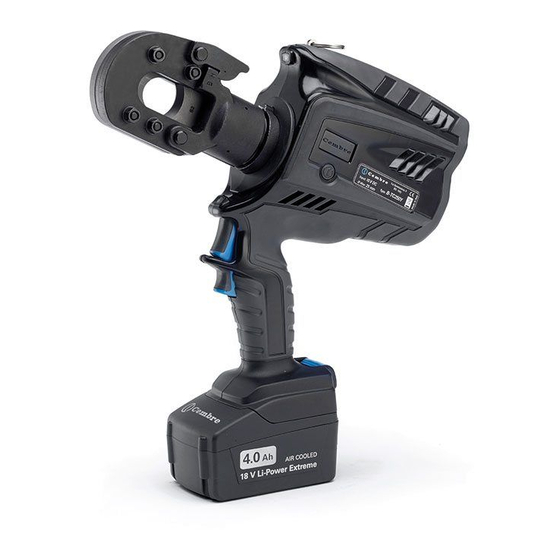

- Page 1 BATTERY OPERATED HYDRAULIC CUTTING TOOL B-TC250YA B-TC250YNA ENGLISH OPERATION AND MAINTENANCE MANUAL...
- Page 2 FIG. 1a FIG. 2 Metabo battery FIG. 1b Makita battery adhesive tape FIG. 4 Low battery FIG. 3 FIG. 5...
- Page 3 FIG. 6 B-TC250YA B-TC250YNA LED WORKLIGHT UPPER BLADE LOWER BLADE LATCH OPERATING BUTTON PRESSURE RELEASE BUTTON BATTERY RELEASE BATTERY RING FOR SHOULDER STRAP BATTERY ADAPTER...
-
Page 4: Warning Symbols
WARNING SYMBOLS Tool – Before using the tool, carefully read the instructions in this manual. – Keep hands clear of cutting blades. – Always wear safety glasses and gloves when operating this tool. – User information applies in member states of the European Union (Directives 2011/65/EU and 2012/19/EU page ), see page 9. -
Page 5: General Characteristics
1. GENERAL CHARACTERISTICS B-TC250YA B-TC250YNA Application range suitable for cutting Copper, Aluminium, ACSR and Steel conductors, ropes and rods (guy wire including EHS, ground rod up to 5/8") Max. cutting diameter mm (inches) 25 (1”) Operating pressure bar (psi) 880 (12,700) -
Page 6: Head Rotation
(7) (Ref. to Fig. 1a and 1b), B-TC250YA: in the fi g. 1a press the release buttons (7) and slide the battery out unlocking it. B-TC250YNA: in the fi g. 1b press the release button (7) and slide the battery out unlocking it. - Page 7 2.2) Setting Insert the conductor between the blades, up to the desired cutting point (Ref. to Fig. 2). To cut short pieces of steel or ACSR ropes, it is suggested to tie or wrap rope with adhesive or duct tape around the area to be cut and at its end (Ref. to Fig. 2), so to limit the projection of steel fragments which could damage or hurt the operator.
-
Page 8: Thorough Cleaning
The tool will continue to work however 15 sec. after use an alarm comprising 3 beeps combined with illumination of the worklights will signal that its return to Cembre for service is recom- mended (see § 7). -
Page 9: Connection To Computer
5. CONNECTION TO COMPUTER The memory card integrated in the tool records operating data for transfer via the USB cable supplied. To view and manage this data, go to www.cembre.com and register in the dedicated area, then download the free Cembre software CEM_SWBT01. -
Page 10: Cutting Range
6. CUTTING RANGE TENSILE STRENGTH MAX CUTTING DIAMETER MATERIAL (daN/mm (lbs/sq.in.) (mm) (inches) Copper ≤ ≤ 59,450 Aluminium ≤ 29,000 ≤ Almelec ≤ 49,300 ≤ Steel ≤180 261,000 ≤ 7 x 3,0 : ø = 9,0 mm 7 x 0.118 = ø 0.354 19 x 2,1 : ø... -
Page 12: Return To Cembre For Overhaul
Centre; if possible, attach a copy of the Test Certifi cate supplied by Cembre together with the tool or fi ll in and attach the form available in the “ASSISTANCE” section of the Cembre website.
