Summary of Contents for Cembre B-TC950A
- Page 1 BATTERY OPERATED HYDRAULIC CUTTING TOOL B-TC950A B-TC950NA ENGLISH OPERATION AND MAINTENANCE MANUAL...
- Page 2 FIG. 1a FIG. 2 Metabo Battery Cu Al Ø MAX. 95 mm (3-3/4”) FIG. 1b Makita Battery FIG. 3 Steel FIG. 3a FIG. 4 Low battery...

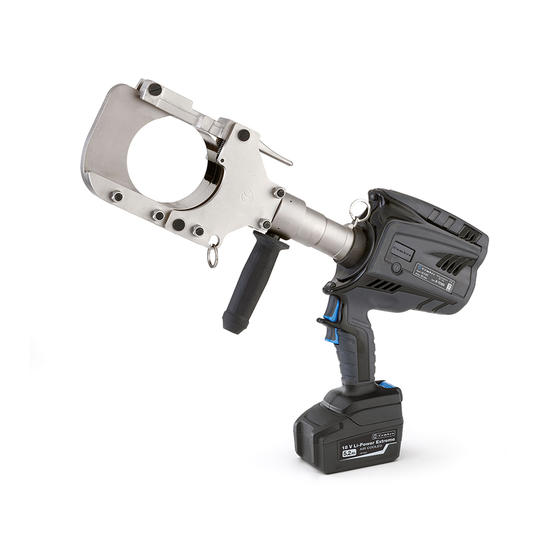

- Page 3 FIG. 5 B-TC950A B-TC950NA LOCKING LEVER UPPER BLADE LOWER BLADE RING FOR SHOULDER STRAP HANDLE GRIP LED WORKLIGHT OPERATING BUTTON PRESSURE RELEASE BUTTON BATTERY RELEASE BATTERY ADAPTER BATTERY...
-
Page 4: Warning Symbols
WARNING SYMBOLS Tool – Before using the tool, carefully read the instructions in this manual. – Keep hands clear of cutting blades. – Do not cut Steel. – Always wear safety glasses and gloves when operating this tool. – User information applies in member states of the European Union (Directives 2011/65/EU and 2012/19/EU), see page 10. -
Page 5: General Characteristics
1. GENERAL CHARACTERISTICS B-TC950A B-TC950NA Application range suitable for cutting Copper, Aluminium or telephone cables Max. cutting diameter mm (inches) 95 (3-3/4) Operating pressure bar (psi) 880 (12,700) Dimensions 518 x 468 x 83 518 x 488 x 83 mm (inches) (20.4 x 18.4 x 3.3) - Page 6 This tool has been specifi cally designed for cutting Copper or Aluminium cables. DO NOT ATTEMPT TO CUT STEEL ROPES OR STEEL REINFORCED CONDUCTORS. Do not use the tool for purposes other than those intended by Cembre. The operator should concentrate on the work being performed and be careful to maintain a balanced working position.
- Page 7 (9) (Ref. to Fig. 1a and 1b), B-TC950A: in the fi g. 1a press the release button (9) and slide the battery out unlocking it. B-TC950NA: in the fi g. 1b press the release buttons (9) and slide the battery out unlocking it.
-
Page 8: Maintenance
The tool will continue to work however 15 sec. after use an alarm comprising 3 beeps com- bined with illumination of the worklights will signal that its return to Cembre for service is recommended (see § 6). -
Page 9: Lower Blade
Lower blade – Press lever (1) and open upper blade assembly. – Operate tool to advance the lower blade (3) until holding screw (18) is visible on the ram (13), than remove the battery from the tool. – Using a fl at blade screwdriver remove the holding screw (18) and release the lower blade (3). –... -
Page 10: Connection To Computer
5. CONNECTION TO COMPUTER The memory card integrated in the tool records operating data for transfer via the USB cable supplied. To view and manage this data, go to www.cembre.com and register in the dedicated area, then download the free Cembre software CEM_SWBT01. -
Page 12: Return To Cembre For Overhaul
Centre; if possible, attach a copy of the Test Certifi cate supplied by Cembre together with the tool or fi ll in and attach the form available in the “ASSISTANCE” section of the Cembre website.
