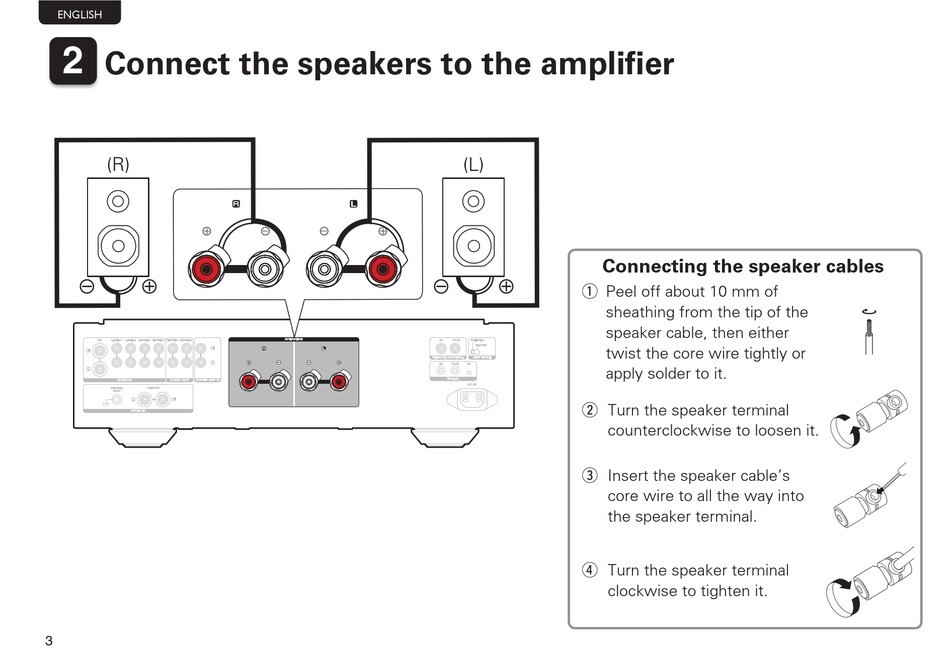

Connect the speakers to the amplifier
(R)
w q
CD LINE-1 LINE-2 RECORDER-1 RECORDER-2 RECORDER-1 RECORDER-2
AUDIO IN AUDIO OUT POWER AMP IN
SIGNAL PHONO
GND
AUDIO IN
3
FRANÇAIS ITALIANO ESPAÑOL
SPEAKERS
NEDERLANDS SVENSKA
(L)
Connecting the speaker cables
w q
q Peel off about 10 mm of
sheathing from the tip of the
speaker cable, then either
IN OUT STEREO
BI-AMP twist the core wire tightly or
REMOTE CONTROL AMP MODE
IN OUT ID
apply solder to it.
F .C.B.S.
AC IN
w Turn the speaker terminal
counterclockwise to loosen it.
e Insert the speaker cable's
core wire to all the way into
the speaker terminal.
r Turn the speaker terminal
clockwise to tighten it.
