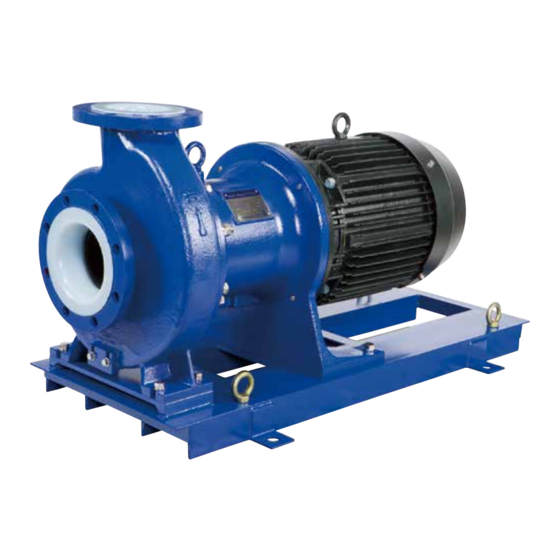

- Page 1 IWAKI Magnetic Drive Pump Model MDE Instruction Manual Read this manual before use of product...
-
Page 2: Table Of Contents
Thank you for selecting the IWAKI Magnetic Drive Pump type MDE. This instruction manual has been prepared to ensure correct and safe handling of the pump. Please read this manual carefully and thoroughly prior to operating the pump. Pay special attention to the "Safety Instruction to Prevent Personal Injuries," "Warning," and "Caution"... -
Page 3: Important Instructions
IMPORTANT INSTRUCTIONS Important notes and statements for safe operation, preventing physical injury, and property damage, are included on the body of the product and in the attached instruction manual. Always Observe These Safety Instructions! Safety Instruction to Prevent Personal Injuries Ignoring this message can lead to improper Warning handling resulting in death or serious injury to the... - Page 4 Do not use the pump for anything that it is not designed to do. User’s failure to • observe this instruction exempts IWAKI from any responsibility for personal injury or damage to the equipment or facility caused by the pump's misuse.
- Page 5 For specified application only The pump is designed and manufactured to the specifications agreed upon by the user and IWAKI. The use of a pump in any application other than those clearly speci- Prohibited fied may result in injury or damage to the pump. Use the pump strictly in accordance with the pump specifications and application range.
- Page 6 Safety Section CAUTION • Ventilate Poisoning may result during an operation which involves toxic or odorous liquid. Ventilate the operating site sufficiently. Caution • Spill-out prevention measures Appropriate protective measures should be taken against any spill-out accidents involving the operating liquid as a result of unexpected damage to the pump or the piping.
- Page 7 As a flange type driving magnet requires special equipment to hold it in place, do not remove it from the shaft . In case removal is necessary, contact IWAKI or your deal- •...
-
Page 8: Outline Of Product
OUTLINE OF PRODUCT 1. Before Using Pump ......7 2. Operating Principle ......7 3. Identification Codes ......8 4. Specifications and Outer Dimensions ......9 5. Names of Parts ......12 - 6 -... -
Page 9: Before Using Pump
1. Before Using Pump After unpacking, check the following points to confirm that the delivered product and its accompanying parts and elements are exactly what you ordered. When lifting the pump please follow the procedure mentioned "2. Installation" of "Pump operation". [1] Does the model indicated on the nameplate conform to your order? [2] Has the pump unit or any part of it been damaged or... -
Page 10: Identification Codes
3. Identification Codes Example: MDE 32 - 160 E K V F 055 I - A 2 1 w e r t y o !0 !1 Nominal bore size Suction◊Discharge 32: 50A◊32A, 40: 65A◊40A, 50: 80A◊50A Nominal Impeller size 100 ~ 200 Materials of P: PFA, E: ETFE, V: PVDF liquid-contact parts... -
Page 11: Specifications
4. Specifications and Outer Dimensions Nominal bore size Capacity Head Suction Port◊ Models l/min Discharge Port MDE32-100 16.0 19.0 22.5 27.0 30.0 50A◊32A 34.0 38.5 39.0 44.0 49.0 52.5 MDE40-100 14.0 18.0 22.0 25.0 29.5 33.0 65A◊40A 36.5 40.0 43.5 49.0... - Page 12 b b Outer dimensions in mm Flange mounted motor type Mass Model Motor W/O Motor (kg) φ 4- 19 MDE32-160 4.0kw MDE32-160 5.5kw 400 410 350 150 540 800 130 250 32A 50A MDE32-160 7.5kw φ 4- 23 MDE32-160 11kw 480 480 430 170 600 900 150 320 MDE32-160 15kw...
- Page 13 b b Outer dimensions in mm Foot mounted motor type Mass Model Motor W/O Motor (kg) φ MDE32-160 4.0kw 350 170 600 915 158 4- 19 MDE32-160 5.5kw 400 190 660 1015 178 32A 50A MDE32-160 7.5kw φ 4- 23 MDE32-160 11kw 440 210 740 1135 198...
-
Page 14: Names Of Parts
5. Names of Parts b b Flange mounted motor type 314.2 314.1 100.1 400.4 901.3 400.2 400.1 901.1 901.8 901.8 Parts Name Q'ty Material Remarks Parts Name Q'ty Material Remarks See Note 1 100.1 Front Casing Fluororesin+FCD400 O Ring See Note 1 Drain Plate Steel Bushing... - Page 15 b b Foot mounted motor type 932.2 932.1 314.2 314.1 100.1 400.4 901.5 901.3 400.2 400.1 901.1 901.8 901.8 Parts Name Q'ty Material Remarks Parts Name Q'ty Material Remarks Fluororesin+FCD400 See Note 1 100.1 Front Casing Bushing Steel Drain Plate Wave Washer Spring Steel Fluororesin...
- Page 16 b b Description on Main Unit Body and Label Motor nameplate Use only the power voltage specified on the nameplate. (Follow applicable local power Pump unit (liquid feeding section) regulations when used outside of Japan.) Non-self priming type: Before operating the pump, feed priming "Arrow"...
-
Page 17: Pump Operation
PUMP OPERATION 1. Handling Instructions ...... 16 2. Installation ........19 3. Piping ..........20 4. Wiring ..........24 5. Operation Step ........ 25 - 15 -... -
Page 18: Handling Instructions
1. Handling Instructions (Observe all the following instructions to prevent injuries and accidents.) Warning Do not operate the pump for the circulation of hazardous mediums (such as explosive, combustible, flammable, or toxic substances, as well as corrosive or irritating substances considered harmful to human health). Caution Read the following information prior to installing the pump. - Page 19 No remodeling Never try to remodel the pump. This may cause a serious accident or damage. No disassembly or repair Users are allowed to disassemble and repair the pump to the degree of the given description in "Disassembly and Assembly" in this manual. No dry running operation Dry operation of the pump (pump operation without liquid inside) may cause damage to the pump internally.
- Page 20 [12] Tolerable pressure and temperature limit • Maximum pressure resistance Maximum pressure V type (PVdF) kgf/cm The table on the left shows the maximum pressure resistance of each model. Take care that the discharge E type (ETFE) pressure does not exceed the maximum pressure P type (PFA) resistance.
-
Page 21: Installation
* The lift head depends upon the liquid properties, temperature, and length of the suction piping. For details of the setup, consult IWAKI or your dealer. Indoor and outdoor use The pump can be operated either indoors or outdoors. -
Page 22: Piping
3. Piping Tightening torque for piping flange of pump. Recommended bolt size for piping flange is M16 and tightening torque is 78.4N·m. (In the case of steel flange with rubber gasket.) Load of piping and momentum of piping for MDE The permissible stress and moment applicable to pump connection arrangement are as shown below. - Page 23 Example of piping Discharge pipe (Support the pump to keep the (11) Suction pipe (pipe diameter: D) pump free of piping load.) (The horizontal section should be as short as Valve possible and there should be an ascending Check valve gradient of 1/100 toward the pump.) Pressure gauge (12) Pipe support...
- Page 24 b b Suction piping The suction pipe should employ the flooded suction method if possible. The shortest pipe possible, with the minimum number of bends, should be used. Arrange a proper support under the suction pipe such as an expansion joint or the like so that the weight and thermal stress of the pipe are not applied to the pump. Attach the coupling on the suction pipe carefully so as not to allow air inside the line.
- Page 25 If the diameters of the pump suction port and the suction pipe are different, use an eccentric reducer pipe. Connect the eccentric reducer pipe so that the upper surface is level. In any case, never use a suction pipe with a diameter smaller than that of the suction port.
-
Page 26: Wiring
It is recommended that a gate valve be installed on the discharge pipe for the adjustment of discharge volume and for the prevention of overload onto the motor. When installing both a check valve and a gate valve, the check valve should be positioned between the pump and the gate valve. Do not fail to install a pressure gauge on the discharge piping. -
Page 27: Operation Step
5. Operation Step b b Operation instructions Never operate the pump dry or with the suction-side valve (gate valve) closed. Otherwise, the inside of the pump will be damaged. In the event of cavitation, stop the pump within a minute. In addition, do not continue pump operation with air mixed into the suction side. - Page 28 [10] Sound generated by pump The level of sound generated by each type of pump is shown in the table. Arrange muffling measures in accordance with the sound level. The procedure for sound measurement conforms to the EN 31201 (ISO11201). (dB) Model MDE32...
- Page 29 In this case, contact your IWAKI dealer. • Turn on the power and start the pump. Then, adjust the • Open valve carefully while paying attention to ampere discharge pressure and discharge volume.
- Page 30 Check/Operation Step Remarks • Close discharge valve gradually. • Do not cause sudden closure with solenoid valve, etc., otherwise pump may be destroyed by water hammer action which is likely in case of long discharge piping. • Turn off the power and stop pump operation. •...
-
Page 31: Maintenance
MAINTENANCE 1. Causes of Trouble and Troubleshooting ......30 2. Maintenance and Inspection ..33 3. Spare Parts ........36 4. Disassembly and Assembly .... 37 - 29 -... -
Page 32: And Troubleshooting
1. Causes of Trouble and Troubleshooting Refer to "1 causes of Trouble and Troubleshooting" Consult supplier for more information. If you find any troubles, turn off the power supply immediately. Symptom on pump Problem Causes Inspection and Measures When Discharge When Discharge Valve is Closed Valve is Opened... - Page 33 Symptom Inspection and Measures Problem Causes When Discharge When Discharge Valve is Closed Valve is Opened a Air is trapped in suction K Inspect setup condition of Pointer of vacuum gauge pipe. suction pipe and modify it if indicates necessary. extraordinarily high value.
- Page 34 Symptom Inspection and Measures Problem Cause When Discharge When Discharge Valve is Closed Valve is Opened a Voltage is lowered. K Check whether the voltage and frequency levels are adequate. a Overload. K Check whether the specific gravity and viscosity of liquid Motor is are adequate.
-
Page 35: Maintenance And Inspection
When inspection, overhauling, or repair work is necessary, stop the pump operation and contact the supplier. The overhauling and repair work for IWAKI pumps must be performed by qualified personnel who have been trained. User’s failure to observe this instruction exempts IWAKI from the responsibility for personal injury or damage to the equipment or facility which result from its misuse. - Page 36 Inspection Timing Part Name Check Points a Are there slide-scratches? Drive magnet unit a Is housing fixed normally? Is hex socket set screw loose? a Are inner perimeter of magnet and motor shaft coaxial? (Max. eccentricity: 1/l0 mm) a Are there slide-scratches? Rear casing, a Are there cracks on liquid end part? Rear casing cover...
- Page 37 b b Wear limits of bearing and sleeve Unit: mm Model Dimension Part Name Upon Replacement Inner diameter (I.D) Bearing Thrust face-difference Outer diameter (O.D) Sleeve Thrust face-difference Note: If the difference between I.D of the bearing and O.D of the sleeve exceeds 1mm, replace either the bearing or the sleeve, whichever is worn out, with a new one regardless of the value specified in the table.
-
Page 38: Spare Parts
Name of part and part number (in accordance with the drawings in this instruction manual) w Pump model number and manufacturing number (as indicated on the pump nameplate) e Drawing number if you have received the IWAKI-approved drawing b b MDE Type Part Number List... -
Page 39: Disassembly And Assembly
4. Disassembly and Assembly (Flange mounted Motor type) Caution • Since the magnet used in the pump is very powerful, be careful not to get your fingers caught between the elements during the disassembly and assembly processes. Also, pay attention to prevent metal pieces or metal powder from adhering onto the pump. •... - Page 40 [4] Push a flat-head screwdriver into the engagement between the split plate (337) and the front casing (100.1) to open the jointed section. In this step, be careful not to damage the seal surface and gasket (400.1). [5] Remove the impeller (230) from the split plate and magnet capsule unit (858) by rotating it counterclockwise.
- Page 41 b b Assembly The pump should be assembled by carrying out the steps of disassembly in reverse, as described below. Pay attention to the following points. Keep the sliding and sealed parts clean so that they are free of dust or scratches. When assembling these parts, be sure to attach them in the correct positions.
- Page 42 [1] Install the split plate from the spindle side of the magnet capsule unit (859). Be careful not to damage the sleeve or the sliding section of the bearing. Next, attach the O ring (412) to the magnet capsule unit (859) and after applying a proper quantity (just enough so as not to drip) of adhesive to the threaded portion (three peripheral threads in the threaded portion of the...
- Page 43 [3] Install the rear casing cover (159) and rear casing (158) onto the bracket (330). Next, insert the gasket (400.2) to be fixed on the front casing side. ◊ * Previously fit the bolt M12 100 provided for the bracket into it fully to its depth. If this bolt is not used, the magnetic capsule is abruptly attracted by the virtue of magnet and it sometimes causes ceramic and plastic the part to be broken.
- Page 44 4. Disassembly and Assembly (Foot mounted motor type) Caution • Since the magnet used in the pump is very powerful, be careful not to get your fingers caught between the elements during the disassembly and assembly processes. Also, pay attention to prevent metal pieces or metal powder from adhering onto the pump. •...
- Page 45 [4] Screw the two attached bolts (size is M12◊100) from the motor side through the screw hole on the bracket (330) to push out the split plate (337) so that the plate will be separated from the bracket section. * Turn the screws alternately. If the split plate (337) has been sufficiently driven out, hold the split plate by hand and pull it toward the rear.
- Page 46 b b Assembly The pump should be assembled by carrying out the steps of disassembly in reverse, as described below. Pay attention to the following points. Keep the sliding and sealed parts clean so that they are free of dust or scratches. When assembling these parts, be sure to attach them in the correct positions.
- Page 47 [1] Install the split plate from the spindle side of the magnet capsule unit (859). Be careful not to damage the sleeve or the sliding section of the bearing. Next, attach the O ring (412) to the magnet capsule unit (859) and after applying a proper quantity (just enough so as not to drip) of adhesive to the threaded portion (three peripheral threads in the threaded portion of the...
- Page 48 [4] Direct the bracket precisely vertical to the front casing on the base and install it along the stud bolt (902). Loosen the attached bolts (M12◊100) alternately to pull the bracket slowly backward, to install it finally onto the front casing. * Note that the magnetic force of the magnet capsule is very strong.
- Page 49 ( )Country codes IWAKI CO.,LTD. 6-6 Kanda-Sudacho 2-chome Chiyoda-ku Tokyo 101-8558 Japan TEL:(81)3 3254 2935 FAX:3 3252 8892(http://www.iwaki-pumps.co.jp/) Germany : IWAKI EUROPE GmbH TEL : (49)2154 9254 0 FAX:2154 1028 Singapore : IWAKI Singapore Pte. Ltd. TEL : (65)763 2744 FAX:763 2372 Italy : IWAKI Italia S.R.L.
