Worcester Greenstar Camray External 12/18 User Instructions

Worcester Greenstar Camray External 12/18 User Instructions

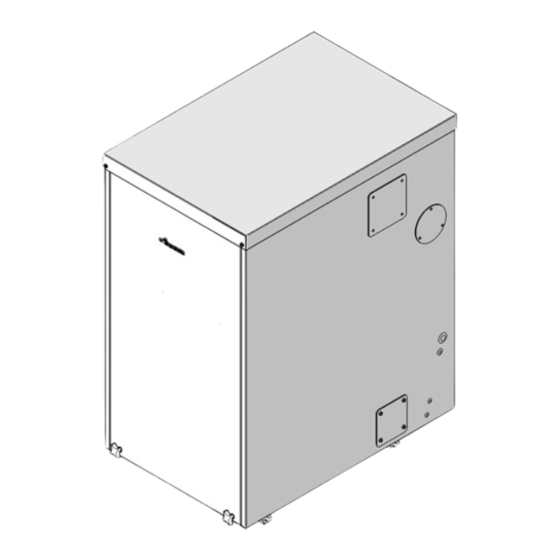

External oil fired condensing boiler using balanced flue system for fully pumped open vent or sealed central heating systems and domestic hot water water cylinders
Hide thumbs Also See for Greenstar Camray External 12/18:
Table of Contents

Advertisement

Quick Links

See also: Instruction Manual

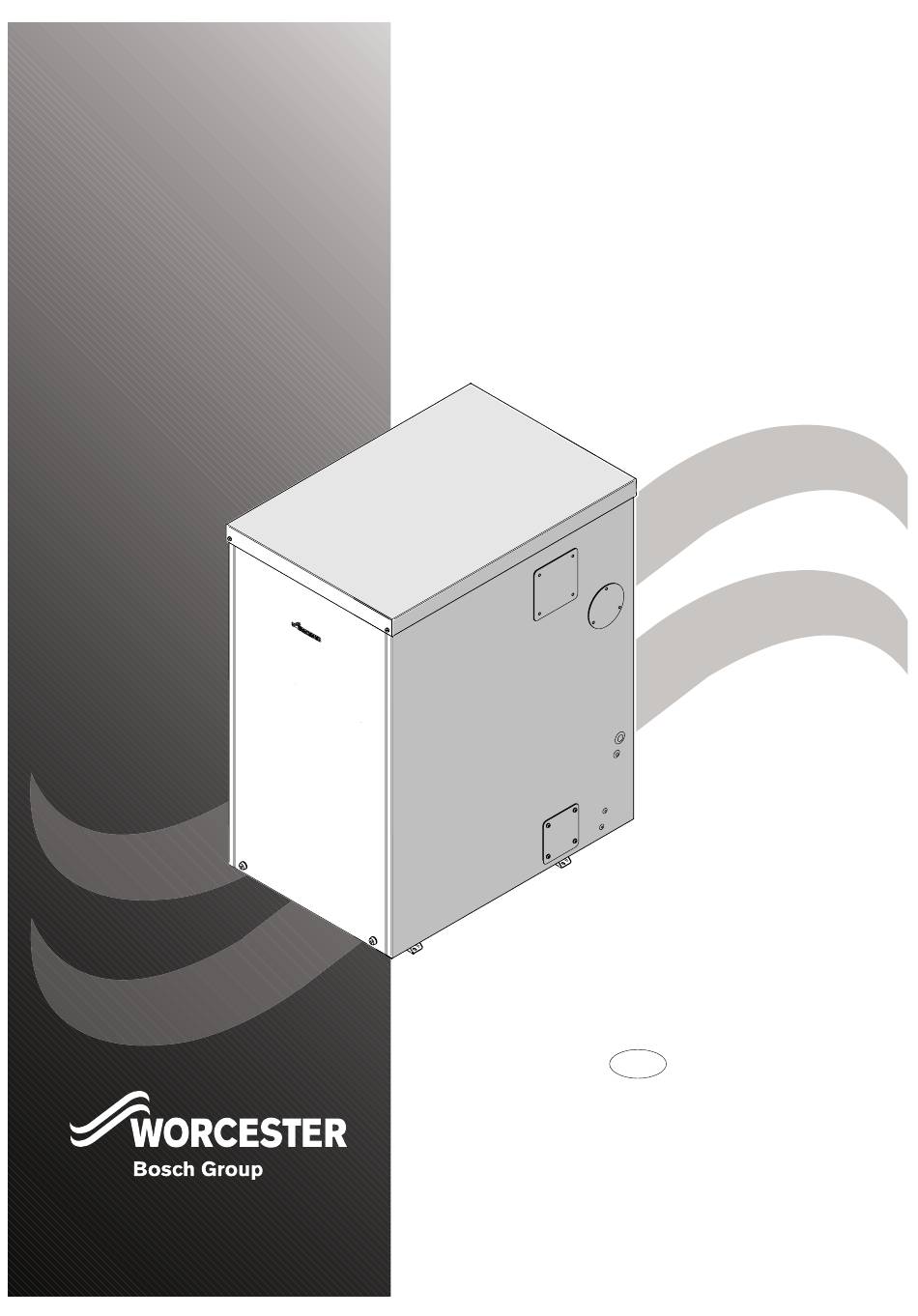

GREENSTAR CAMRAY EXTERNAL
EXTERNAL OIL FIRED CONDENSING BOILER
USING BALANCED FLUE SYSTEM
FOR FULLY PUMPED OPEN VENT OR SEALED CENTRAL HEATING SYSTEMS AND
DOMESTIC HOT WATER WATER CYLINDERS
For use with the following Greenstar oil fired appliances:
Greenstar Camray External 12/18, 18/25, 25/32
THE APPLIANCE IS FOR USE WITH KEROSENE
THE APPLIANCE IS FOR USE WITH KEROSENE
(28 SECOND OIL) ONLY
(28 SECOND OIL) ONLY
USER INSTRUCTIONS
& CUSTOMER CARE GUIDE
GB

Advertisement

Table of Contents
loading

Related Manuals for Worcester Greenstar Camray External 12/18

Summary of Contents for Worcester Greenstar Camray External 12/18

  • Page 1 FOR FULLY PUMPED OPEN VENT OR SEALED CENTRAL HEATING SYSTEMS AND DOMESTIC HOT WATER WATER CYLINDERS For use with the following Greenstar oil fired appliances: Greenstar Camray External 12/18, 18/25, 25/32 THE APPLIANCE IS FOR USE WITH KEROSENE THE APPLIANCE IS FOR USE WITH KEROSENE...
  • Page 2 FLUE TERMINAL GUARDS: Petroleum Industry. WORCESTER, BOSCH GROUP OIL FIRING TECHNICAL ASSOCIATION: OFTEC 0845 6585080 www.oftec.org GREENSTAR CAMRAY EXTERNAL 12/18 - 18/25 - 25/32 USER INSTRUCTIONS & USER INSTRUCTIONS & 8 716 112 711b (09.07) CUSTOMER CARE GUIDE CUSTOMER CARE GUIDE...

  • Page 3: Table Of Contents

    Controlling central heating Frost protection Fault conditions ENERGY SAVING TIPS ON ENERGY SAVING 10-11 MAINTENANCE MAINTAINING YOUR APPLIANCE FAULT FINDING FAULT OR BREAKDOWN GUARANTEE YOUR GUARANTEE GUARANTEE REGISTRATION GREENSTAR CAMRAY EXTERNAL 12/18 - 18/25 - 25/32 CONTENTS 8 716 112 711b (09.07)

  • Page 4: Safety Precautions

    SAFETY PRECAUTIONS OIL SMELLS, LEAKS OR FUMES FROM THE This appliance is suitable for use with kerosene only, no other fuel must be APPLIANCE: used. Extinguish any naked flames. Open windows and doors. SERVICING: Switch off the appliance electricity supply. You must have the system regularly Isolate the fuel supply to the boiler.

  • Page 5: Excellence Comes As Standard

    To find out more about Worcester, Bosch Group, use the 'Contact Information' shown on the inside front cover. GREENSTAR CAMRAY EXTERNAL 12/18 - 18/25 - 25/32 EXCELLENCE COMES AS STANDARD 8 716 112 711b (09.07)

  • Page 6: General Information

    1. The boilers integral pressure gauge should be thermostat is located, should be un-controlled visible from the filling link. and must be left open. GREENSTAR CAMRAY EXTERNAL 12/18 - 18/25 - 25/32 GENERAL INFORMATION 8 716 112 711b (09.07)
  • Page 7 *See installation manual for further details. 2500mm* The same applies for right hand flue FRONT installation where right and left 600mm clearances are mirrored. GREENSTAR CAMRAY EXTERNAL 12/18 - 18/25 - 25/32 GENERAL INFORMATION 8 716 112 711b (09.07)

  • Page 8: Controls

    The Lockout Reset Indicator/ Button (F) is located on the burner control box which situated on the burner at the base of the appliance. GREENSTAR CAMRAY EXTERNAL 12/18 - 18/25 - 25/32 CONTROLS 8 716 112 711b (09.07)

  • Page 9: Operating The Appliance

    Turn the room thermostat to the temperature required. Set thermostatic radiator valves to the required temperature for each room. GREENSTAR CAMRAY EXTERNAL 12/18 - 18/25 - 25/32 OPERATING THE APPLIANCE 8 716 112 711b (09.07)

  • Page 10: Frost Protection

    In the unlikely event that there is no hot water or heating, remove the front panel and check for lockout or other fault conditions. Check page 9 for fault conditions. GREENSTAR CAMRAY EXTERNAL 12/18 - 18/25 - 25/32 OPERATING THE APPLIANCE 8 716 112 711b (09.07)

  • Page 11: Fault Conditions

    Ensure that the Service switch is in Boiler mode. service If there is power supply to the boiler contact flue boiler reset reset GREENSTAR CAMRAY EXTERNAL your service engineer for advice. GREENSTAR CAMRAY EXTERNAL 12/18 - 18/25 - 25/32 OPERATING THE APPLIANCE 8 716 112 711b (09.07)

  • Page 12: Tips On Energy Saving

    Warning: do not block or seal any air vents that are installed to ensure the central heating boiler (or other appliance) operates safely. GREENSTAR CAMRAY EXTERNAL 12/18 - 18/25 - 25/32 TIPS ON ENERGY SAVING 8 716 112 711b (09.07)

  • Page 13: Tips On Energy Saving

    If you decide to turn off radiators in unused rooms, spare bedrooms etc., you may experience slightly lower room temperatures in rooms adjacent to unheated rooms. GREENSTAR CAMRAY EXTERNAL 12/18 - 18/25 - 25/32 TIPS ON ENERGY SAVING 8 716 112 711b (09.07)

  • Page 14: Maintaining Your Appliance

    Do not obstruct the flue outlet or the air inlet. Do not pressure wash or steam clean the appliance or its cabinet. To clean the cabinet wipe down with soapy water. GREENSTAR CAMRAY EXTERNAL 12/18 - 18/25 - 25/32 MAINTAINING YOUR APPLIANCE 8 716 112 711b (09.07)

  • Page 15: Fault Finding

    Check setting temperature set too low Hot water not in timed Check programmer period on the programmer settings Boiler temperature control Check setting set too low GREENSTAR CAMRAY EXTERNAL 12/18 - 18/25 - 25/32 FAULT FINDING 8 716 112 711b (09.07)

  • Page 16: Fault Or Breakdown

    (see inside front cover for details). Your service administrator will arrange for an Engineer to call with the minimum of delay. Under normal GREENSTAR CAMRAY EXTERNAL 12/18 - 18/25 - 25/32 FAULT OR BREAKDOWN 8 716 112 711b (09.07)

  • Page 17: Your Guarantee

    Great Britain. This guarantee is given in addition to all your normal statutory rights. Worcester, Bosch Group is a trading name of BBT Thermotechnology UK Ltd. GREENSTAR CAMRAY EXTERNAL 12/18 - 18/25 - 25/32 YOUR GUARANTEE 8 716 112 711b (09.07)

  • Page 18: Guarantee Registration

    This does not affect your statutory rights. For your own record: Model Serial No. (See identity label inside appliance casing) Type / size Date of installation Installer details GREENSTAR CAMRAY EXTERNAL 12/18 - 18/25 - 25/32 GUARANTEE REGISTRATION 8 716 112 711b (09.07)
  • Page 19 NOTES GREENSTAR CAMRAY EXTERNAL 12/18 - 18/25 - 25/32 NOTES 8 716 112 711b (09.07)
  • Page 20 CUSTOMER CARE GUIDE EXCELLENCE COMES AS STANDARD Worcester, Bosch Group Cotswold Way, Warndon, Worcester WR4 9SW. Tel. 01905 754624 Fax. 01905 754619 www.worcester-bosch.co.uk Worcester, Bosch Group is a trading name of BBT Thermotechnology UK Ltd. 8 716 112 711b (09.07)
