Elesa DD51-E Instructions For Use
Direct drive electronic position indicators
Hide thumbs
Also See for DD51-E:
- Instructions for use manual (31 pages) ,
- Operating instructions manual (30 pages) ,
- Operating instruction (26 pages)
Related Manuals for Elesa DD51-E
Summary of Contents for Elesa DD51-E

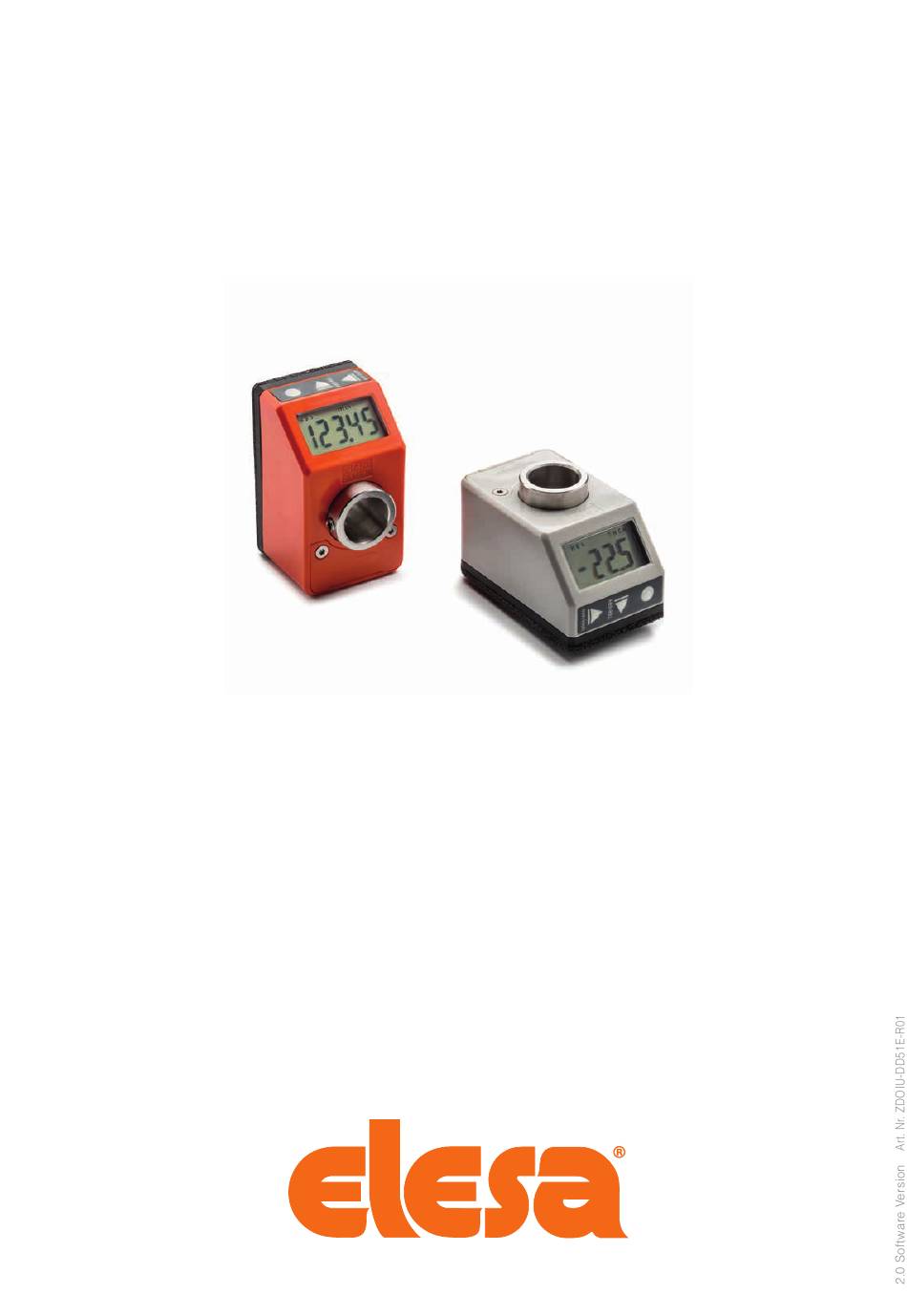

- Page 1 DD51-E Direct drive electronic position indicators INSTRUCTIONS FOR USE ELESA S.p.A. Via Pompei, 29 20900 Monza (MB) Italia Tel. +39 039 2811.1 Fax +39 039 836351 info@elesa.com • • • •...
- Page 2 Elesa sales office. 2. System description DD51-E position indicators, with battery power supply, can be used on 5. Symbols on the display passing through shafts in any position to provide the reading of the absolute or incremental positioning of a machine component.
-
Page 3: Operating Mode
DD51-E Direct drive electronic position indicators 7. Operating mode 0 _ 0 _ _ It is possible to change the function of the keys 7.1 Absolute / incremental measuring mode selection combination by setting the parameter 0_0__ Press the key to select the absolute or incremental measuring mode. - Page 4 DD51-E Direct drive electronic position indicators 8. Programming mode 8.2 Programming parameters Press the key for 3 seconds Press the key for 3 seconds to enter the programming mode. Depending Enter the password 22011 (only if PASS = On ) on the setting of PASS parameter, the system may require you to enter a password.
- Page 5 DD51-E Direct drive electronic position indicators The available parameters and their descriptions are listed in the following table. Available Standard Available Standard Parameter Description Parameter Description options value options value Rotation Setting of --o clockwise YES : the parameters are set to the...
