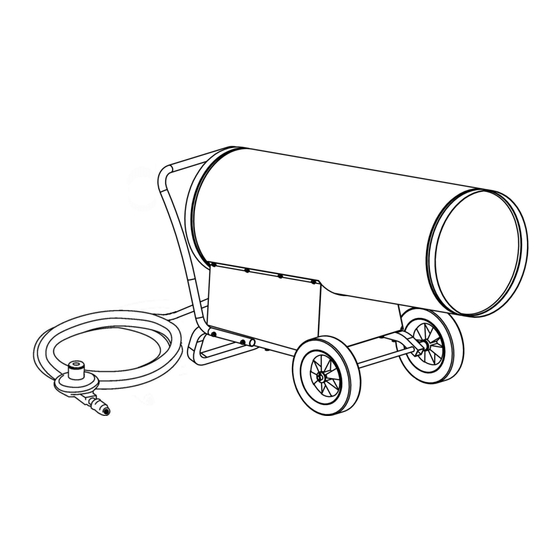

Propane gas heater

Advertisement

PROPANE GAS HEATER
MODEL NO: DEVIL 4000
PART NO: 6926150
OPERATION & MAINTENANCE
INSTRUCTIONS
ORIGINAL INSTRUCTIONS
GC0618 - ISS 4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DEVIL 4000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Clarke DEVIL 4000

  • Page 1 PROPANE GAS HEATER MODEL NO: DEVIL 4000 PART NO: 6926150 OPERATION & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS GC0618 - ISS 4...
  • Page 2: Function And Operating Parameters

    INTRODUCTION Thank you for purchasing this CLARKE product. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. This is a forced air heater meaning that a blower or fan pushes the air through the heater.
  • Page 3: General Safety Precautions

    GENERAL SAFETY PRECAUTIONS 9. For indoor use only in well Read, and make sure you fully ventilated areas. understand the following precautions and the hazards associated with this 10. If at any time gas odour is type of equipment. detected, IMMEDIATELY STOP 1.
  • Page 4: Minimum Fresh Air Opening Requirements

    MINIMUM FRESH AIR OPENING REQUIREMENTS • Minimum ventilation: 3.5 • Do not use in un-ventilated areas. • The flow of combustion and ventilation air must not be obstructed. MINIMUM CLEARANCES FROM COMBUSTIBLES Outlet 8 Ft 3 Ft Sides 2 Ft Rear 2 Ft RISKS OF CARBON MONOXIDE POISONING...
  • Page 5: Electrical Connections

    ELECTRICAL CONNECTIONS WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS SUPPLY. Connect the mains lead to a standard, 230 Volt (50Hz) electrical supply through an approved BS1363 plug fitted with a BS1362 13 amp fuse. If the plug has to be changed because of damage, it must be removed and a replacement fitted, following the wiring instructions shown below.
  • Page 6: Propane Gas Supply

    PROPANE GAS SUPPLY WARNING: THE FITTING AND CHANGING OF THE GAS CYLINDERS MUST BE CARRIED OUT IN A FLAME FREE ATMOSPHERE. WARNING: YOU SHOULD ONLY USE PROPANE GAS CYLINDERS AVAILABLE FROM BUILDERS MERCHANTS OR GAS SUPPLIERS. This portable, direct-fired gas heater is designed to give safe, efficient and reliable operation, and is for use with propane gas only.
  • Page 7 ASSEMBLY 1. Stand the heater on end as 2. Attach the lower frame and shown. We recommend the help secure using six of the machine of an assistant to lift and steady screws provided. the heater during assembly. 3. Attach the handle to the lower 4.
  • Page 8: Size And Capacity Of Propane Cylinders

    PREPARATION LOCATION • Position the heater at a safe distance from combustible materials. • This heater must not be placed on wooden floors or other combustible materials. • When used, the heater should rest on suitable insulating material at least 1 inch thick and extending 3 ft or more beyond the heater in all directions.
  • Page 9: Heater Shut Down

    OPERATING INSTRUCTIONS WARNING: BEFORE STARTING THE HEATER, YOU MUST ENSURE THAT THE MINIMUM VENTILATION REQUIREMENTS ARE OBSERVED TO AVOID THE RISK OF CARBON MONOXIDE POISONING. HEATER START UP 1. Open the propane supply valve on the propane tank(s) slowly. • If not opened slowly, the excess-flow check valve on the propane tank will stop the gas flow.
  • Page 10: Maintenance, Storage And Servicing

    MAINTENANCE, STORAGE AND SERVICING WARNING: TO PREVENT PERSONAL INJURY, UNPLUG THE HEATER FROM THE MAINS SUPPLY BEFORE SERVICING. MAINTENANCE AND STORAGE The heater should be inspected at least annually by a qualified person. 2. Before each use, check the soft “0” ring seat at the bullnose of the POL fitting.
  • Page 11: Specifications

    SPECIFICATIONS Model DEVIL 4000 Gas Type Propane BTU Rating 400,000 Maximum Pressure Bottle Pressure Minimum Pressure 1.4 Bar Regulator Output 20 PSIG (0.14MPa) Electrical Input 220-240V, 50Hz Ignition Direct Spark Primary Flame Control Solid State 10-15 Sec timing Operating Temperature Range...
  • Page 12: Exploded View

    EXPLODED VIEW Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
  • Page 13: Parts List

    PARTS LIST Outer Shell Terminal Board Middle Cylinder Burner,- Mixing Tube Orifice (2.35 mm port) Thermostat Knob Flame Holder Assembly Burn Rate Adjustment Knob High Limit Switch Control Box End Panel Screw Control Box Bottom Panel Handle Motor Mounting Handle Mounting Clips Fitting, Plug '14 MPT Fan Spacer, Nylon Inlet Filter Screen...
  • Page 14: Wiring Diagram

    WIRING DIAGRAM Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
  • Page 15: Declaration Of Conformity

    DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
