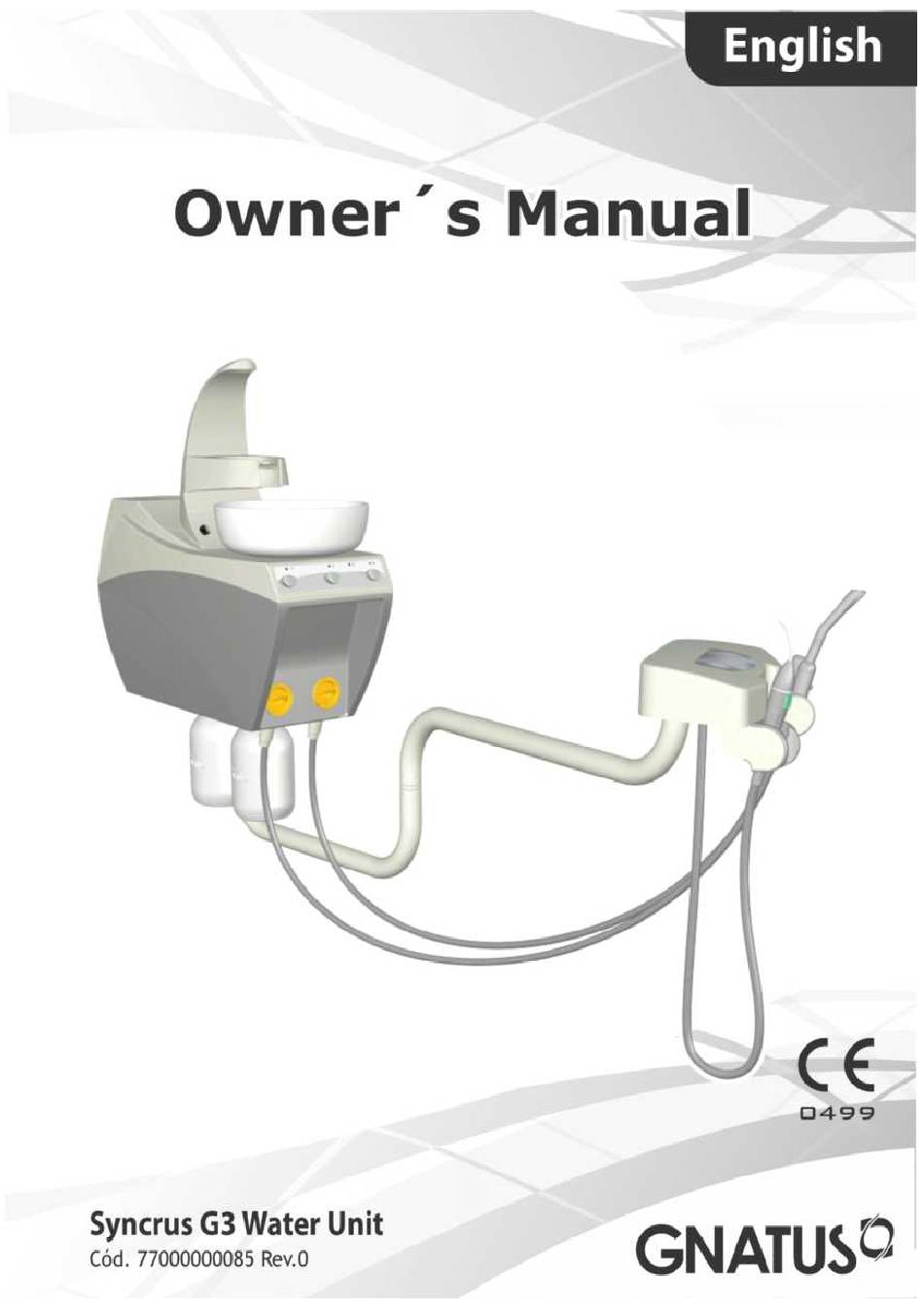

GNATUS Syncrus G3 Owner's Manual
  1. Manuals
  2. Brands
  3. GNATUS Manuals
  4. Medical Equipment
  5. Syncrus G3
  6. Owner's manual

GNATUS Syncrus G3 Owner's Manual

Water unit
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Syncrus G3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GNATUS Syncrus G3

Summary of Contents for GNATUS Syncrus G3

  • Page 2: Presentation Of Manual

    PRESENTATION OF MANUAL INSTRUCTIONS FOR USE Technical Name: Odontological cuspidor Brand: Gnatus Trade Name: Syncrus G3 Water Unit Manufacturer/ Distribuitor: GNATUS - EQUIPAMENTOS MÉDICO-ODONTOLÓGICOS LTDA. Rod. Abrão Assed , Km 53+450m - Cx. Postal 782 CEP 14097-500 Ribeirão Preto - S.P. - Brasil Fone +55 (16) 2102-5000 - Fax +55 (16) 2102-5001 C.N.P.J.

  • Page 3: Table Of Contents

    INDEX PRESENTATION OF MANUAL ................02 IDENTIFICATION OF EQUIPMENT ..............04 - Indication of Equipment .................. 04 - Principles and fundamentals applied to the product functioning ......04 - Description of Equipment ................. 05 MODULES, ACCESSORIES, OPTIONS AND MATERIALS OF CONSUMPTION ..07 TECHNICAL SPECIFICATIONS .................

  • Page 4: Identification Of Equipment

    IDENTIFICATION OF EQUIPMENT Dear Customer Congratulations. You have made a good choice when you decided to buy a GNATUS QUALITY product comparable to the best products available in the World. This manual is a general presentation of your product and it will give you important details to help you to solve possible problems.

  • Page 5: Description Of Equipment

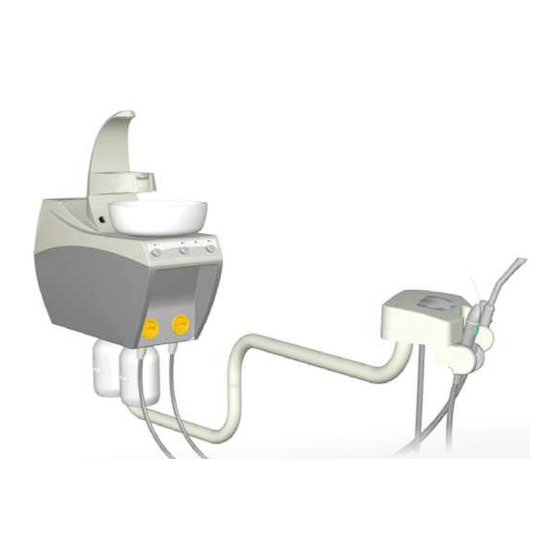

    IDENTIFICATION OF EQUIPMENT Description of Equipment Water unit for dental use, for auxiliary works as water supply source and waste collection from spitter bowl and sucking devices; ambidextrous (serves right and left-handed users), attached to the chair, * actuated by optical sensor. The frame is manufactured with steel structure, ABS injected body with anti-UV protection.
  • Page 6 IDENTIFICATION OF EQUIPMENT - Shows the elapsed time and the end of the operation. - No special optical filters. - Low power consumption. - Low cost of replacement. The cold light does not emit heat as conventional bulbs - Low temperature light polymerizes the resin without damaging the tooth pulp and prevents thermal expansion problems.

  • Page 7: Modules, Accessories, Options And Materials Of Consumption

    MODULES, ACCESSORIES, OPTIONS AND MATERIALS OF CONSUMPTION The contents of this page are of an informative nature, the equipment being able to differ from that illustrated. So, upon acquiring the product check the technical compatibilty between equipment, coupling and accessories. 21 22 23 Unit without coupling arm reach "Tips support embedded in the unit”...
  • Page 8 MODULES, ACCESSORIES, OPTIONS AND MATERIALS OF CONSUMPTION...
  • Page 9 MODULES, ACCESSORIES, OPTIONS AND MATERIALS OF CONSUMPTION 01. Terminals: Borden terminal (TB) Midwest Terminal (TM) Fiber Optic Terminal (FO) The drawing illustrates Electric micro motor Terminal (MME) all optional items (page 08 ). T here fo re , you r 02.
  • Page 10 MODULES, ACCESSORIES, OPTIONS AND MATERIALS OF CONSUMPTION Units may be made composed by : Optional Acronyms 1 BV sucker 1 Venturi sucker 1 Venturi sucker + 1 BV sucker 2 TV 2 Venturi suckers 2 BV suckers 2T BV 1 Syringe + 1 Venturi sucker S TV 1 Syringe + 1 BV sucker S TBV...

  • Page 11: Technical Specifications

    TECHNICAL SPECIFICATIONS Technical features of the Delivery Unit and its accessories General Classification of Equipment as per ANVISA: Class II Classification of Equipment as per standard IEC 60601-1: Protection against Electric Shock - Type B and Class I Equipment (IEC 60601-1) Power Supply Inlet air pressure 60-80 PSI ±2...

  • Page 12: Standards Applied

    TECHNICAL SPECIFICATIONS Wavelength 440nm - 460nm Timer 90 seconds Timer alarm sound alarm with beep every 10 seconds and 4 beeps at the end of the cycle Activation Through the hand-piece button Light conductor Made out of special polymer, rotational, removable and reuse sable. Hand-piece body ABS injected The materials used to produce the equipment are Biocompatible.

  • Page 13: Electromagnetic Emissions

    TECHNICAL SPECIFICATIONS Electromagnetic Emissions Guidelines and manufacturer's declaration - electromagnetic immunity equipment is made to be used in the electromagnetic environments specified below. The client or the user of the equipment must be sure that it is used in such environment. Immunity ABNT test level Level of...
  • Page 14 TECHNICAL SPECIFICATIONS Electromagnetic Emissions Guidelines and manufacturer's declaration - electromagnetic immunity equipment is made to be used in the electromagnetic environments specified below. The client or the user of the equipment must be sure that it is used in such environment. Immunity ABNT Test level Level of...
  • Page 15 TECHNICAL SPECIFICATIONS Electromagnetic Emissions Recommended distances between portable and mobile RF communication equipments and the equipment equipment is made to be used in an electromagnetic environment in which RF disturbances are controlled. The client or the user of the equipment may help preventing electromagnetic interference by keeping a minimal distance between mobile and portable RF communication equipment (transmitters) and the...

  • Page 16: Dimensions

    TECHNICAL SPECIFICATIONS Dimensions (mm) Equipment with coupling "reach arm"...
  • Page 17 TECHNICAL SPECIFICATIONS Dimensions (mm) Equipment without coupling "reach arm "...

  • Page 18: Packing Symbols

    TECHNICAL SPECIFICATIONS Packing symbols It determines the maximum Packing to be transported and quantity of boxes which can be / or stored avoiding humidity, stacked during transportation rains and wet floor. and storage “as per packaging”. The packing must be stored and Packing to be transported and / or transported away from direct stored with the harrows up.

  • Page 19: Content Of Accessible And Non-Accessible Demarcations

    Maintenance of the equipment that can be found with the authorized Gnatus technician. - This equipment shall only be able to be unpacked and installed by a Gnatus authorized technician, under penalty of losing the warranty, as only (s)he has the information, suitable tools and training required to execute this task.

  • Page 20: Equipment Operation

    "optical sensor set" on both sides, without loss of functionality in any case. At the time of installation by authorized technician from Gnatus, inform desired position (right or left handed). He will make necessary adjustments.
  • Page 21 EQUIPMENT OPERATION Terminal Drive Fig.1 Progressive pedal * (fig.01.) For the operation of rotary instruments, remove support the instrument to be used, actuate on the foot control (C). Progressive pedal with water blocking system for hand pieces * (fig.02.) For the operation of rotary instruments, Fig.2 remove support the instrument to be used, actuate on the foot control (C).
  • Page 22 EQUIPMENT OPERATION Replacement of the standard of cannula coupling If there is the necessity of using the cannula (A) in the BV suctor, make the replacement of the cannula coupling, as the procedure below: • Remove the coupling (B) by unscrewing it from.
  • Page 23 EQUIPMENT OPERATION Curing Light Activation * - Select application time, press time selection button (01), which values are: 10s (standard mode), 20s, 60s, 80s and 90s. - To initiate a polymerization cycle, press the timer trigger (02), which generates a short beep every 10 seconds and a 4 beeps at the end of cycle.
  • Page 24 EQUIPMENT OPERATION Master Valve* The master valve is a safety device that aims to block / release the entry of water to the dental set. It is of utmost importance to have interrupted the water supply to the dental set in the end of the working day, which can be done through the key (ON/OFF - 04).

  • Page 25: Precautions, Restrictions And Warnings

    - Transportation and storage temperature range: -12°C to 50°C. - Ambient temperature range recommended by Gnatus +10 ° C to +35 ° C. The Equipment maintains its condition of safety and efficacy, provided that it is maintained (stored) as mentioned in this instruction of use.

  • Page 26: Recommendations For The Dental Equipment Maintenance

    - The equipment should only be operated by duly enabled and trained technicians (Dental Surgeons, Capacitated Professionals) - If any maintenance should be required, only use services of the Gnatus Authorized Technical Assistance. - The equipment has been manufactured to handle both continuous and intermittent operation;...

  • Page 27: Precautions And Warnings During The "Cleaning And Disinfection" Of Equipment

    (failures, causes and solutions). If it is not possible to resolve the problem, turn off the equipment, remove the power supply cable from the socket and contact your representative (Gnatus). Precautions to be adopted against foreseeable or uncommon...

  • Page 28: Corrective And Preventive Maintenance And Preservation

    NOTE: The registration at the Ministry of Health of the “BactSpray” is executed separately from the product described in this manual, as the “BactSpray” is not manufactured by Gnatus. Disinfection Use clean and soft cloth dampened in alcohol 70% to disinfection of the equipment.
  • Page 29 Clearing the suction system Using Vacuum Pump (BioVac II or IV): Gnatus suggests performing a daily suction of the clearance and disinfectant solution, avoiding the risk of cross contamination and increasing equipment service life. To perform the disinfection of your equipment we recommend the use of the “Sugclean”...
  • Page 30 CORRECTIVE AND PREVENTIVE MAINTENANCE AND PRESERVATION Triple syringe Only the syringe tip is autoclavable (A). The other pieces must be cleaned using a piece of cotton wool and alcohol 70% vol. Never use a hot air sterilizer. Reservoirs It’s highly recommended the cleaning of the water reservoirs, using chlorinated water solution 1:500 (as described previously).

  • Page 31: Preventive Maintenance

    For protecting your equipment, look for a Gnatus’ technical assistance for periodic reviews as preventive maintenances. Corrective Maintenance Gnatus states that the supplying of the circuits’ diagram, Part lists or any other information that permits the technical assistance by the user, can be requested, since previously agreed between the buyer and Gnatus.

  • Page 32: Unforeseen Events - Solution Of Problems

    UNFORESEEN EVENTS – SOLUTION OF PROBLEMS Upon coming across any problem in operation, follow the instructions below to check and repair the problem, and/or get in touch with your representative. Problem Probable cause Solution Water Unit - Insufficient air pressure -Adjust air flow.
  • Page 33 -Resin residues in light cable. - Clean the light cable. Bicarbonate Jet - Refer to Owner's Manual of Jet Hand (available for viewing and downloading via www.gnatus.com.br/manuais)

  • Page 34: Warranty Of Equipment

    Among the care you have to take with your equipment, the most important is regarding of the spare parts replacement. To ensure the lifetime of your device, only replace original spare parts from Gnatus. They have the assurance of the standards and technical specifications required by the Gnatus representative.
