Doohan iTango Service Manual page 21

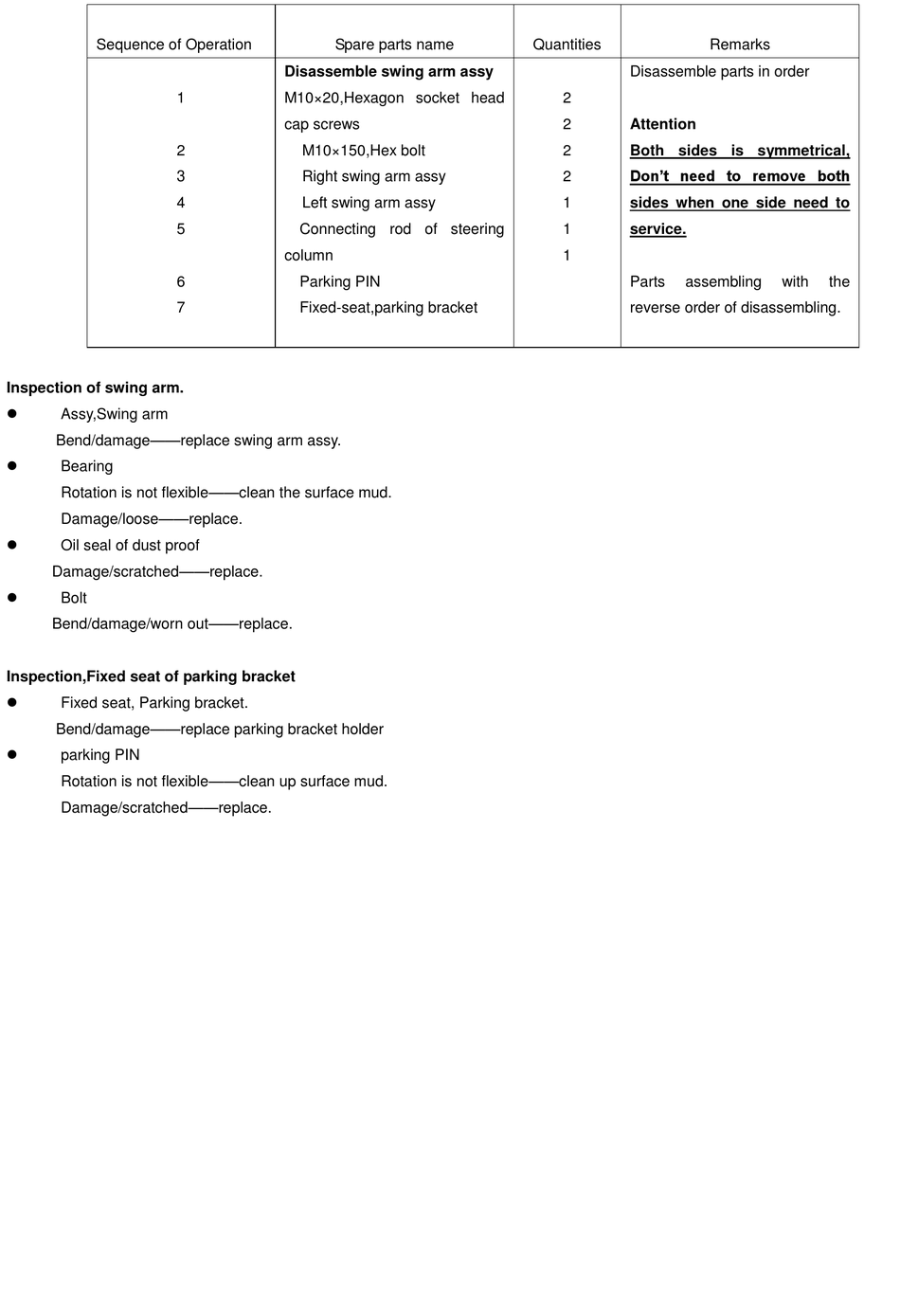

Sequence of Operation
Inspection of swing arm.
⚫
Assy,Swing arm
Bend/damage——replace swing arm assy.
⚫
Bearing
Rotation is not flexible——clean the surface mud.
Damage/loose——replace.
⚫
Oil seal of dust proof
Damage/scratched——replace.
⚫
Bolt
Bend/damage/worn out——replace.
Inspection,Fixed seat of parking bracket
⚫
Fixed seat, Parking bracket.
Bend/damage——replace parking bracket holder
⚫
parking PIN
Rotation is not flexible——clean up surface mud.
Damage/scratched——replace.
Spare parts name
Disassemble swing arm assy
1 M10×20,Hexagon socket head
cap screws
2 M10×150,Hex bolt
3 Right swing arm assy
4 Left swing arm assy
5 Connecting rod of steering
column
6 Parking PIN
7 Fixed-seat,parking bracket
Quantities
Disassemble parts in order
2
2 Attention
2 Both sides is symmetrical,
Don't need to remove both
2
1 sides when one side need to
1 service.
1
Parts assembling
reverse order of disassembling.
Remarks
with the
