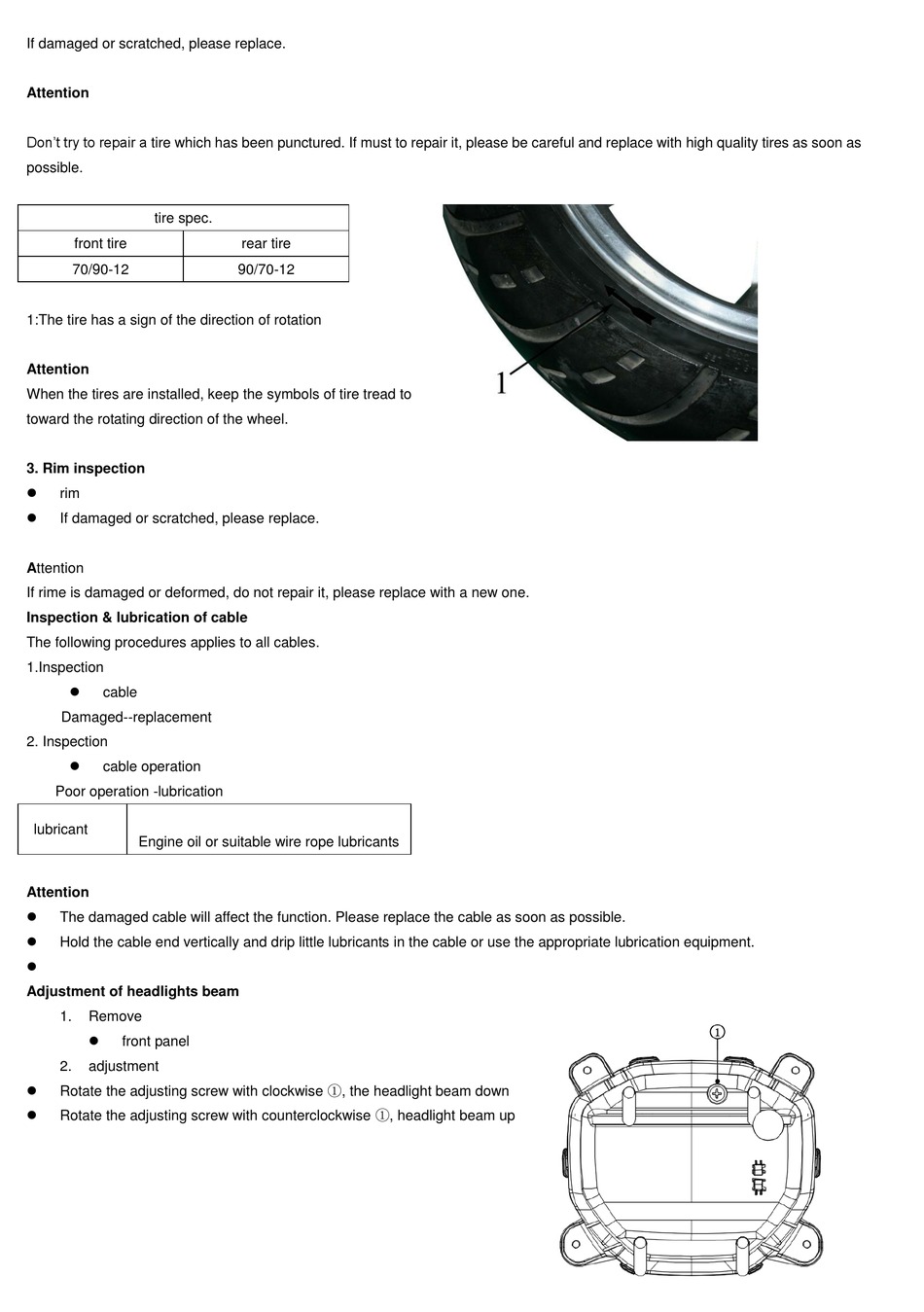

Doohan iTango Service Manual page 14

If damaged or scratched, please replace.
Attention
Don't try to repair a tire which has been punctured. If must to repair it, please be careful and replace with high quality tires as soon as
possible.
tire spec.
front tire
70/90-12
1:The tire has a sign of the direction of rotation
Attention
When the tires are installed, keep the symbols of tire tread to
toward the rotating direction of the wheel.
3. Rim inspection
⚫
rim
⚫
If damaged or scratched, please replace.
Attention
If rime is damaged or deformed, do not repair it, please replace with a new one.
Inspection & lubrication of cable
The following procedures applies to all cables.
1.Inspection
⚫
cable
Damaged--replacement
2. Inspection
⚫
cable operation
Poor operation -lubrication
lubricant
Engine oil or suitable wire rope lubricants
Attention
⚫
The damaged cable will affect the function. Please replace the cable as soon as possible.
⚫
Hold the cable end vertically and drip little lubricants in the cable or use the appropriate lubrication equipment.
⚫
Adjustment of headlights beam
1. Remove
⚫
front panel
2. adjustment
⚫
Rotate the adjusting screw with clockwise ①, the headlight beam down
⚫ Rotate the adjusting screw with counterclockwise ①, headlight beam up
rear tire
90/70-12
