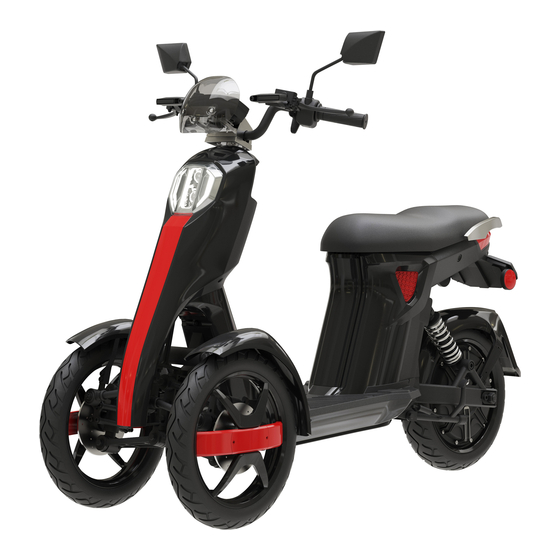

Summary of Contents for Doohan iTango
- Page 2 Dear iTango users, please detail read the user manual carefully in order to ensure safety of you and others, to ensure high performance and stable driving of iTango before driving. 1.Instructions ⚫ Please comply with the city traffic laws and regulations, you are not allowed to carry people;...
-
Page 3: Technical Parameters
2.Technical parameters: Dimension Length 1648mm Width 651mm Height 1110mm Wheelbase 1150mm Front track 460mm Main performance DH-05-10 25km/h; 74kg(not including Weight attery) speed Rated oltage DH-05-12 45km/h... - Page 4 ≤2m(20km/h) Max loading Braking 200kg ≤3.5m(30km/h) weight distance(Dry ground) Capacity 2 people Standard ≤3m(20km/h) power 1.4KWh/100km(20km/ Braking ≤4m(30km/h) consumption distance(wet ground) Frame Front shock absorber Sleeve, oil damping Rear shock absorber Sleeve, oil damping Front Tyre 70/90-12×2 Rear Tyre 90/70-12...
- Page 5 Front tire pressure 225± 10 Rear tire pressure 225± 10 Front:1.4-12 Aluminum rim Rim type(Aluminum) Rear Motor 2.15-12 BOSCH motor DH-05-10 1000W 580r/min BOSCH MOTOR Rated Power DH-05-12 1200W 580r/min BOSCH MOTOR Brake mode Disc brake Minimum ground 142mm clearance Seat Height 740mm ≤30°...
- Page 6 ≤32° Maximum steering angle Turning radius 2.50m Maximum drop height of 180mm front wheel Battery Battery type 18650 lithium battery Voltage 20AH DH-05-10 capacity 26AH DH-05-12 Charge input voltage AC 220V or 110V(optional) Charge output voltage...
- Page 7 Standard charge current 3A（iTango Classic） 5A(iTango HO) Standard charge time 50KM(25km/h) DH-05-10 Max range 50KM(45km/h),70KM(25km/h) DH-05-12 Battery weight Battery charge and 500 times discharge times Ambient temperature -20℃ to 60℃ range, battery using Ambient temperature -20℃ to 60℃...
- Page 8 range, battery storage Ambient temperature 0℃ to 45℃ range, battery charging Battery protection system Over discharge protection, short-circuit protection, temperature protection, overcharge protection, over current protection, balance protection of battery Others USB charge 5V、1A Speed meter Fuse specifications(A) Headlamp specification 12V LED...
- Page 9 Front position lamp 12V LED specification Front steering lamp 12V LED specification Rear steering lamp 12V LED specification Tail lamp specification 12V LED Licence plate lamp 12V LED specification Rear Mirror Non-circular paint mirror, M8 mirror rod 84Kg(including 1 battery)
- Page 10 3. Parts Description...
- Page 12 4.Rear mirror& wind board installation...
- Page 14 5. Remote control and keyless start button...
- Page 15 6.Roll-lock and anti-theft lock...
- Page 16 7.Dashboard and combination switch...
- Page 19 Left combination switch: ① headlamp light switch: Press the “ ”button, high beam; Press the “ ”button, low beam. ② Passing light switch: Press this button, passing light is on-state. ③ Turn signal light switch: ”, the left turning light: on, Push to Push to “...
- Page 20 Push switch to the middle position and press, the turn signal light: off, ④ Horn switch button: Press this button, whistle warning to the other vehicles. Right combination switch:...
- Page 21 ① gear switch: Smooth to functions interchange for Gear 1, 2 and reverse gear. ② headlight switch: There are three positions in the headlight switch: ： On this position, turn on the headlamp, position lights, taillights and instrument lights. ：On this position, turn on the position lights, Taillights and instrument lights.
- Page 22 Taillights, position lights and instrument lights . ③ Hi key: Smart button “Hi” is smart button of iTango for man-machine interaction. the function can be customized by yourself. You can define the smart button "Hi " function in software by using APP of Smart management.
- Page 23 8.Battery using instruction...
- Page 24 Battery power indicator light： 1.Charging state, the indicator light flashes and shows current power level All lights on and no longer flash if full charging. 2.Uncharged state, press the button of power display: ● The indicator light shows the battery power, one green light means 25% power.
- Page 25 Vehicle charging mode ●Rotate and open the charging connector of vehicles, first insert the charger plug into the charging connector of vehicles, when you hear "ka ", it means that the charger plug is connected with the connector. ●Then connect the charger plug with power socket of room, it begins charging when the indicator light turns green to red.
- Page 26 External charging mode ⚫ Lift the battery from the vehicle body and handle it carefully. ⚫ Insert the charging plug into the battery charging connector for external charging...
- Page 27 Battery service environment ⚫ Please use battery under ambient temperature between -10 and 45 degrees centigrade ⚫ Please avoid water, beverage and corrosive liquid into the battery ⚫ Please avoid the battery near the heat source, open flame, flammable and explosive gas, liquid. ⚫...
- Page 28 Battery charging environment ⚫ Please battery charging at the ambient temperature between 0 degrees to 35 degrees centigrade. ⚫ Please do not exceed 10 hours in Charging time, overcharge will shorten the service life of battery. ⚫ Do not put other articles covered on the charger or battery box for ventilation and heat dissipation when charging.
- Page 29 leakage, heating, smoking, fire or explosion if disassemble battery or maintain it personally ②When the ambient temperature is below 0 degrees centigrade, the charging function is turned off. Please battery charging above 0 degrees centigrade ③Lead to leakage, heat, smoking, fire or explosion if didn’t use the genuine charger.
- Page 30 20%-80% if possible for cycle use. ⑥Do not store the battery in the environment if temperature is higher than 40 degrees Celsius, otherwise it will cause irreversible capacity fading of the battery. ⑦At low temperatures, the capacity of lithium batteries will capacity fading in varying degrees: the available capacity for reference: -10 ℃...
- Page 31 fading of the battery inventory with fully charge and discharge in every 2 month. ⑨don’t keep the battery in the risk place of falling avoid to battery falling. Lead to leakage, heat, smoking, fire or explosion if battery falling.
-
Page 32: Troubleshooting
9.Troubleshooting Troubleshooting list Fault phenomen fault cause Solutions Turn on the 1.the battery plug is not power well connected 1.Battery charge supply, but 2.Dead Battery 2.Replace battery no power battery damaged 3.Replace fuse output 3.Fuse blow Turn the 1.Battery voltage is too 1.Battery charge power on 2.Do not hold the brake... - Page 33 handle lead to start the 3.Randle restoration accelerator power-off switch 4.According to the fault , engine is 3.Vehicle unstart code of APP to solve not start 4.Accelerator handle is not restoration 5.Dashboard fault indicator flashing 1.low battery. 1.Charger damage 2.tire pressure is not 2.check tire pressure Slow enough.
- Page 34 temperature is too low, phenomenon and the charge-discharge of the battery capacity is weaken The charger plug is not The battery Check whether the plug is well connect with the is not loose, and replace the battery socket, and the charged charger charger is damaged...
- Page 35 Fault code show on the Dashboard Enter the APP of Doohan smart management, check the fault reminding, check and understand the cause of the trouble, or to the service point for professional maintenance.
-
Page 36: Maintenance And Repair
10.Maintenance and repair In order to extend the service life of iTango, to safe and comfortable driving. Please regularly checking and maintenance the vehicle. If the vehicles disused with long time, also need to regular checking. Daily inspection and adjustment Routine check the iTango before driving in every day, don’t ignore the... - Page 37 Checking Items Check points ①stable ②smooth turning ③No axial float Handlebar and loosening 10-20mm travel for brake handle. Braking system ①normal tire pressure ② tyre wear ③ no cracks or Tyre wound...
- Page 38 Enough electric quantity to support your driving Electric Quantity based on travel planning. Operate all lamps: High beam, low beam, brake Lamps light, turn light Horn Checking whether the horn is normal working.
-
Page 39: Regular Maintenance
Regular maintenance The first maintenance should be implemented after one month or 500km based on sales date .After that, complete inspection and maintenance should be implemented with every six months or 3000km in order to keep your vehicles in the best security state and ensure safety of driver. - Page 40 Regular maintenance and inspection items Brake Wheel bearings Structural Routine Lamp Shock absorbers inspection safety and Horn Main stander performan Electric parts Steering bearings Fuse Battery checking Tyre Main harness Important Structural lubrication Control system parts inspection...
- Page 41 11. Vehicles Storage Short period storage: 1) Store the vehicle in the flat and stable position where it is a well-ventilated and dry location; 2) The battery should charge to 50% when storage in order to ensure the battery life; 3) Try to avoid vehicles exposed to sun and rain in order to avoid parts damage or aging;...
- Page 42 out the battery plug in order to eliminate electrical troubles. Long-term storage: 1) For long-term storage, please turn off and pull out the key, and then pull out the battery plug, disconnect the battery power supply circuit to prevent the battery over discharge; 2) For long-term storage, the battery should do a complete charge and discharge cycle every two months, and charge the battery to 50% electric quantity to ensure the battery life;...
- Page 43 12.Electrical schematic diagram iTango Classic...
- Page 44 HO...
