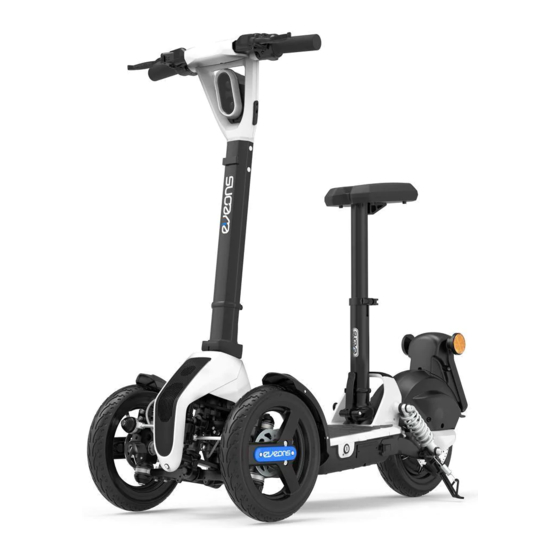

Doohan iLark User Manual
  1. Manuals
  2. Brands
  3. Doohan Manuals
  4. Scooter
  5. iLark
  6. User manual

Doohan iLark User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Please read this User's Guide carefully
and do not use the vehicle until you
have fully understood the performance
of the vehicle.。
Please keep the User's Guide in a safe
place.
User's Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the iLark and is the answer not in the manual?

Questions and answers

Related Manuals for Doohan iLark

Summary of Contents for Doohan iLark

  • Page 1 Please read this User's Guide carefully and do not use the vehicle until you have fully understood the performance of the vehicle.。 Please keep the User's Guide in a safe place. User’s Manual...
  • Page 2 Dear electric scooter (iLark) users, for the safety of you and others, and to ensure that the electric scooter (iLark) performance is excellent and stable, please read the instruction manual of this product before use. 1. Instructions for use ⚫...
  • Page 3 handlebar, saddle, saddle tube and wheel are tightened, and the locking mechanism of the folding mechanism is locked. Pay attention to the safety line of the saddle tube; check whether the brake is effective; ⚫ Please observe the city traffic regulations and do not bring people; slow rain and snow and slippery roads should slow down and increase the braking distance when braking to ensure safety.
  • Page 4 ⚫ Do not disassemble and disassemble parts by yourself. The company is not responsible for the losses caused. If you need to replace the parts, our special maintenance department can provide spare parts catalogue and spare parts. If you have any questions, please consult the after-sales service.
  • Page 5 2. The main technical parameters Measurement Width Length（mm） 1133 （mm） Wheelbase 1082 Height（mm） （mm） Front wheels distance（mm）...

  • Page 6: Main Performance

    Main performance Net weight 28 (Batteries not Capacity （kg） （person） included) Front and rear Front16/Rear12(Ba Max Loading axis assignment tteries not capacity （kg） （kg） included) Max design speed Rated voltage （km/h） （V） ≤7º Climbing ability ≤15 Brake distance (Speed...
  • Page 7 25km/h)（m） road Brake distance (Speed16km/h) ≤19 （m） road Standard power consumption 1.4/1.9 （KWh/100km(25km/h)） Frame Rear shock Sleeve, oil damping Front tire 60/80-8 Rear Tire 75/65-8 Front Tire pressure 250±10...
  • Page 8 (Kpa) Rear Tire Pressure (Kpa) 300±10 Front wheel (alloy) MT1.50-8 Rear Motor MT1.85-8 Front brake Rear brake Disk Ground Clearance（mm） Seat Height（mm） 585-807 Maximum roll angle （°） ≤31 ≤33 Max Turning Angle（°） 2.50 Turning radius（m）...
  • Page 9 Maximum distance between the front two wheels height （mm） Battery System Battery type 18650 Ternary lithium battery Voltage（V） Capacity（AH） Charging Input Voltage AC 220 or 110(optional) （V）...
  • Page 10 Charging Output Voltage 54.6 （V） Rated Charging Current （A） Standard Charging Time （H） 15AH Max Range （KM） 10AH Battery W.t. 15AH 4.2±0.2 （Kg） 10AH 3.2±0.2 charge and discharge...
  • Page 11 （times） Battery operating ambient -20 to 60 temperature range（℃） 1 month -20~60 Battery storage ambient -20~45 months temperature range （℃） -20~20 months The Charging ambient 0~45 temperature （℃） Battery protection system Undervoltage protection, short...
  • Page 12 circuit protection, temperature protection, overcharge protection, overcurrent protection, battery balance protection Others Instrument LCD instrument Fuse specification（A) 3A、 20A Front light 12V LED Starting way Remote/APP...
  • Page 13 3. Component description...
  • Page 15 4.Remotor and APP 1 Unlock button (remote control): Press the unlock button twice in succession, the whole vehicle is powered on, the unlocking is successful, and the unlock Unlock button is pressed again, the whole vehicle 在 福 is turned off. 建...
  • Page 16 1 Lock button (remote control): When you are driving, press the unlock button to turn off the power of the vehicle, press the lock button again, and the vehicle enters the anti-theft mode. 2 lock button (APP): When you are driving, press the Lock key, the voice prompts "The vehicle is locked", the whole vehicle power is turned off and enters the anti-theft mode.
  • Page 17 5.Folding mechanism Direction riser folding Step 1: Move the 1 direction riser folding wrench hoop up in the figure. Step 2: Pull the 2 direction riser folding wrench down in the figure. It can be folded down as shown in the picture.
  • Page 18 Seat riser folding Step 1: Rotate the seat riser clamp hoop to the right in the figure. Step 2: Pull the 2 direction riser folding wrench down in the figure. It can be as shown in the picture Figure 3 seat cushion riser hoop assembly open the seat to adjust up and down.
  • Page 19 6. Dashboard and combination switch...

  • Page 20: Fault Code Definition

    Fault code definition： Fault Definition cause of issue code Under voltage Battery is too low protection In case of failure, Motor and controller Hall please contact our HALL plug loose or component after-sales service protection damage department in time Phase loss Controller MOSS tube is protection broken...
  • Page 21 Left combination switch: 1 turn signal switch: When dialing " ", the left turn light is on; When dialing " ", the right turn light is on; *Note: Models with left and right turn signals are not installed This switch function is invalid. 2 horn switch button: When the switch button is pressed,...
  • Page 22 Rightcombination switch: ①Headlight dimmer switch: Press the “ ” button, high beam Press the “ ” button， low beam. When the button is in the " " position, the running light is on * Note: The basic verion have no high beam function ②Start &...
  • Page 23 7.Battery Battery indicator In the charging state, the flashing indicator light shows the current level; after the charging is full, all the indicators are on and no longer flash. In the non-charged state, press the battery display button: ● The indicator light shows the battery level, and a green light indicates 25% power.
  • Page 24 ●All indicators are always on, indicating battery failure, please call after service ●Please use the corresponding battery capacity according to the model standard configuration.。 Vehicle charging mode ●Open the body charging interface, first plug the charging plug into the body charging interface...
  • Page 25 ● Plug the charger's input plug into the room, and the charger indicator will turn from green to red to start charging. ● When the charger indicator turns from red to green, charging is completed. ●The key switch can be turned on while charging, and the meter will display the current battery level.
  • Page 26 External charging mode ● Lift the battery out of the body and handle it with care. ● Plug the charging plug into the battery charging port for external charging...
  • Page 27 Battery use environment ⚫ Use the battery at an ambient temperature of -10°C to 45° ⚫ Avoid battery water, beverages, and corrosive liquids. ⚫ Avoid placing the battery near heat, open flames, flammable or explosive gases, or liquids. ⚫ Avoid metal foreign objects entering the battery box. If the battery has odor, heat or deformation, stop using it immediately, keep away from the battery and contact the after- sales。...
  • Page 28 explode. Battery charging environment ⚫ Charge the battery at an ambient temperature of 0°C ~ 35°C. ⚫ Do not charge more than 8 hours. Overcharging will shorten the battery life. ⚫ When charging, it is strictly forbidden to cover other items on the charger and battery box for ventilation and heat dissipation.
  • Page 29 ⚫ Do not disassemble the charger yourself. If it needs to be replaced, please go to our special maintenance department for replacement. ⚫ ※note: ⚫ 1 The battery is not a user-serviceable part. If there is a malfunction, please contact the after-sales department for repairing the service. Disassembling the battery by yourself may cause leakage, heat, smoke, fire or explosion.
  • Page 30 turned off. Please charge the battery in an environment above 0° ⚫ 3 Using a non-original charger may cause the battery to leak, heat, smoke, fire or explode. ⚫ 4 If the battery is not fully charged after charging for more than 10 hours, please stop charging and contact the after-sales department to repair.
  • Page 31 battery. ⚫ 7 Under low temperature conditions, lithium battery capacity will have different degrees of decline, the specific reference level is: -10° C available capacity is 70%, 0°C is 85%, 25°C is 100%. ⚫ 8 battery is the most suitable storage capacity is 50%. Long-term storage of less than 10% or more than 90% will cause irreversible capacity decay of the battery.
  • Page 32 attenuation of the battery. ⚫ 9 Avoid storing the battery in a location where there is a risk of falling. Dropping may result in uncontrolled damage inside the battery and may cause leakage, heat, smoke, fire or explosion. 8. Troubleshooting Common fault reference disposal method...
  • Page 33 Trouble Trouble cause Solutions phenomenon 1． The battery plug is not 1．Charge the Turn on the plugged in battery power, the 2． Battery is dead 2. Replacement vehicle has no 3． Battery damage battery power output 4． Fuse blown 3. Replace the fuse 1,Battery voltage is too 1,Charge the battery Turn on the...
  • Page 34 4. Accelerated turn APP fault code without reset prompt processing 5. The instrument fault indicator flashes. 1． battery is low 1． Charging or 2． Insufficient tire charger damage pressure 2． Check tire Slow driving 3． Frequent brake start, pressure before speed or short overload each use...
  • Page 35 low, and the battery 5． Belong to capacity is reduced normal and discharged. The charger plug is in poor Check if the plug is The battery is contact with the battery loose. Replace the not charged socket. The charger is charger.

  • Page 36: Maintenance And Repair

    9. Maintenance and repair In order to extend the life of the electric scooter (iLark) so that it can travel safely and comfortably, please check and maintain the vehicle regularly. Regular inspections should also be carried out in the event of a long-term cessation of use of the vehicle.
  • Page 37 (iLark). You must not neglect the importance of these inspections. Be sure to complete all the following inspections before driving to ensure that the smart locomotive performance is good and achieved. The effect of safe driving.
  • Page 38 1 normal tire pressure 2 degree of wear 3 Tire no cracks or wounds the amount of electricity enough to travel the planned distance Lights high beam, low beam Horn Check if the speaker works normally...
  • Page 39 Regular maintenance Please take the first maintenance after purchasing a vehicle for one month or 500km, and then carry out comprehensive inspection and maintenance every six months or 3000km to our special maintenance department to keep your vehicle in the best safety state and ensure the rider.
  • Page 40 e checks Electric Turning bearing parts Fuse Battery Tires Important Main cable parts Structural lubricating Controller inspection...

  • Page 41: Vehicle Storage

    10. Vehicle storage Short-term storage: 1) Store the vehicle in a flat and stable position; store it in a well- ventilated, dry place; 2) Store the battery when it is charged to 50% to ensure the battery life; 3) Try to avoid the sun and rain of the vehicle, and reduce the damage or aging of parts;...
  • Page 42 5) When the vehicle with the battery is stored in a safe place such as indoors, exhibition halls, warehouses, etc., or when transported by a freight vehicle for short-distance transportation, please pull out the battery plug after closing and removing the key to prevent potential electrical troubles.
  • Page 43 2) When storing for a long time, please perform a complete charge and discharge cycle every two months, and store the battery when it is charged to 50% to ensure the battery life; 3) When using it for long-term storage, please fully charge the battery; 4) Before Riding, please check if there is no abnormality in each part and then ride on the road.
  • Page 44 11. DOT basic version Circuit Diagram：...
  • Page 45 DOT higher version Circuit Diagram：...
  • Page 46 EEC middle version Circuit Diagram：...
  • Page 47 EEC higher version Circuit Diagram：...
  • Page 48 CE version Circuit Diagram：...
  • Page 49 Note: No part of the User's Guide may be reproduced without the written consent of Zhejiang Doohan Technology Co., Ltd. The final...
  • Page 50 manual 2019 1st edition interpretation of th...
