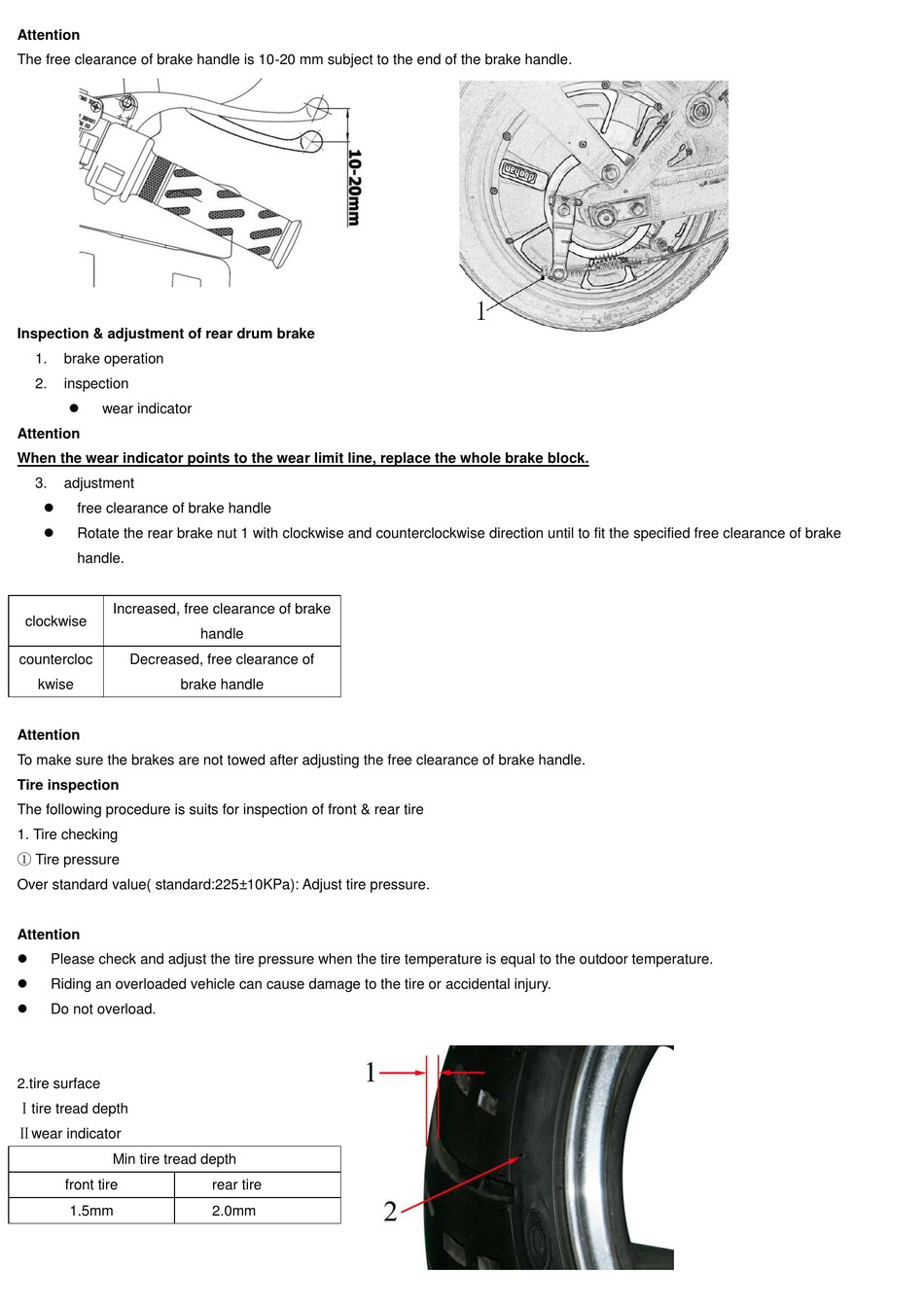

Attention
The free clearance of brake handle is 10-20 mm subject to the end of the brake handle.
Inspection & adjustment of rear drum brake
1. brake operation
2. inspection
⚫
wear indicator
Attention
When the wear indicator points to the wear limit line, replace the whole brake block.
3. adjustment
⚫
free clearance of brake handle
⚫
Rotate the rear brake nut 1 with clockwise and counterclockwise direction until to fit the specified free clearance of brake
handle.
Increased, free clearance of brake
clockwise
countercloc Decreased, free clearance of
kwise brake handle
Attention
To make sure the brakes are not towed after adjusting the free clearance of brake handle.

Tire inspection

The following procedure is suits for inspection of front & rear tire
1. Tire checking
① Tire pressure
Over standard value( standard:225± 10KPa): Adjust tire pressure.
Attention
⚫
Please check and adjust the tire pressure when the tire temperature is equal to the outdoor temperature.
⚫
Riding an overloaded vehicle can cause damage to the tire or accidental injury.
⚫
Do not overload.
2.tire surface
Ⅰtire tread depth
Ⅱwear indicator
Min tire tread depth
front tire
1.5mm
handle
rear tire
2.0mm
