Installation

2.1

Installation Process

5.5
11.7
63

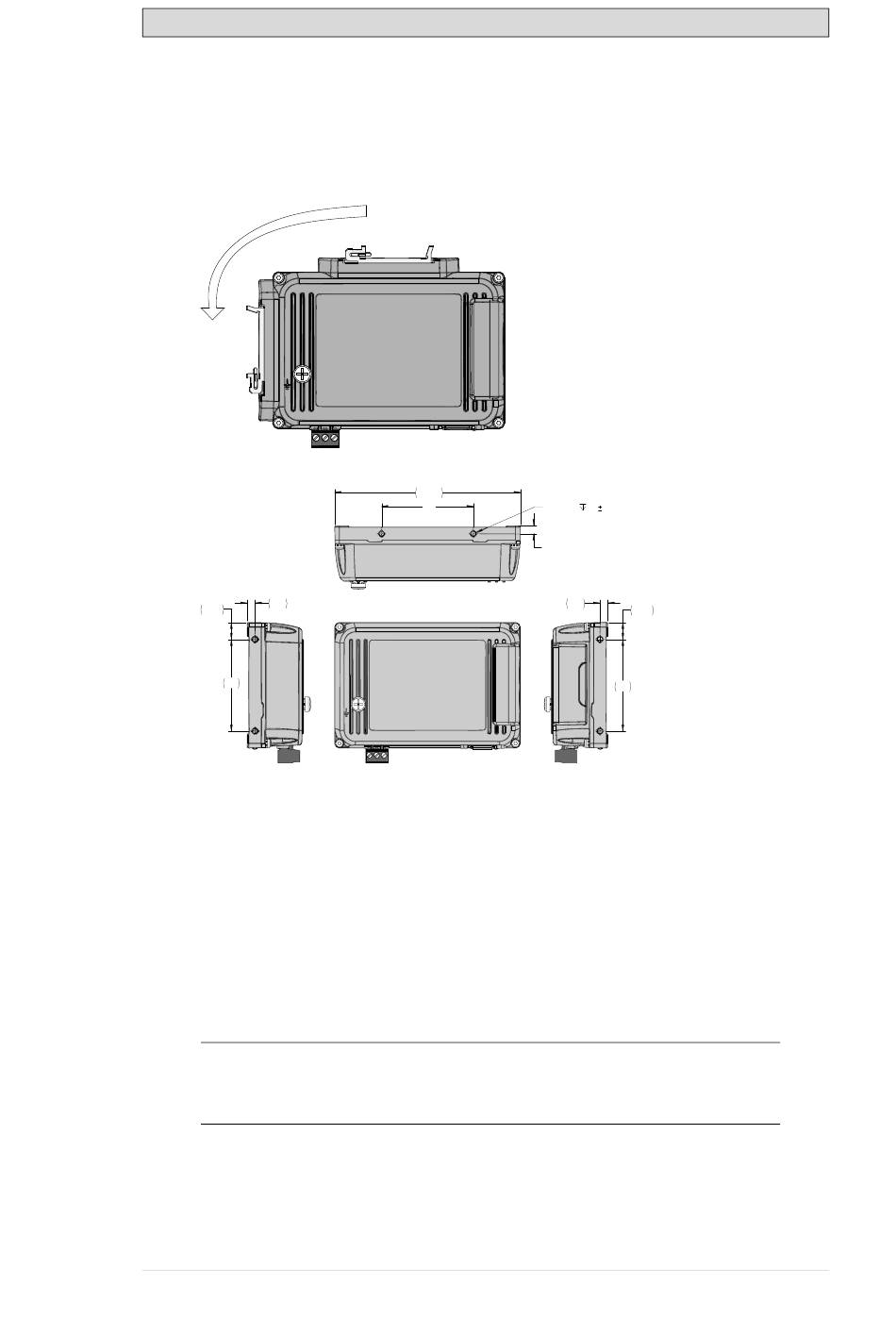

The BoX2 pro can be used as a bench top device or clipped onto a DIN rail. For
custom mounting, the DIN rail mount can be moved from the standard position,
opposite the connection, to a side. The mount can be removed for access to all the
mounting points shown above.
The following is needed:
No tools required - standard usage
•
A Phillips screwdriver for movement or removal of the DIN rail mounting
•
bracket
1. Unpack and check the delivery. If damage is found, notify the supplier.
Note:
Place the operator panel on a stable surface during installation.
Dropping the operator panel or letting it fall may cause damage.
Beijer Electronics, MAEN275
127.6
63 M4 x 0.7
5.5
5.5
Installation
8 1 (6x)
11.7
63
11
