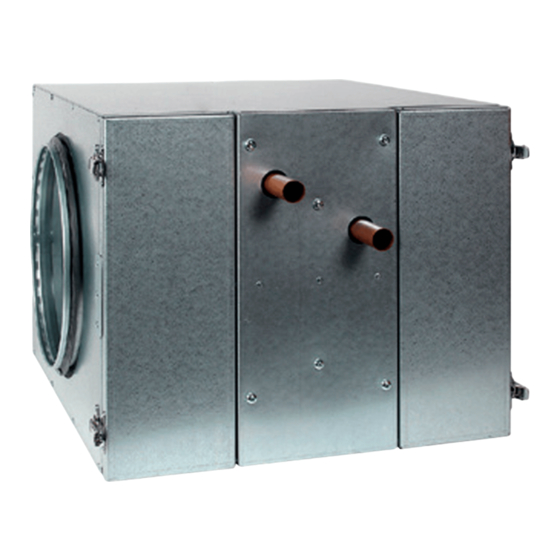

Electric duct mounted air heater
Installation, operation and maintenance instructions
for design engineers, installation engineers and service personnel
Important information
!
Only qualified personnel
Only qualified personnel should carry out
installation, configuration and commissioning.
Observe the following during
installation
The air heater for preheating is installed in the
outdoor air duct before the ventilation unit.
The air heater must be accessible without
obstruction. The air cooler must not be installed
in the immediate vicinity of the ventilation unit or
duct bends, as this will prevent an even air flow
across the cooler resulting in impaired output.
Commissioning
The duct connection sleeves of the air heater must be
capped during transport, storage and installation.
Air heater in three different sizes for the outdoor air duct:
• For 125 mm ducts; SDHE125-1T
(LVI-no. 7906723)
The following components are included in the delivery:
• Electrical heater 300H125-12-1
• SET connection unit
• RJ45 cable, 3 m
• For 160 mm ducts; SDHE160-1T
(LVI-no. 7906724)
The following components are included in the delivery:
• Electrical heater 300H160-12-1
• SET connection unit
• RJ45 cable, 3 m
SDHE_a_EN–m
®
Make sure that the air heater and the ducts
are clean and that there are no loose objects
in them before you commission the ventilation
system.
Do not commission the air heater until all work
that produces large quantities of sanding dust or
other impurities has been completed.
Electrical safety
The air heater must be installed according to the
local electrical safety provisions.
NOTE! The manual's original language is
Finnish.
• For 200 mm ducts; SDHE200-1T
(LVI-no. 7906725)
The following components are included in the delivery:
• Electrical heater 300H200-12-1
• SET connection unit
• RJ45 cable, 3 m
