Installation Instructions for
TBLA/TCLA/TCLAS Air heaters for water
GOLD/SILVER C/COMPACT
1. General
The TBLA/TCLA/TCLAS air heater uses hot water as the
heating medium for post-heating the supply air.
Finned-tube heat exchanger fabricated of copper tubes
and profi led aluminium fi ns. The headers and the pipe-
work to the water connections are made of copper. The
male threaded pipe connections are made of brass.
Extra accessories
GOLD/COMPACT:
Circulation pump used for ensuring the frost guard func-
tion. Supplied with T coupling, non-return valve and com-
missioning valve. The automatic pump control system is
integrated into the control equipment of the air handling
unit. See the individual instructions for the TBPA circula-
tion pump.
The TBVL valve set with 2(3)-way valve, actuator, con-
nection cable with quick-fi t connector, frost guard sensor
(insertion type), and T-piece (for air heaters without outlet
for an insertion sensor). See the individual instructions for
the TBVL. If the air heater is to be installed outdoors or in
a cold space, take into consideration the enclosure class of
the actuator and the permissible ambient temperature. If
necessary, see to it that required protection is arranged.
If you use a valve of your own, you have the option of
instead selecting a set of electrical connection compo-
nents. This set contains a connection cable with quick-fi t
connector, resistor and insertion or strap-on sensor.
SILVER C:
The TBVA Valve set consisting of a 2(3)-way valve includ-
ing actuator can be ordered. See the instructions for
TBVA accessories. If the air heater/cooler is to be installed
outdoors or in a cold space, take into consideration the
enclosure class of the actuator and the permissible ambi-
ent temperature. If necessary, ensure that the required
protection is arranged.
2. Maintenance
Check at least twice a year whether cleaning is necessary.
Cleaning shall only be done by blowing with compressed
air against the ordinary direction of airfl ow, vacuum clean-
ing with a soft nozzle or wet cleaning with water and/or
solvent. Before you begin wet cleaning, you should cover
adjacent functional sections to protect them. After wet
cleaning, you should blow the surfaces dry with com-
pressed air to remove every trace of cleaning solvent.
Swegon reserves the right to alter specifi cations.

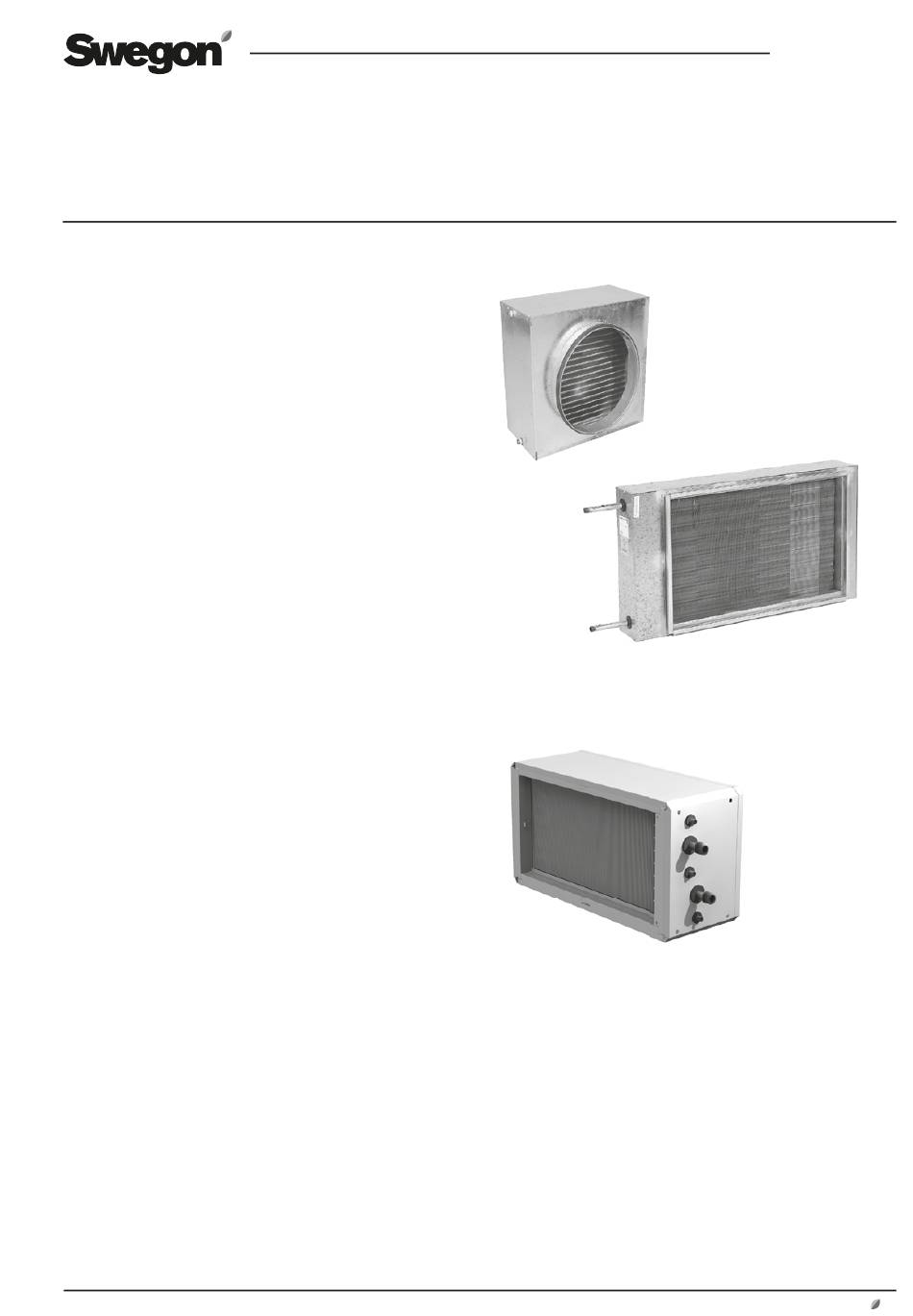

TBLA
TCLA/TCLAS
If cleaning solvent is used, this solvent must not contain
ingredients that will corrode aluminium or copper. Swe-
gon's cleaning agent is recommended. This cleaning agent
is sold by Swegon or Swegon Service.
While cleaning, check whether the liquid circuit needs to
be vented.
GB.TBLA.180307
