Graco 246388 Instructions-Parts List

Instructions – Parts List
Accessory Hopper Kit for:
Ultra 395/495t
Ultimate Nova 395/SuperNovat495
Ultra Performance 395/495t
246388, Series A
Pressure Relief Procedure
WARNING
INJECTION HAZARD
System pressure must be
manually relieved to prevent
system from starting or spraying
accidentally. Fluid under high pressure can
be injected through skin and cause serious
injury. To reduce risk of injury from injec-
tion, splashing fluid, or moving parts,
follow Pressure Relief Procedure when-
ever you:
D are instructed to relieve pressure,
D stop spraying,
D check or service any system equip-
ment,
D or install or clean spray tip.
1. Lock gun safety latch.
2. Turn ON/OFF switch to OFF.
3. Unplug power supply cord.
4. Unlock gun safety latch. Hold metal part of
gun firmly to grounded metal pail. Trigger
gun to relieve pressure.
5. Lock gun safety latch.
6. Open pressure drain valve. Leave pres-
sure drain valve open until ready to spray
again.
If suspected that spray tip or hose is com-
pletely clogged, or that pressure has not been
fully relieved after following steps above,
VERY SLOWLY loosen tip guard retaining nut
or hose end coupling to relieve pressure
gradually, then loosen completely. Now clear
tip or hose obstruction.
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440-1441
Copyright 2003, Graco Inc. is registered to I.S. EN ISO 9001
1
7
8
5
6

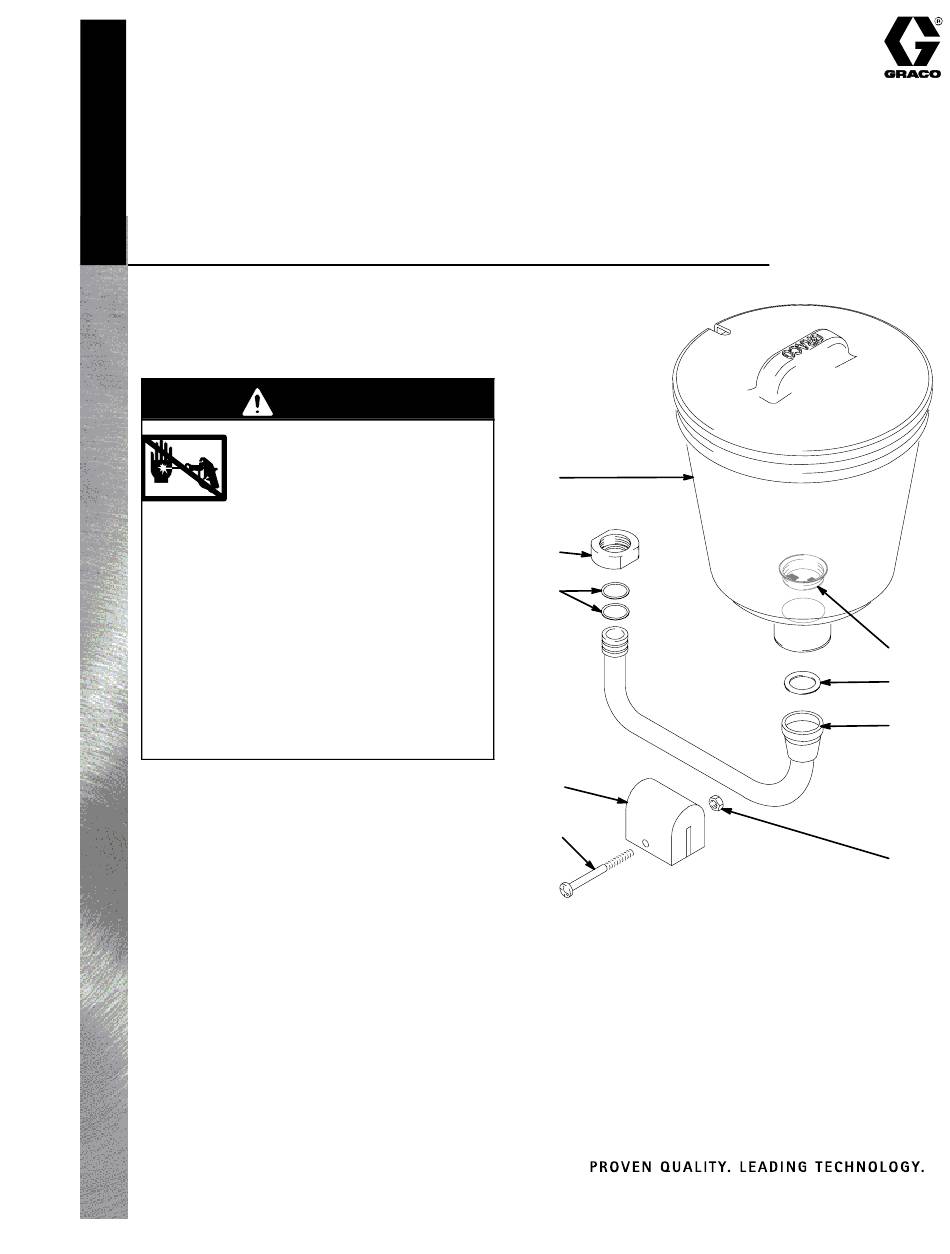

Ref.
No. Part No. Description
1 188787 HOPPER, 1.5 gallon
2 112133 SCREEN, hopper
3 104938 O-RING
4 287049 TUBE, inlet, hopper
5 15B778 FOOT, hopper
6 110883 SCREW, mach, pnh
7 15B434 NUT, jam
8 117559 O-RING
9 109466 NUT, lock, hex
309825
Rev. A
2
3 3
4
9
TI3143A
Qty.
1
1
1
1
1
1
1
1
1
