Vernier Rotary Motion Sensor User Manual

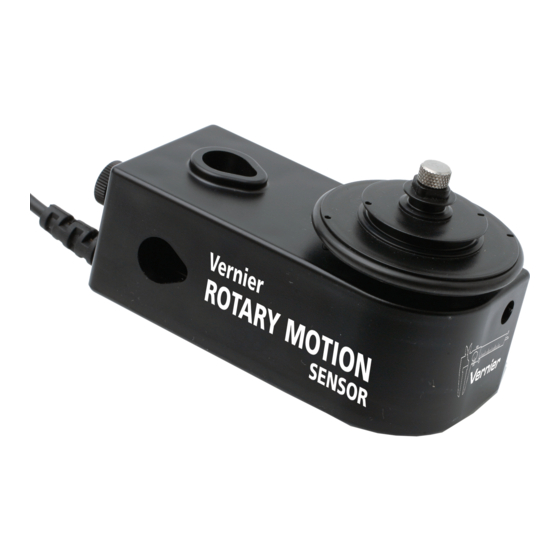

Vernier Rotary Motion Sensor
(Order Code RMV-BTD)
The Vernier Rotary Motion Sensor is a bidirectional angle sensor designed to
measure rotational or linear position, velocity and acceleration. It is used for a
variety of investigations, including measurement of rotational inertia and
verification of the conservation of angular momentum.
Additional experiments and innovative uses can be found at
www.vernier.com/rmv-btd
Note: Vernier products are designed for educational use. Our products are not
designed nor are they recommended for any industrial, medical, or commercial
process such as life support, patient diagnosis, control of a manufacturing
process, or industrial testing of any kind.

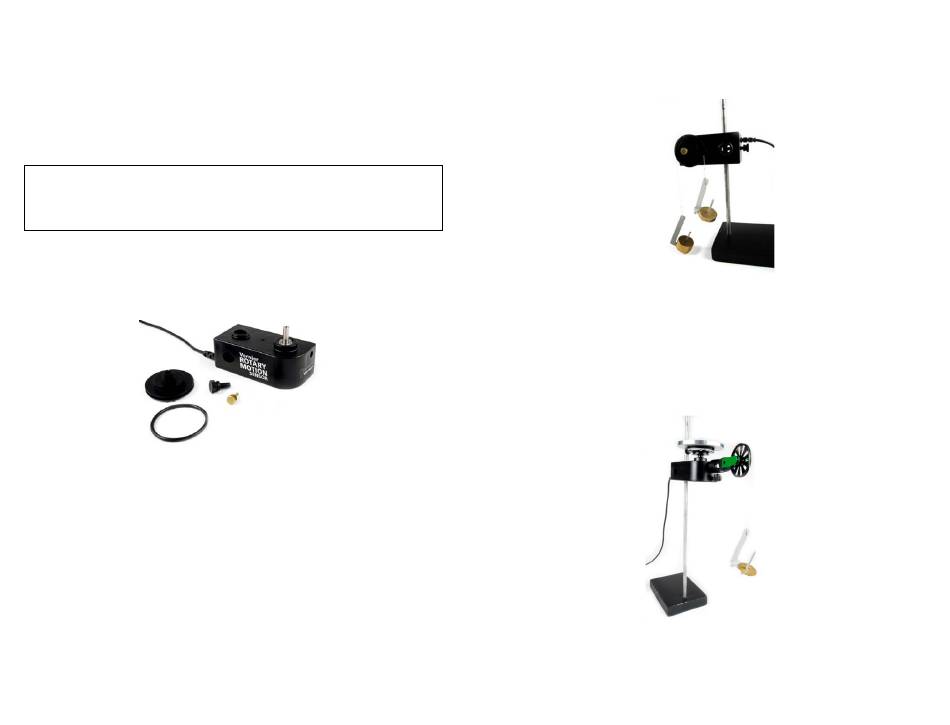

What's Included
Rotary Motion Sensor
l
Thumb screw
l
3-step pulley and mounting screw
l
O-ring
l
Compatible Software
See
www.vernier.com/manuals/rmv-btd
Rotary Motion Sensor.
Getting Started
1. Connect the sensor to the interface (LabQuest Mini, LabQuest 2, etc.).
2. Start the appropriate data-collection software (Logger Pro, Logger Lite,
LabQuest App) if not already running, and choose New from File menu.
See the following link for additional connection information:
www.vernier.com/start/rmv-btd
Using the Product
Example Experiments
The following examples show various ways to use the Rotary Motion Sensor.
Some of these examples use accessory products described below.
for a list of software compatible with the
Atwood's Machine
Attach the 3-step pulley to the rotating shaft. Use the thumb screw to attach the
Rotary Motion Sensor to a ring stand. Attach each end of the string to a mass
and run the string over the pulley. Use the Rotary Motion Sensor to determine
the acceleration of the system.
Moment of Inertia of a Disk
(requires Rotational Motion Accessory Kit, see Accessories section)
Attach an Ultra Pulley to the Rotary Motion Sensor. Attach the 3-step pulley to
the rotating shaft. Attach the disk to the 3-step pulley. Attach a string to the
underside of the hub. Attach the Ultra Pulley to the Rotary Motion Sensor using
the Ultra Pulley Swivel Mount. Run the string over the Ultra Pulley and attach
a weight to the end of the string. Use the weight to apply a torque to the system
while the Rotary Motion Sensor measures the angular acceleration.
1
