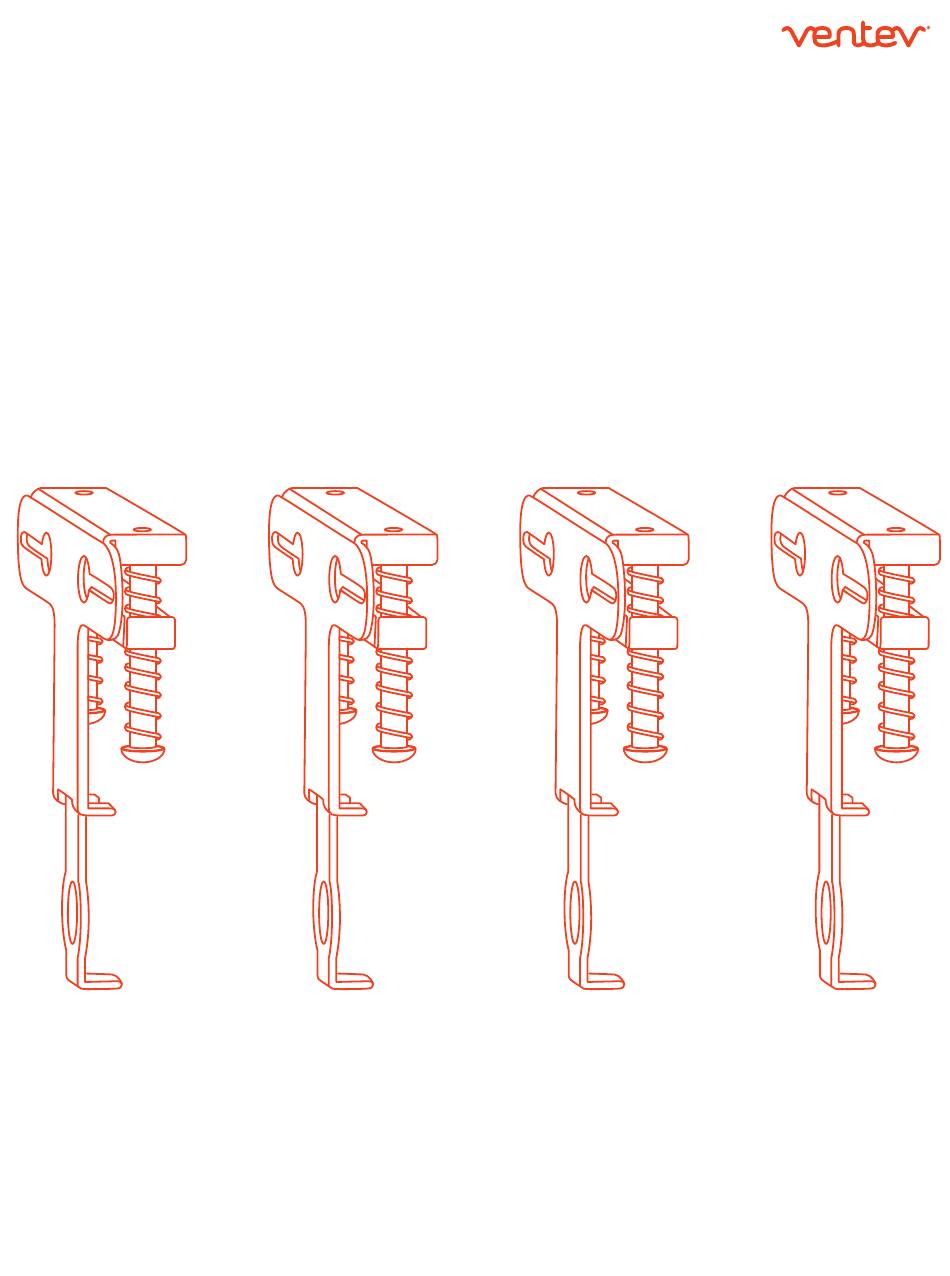

- Page 1 Installation & Mounting Manual Aruba T-Bar Clip Rev. 062824...
- Page 2 The Ventev Aruba T-Bar Bracket is used to attach Aruba access points to 9/16 in. and 15/16 in. flat T-bar grids. As shown in the figure below, the two (2) M4 screws included with the access point are used to attach the Ventev Aruba T-Bar Clip to the access point.
- Page 3 Orient the access point so that the logo is legible and orient the pull tab of the T-bar bracket so it is facing upwards. Step 3 Secure the Aruba T-Bar Clip to the Aruba access point using the two (2) M4 screws included with the access point. Step 4 Pull the pull tab of the T-bar bracket and install the access point onto the T-bar, ensuring that both sides of the T-bar are properly seated in each channel of the Aruba T-Bar Clip, as pictured below.
- Page 4 To install the bite block into the Aruba T-Bar Clip, place the bite block on a flat surface, as pictured below. 11126 McCormick Road, Hunt Valley, MD 21031 | 800-851-4965 | sales@ventev.com | ventevinfra.com | Rev. 062824...
- Page 5 Step 6 Invert the Aruba T-Bar Clip as pictured below. Step 7 Secure your fingers to the outside of both sides of the clip base and pull the pull tab to open the Aruba T-Bar Clip. Pull Tab Clip Base...
- Page 6 Step 9 Once centered, lower the Aruba T-Bar Clip over the bite block until the top of the bite block sits flat against the inside of the clip base 11126 McCormick Road, Hunt Valley, MD 21031 | 800-851-4965 | sales@ventev.com | ventevinfra.com | Rev. 062824...
- Page 7 Once the clip is installed onto the access point, pull the pull tab of the T-bar bracket and remove the bite block. Step 14 Complete step 4 above. 11126 McCormick Road, Hunt Valley, MD 21031 | 800-851-4965 | sales@ventev.com | ventevinfra.com | Rev. 062824...
- Page 8 11126 McCormick Road, Hunt Valley, MD 21031 800-851-4965 sales@ventev.com ventevinfra.com Rev. 062824...
