Summary of Contents for Ventev VenFlex

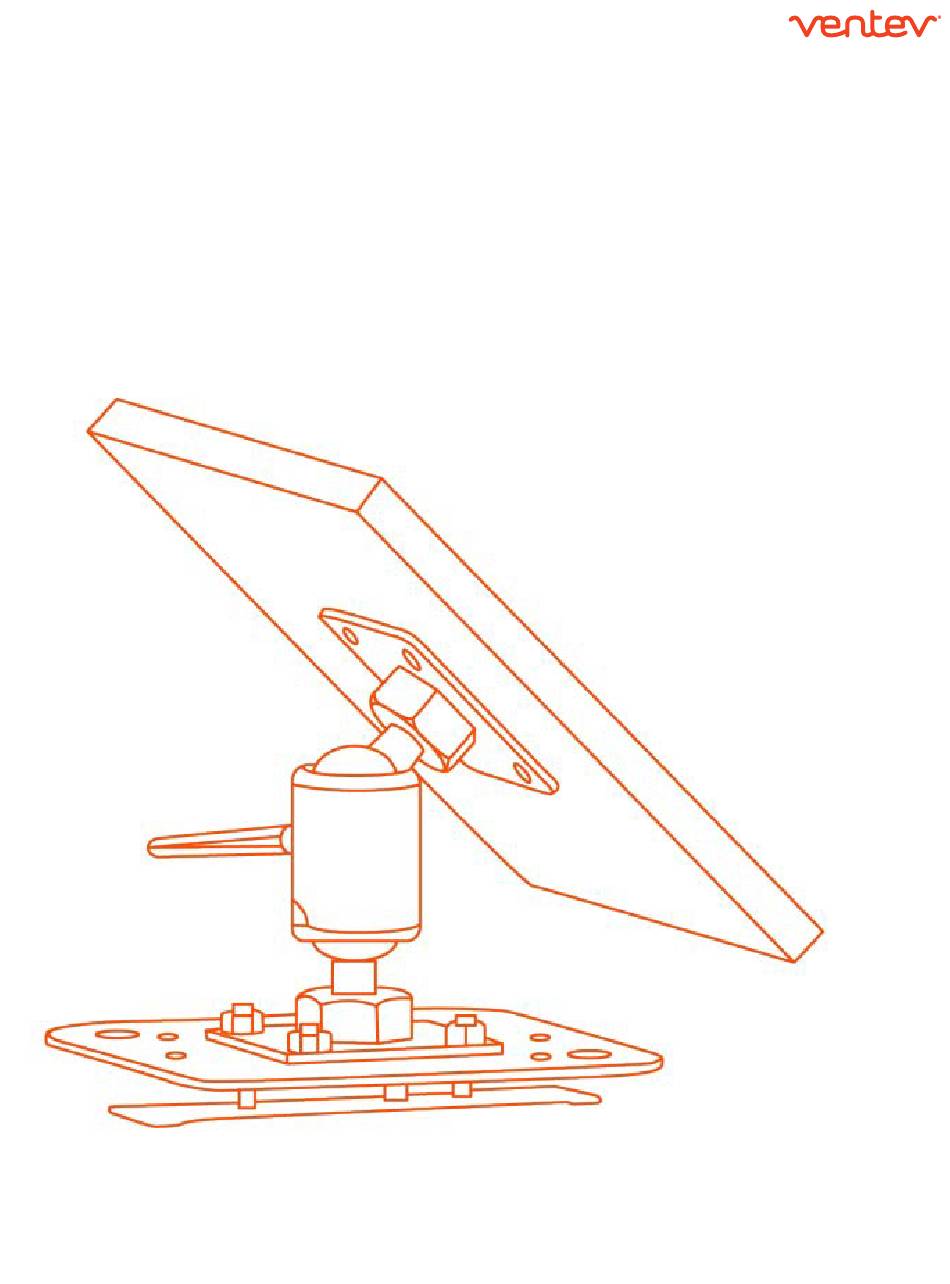

- Page 1 Installation & Mouning Manual VenFlex Mount Rev. 071123...
- Page 2 1. Surface Mounting (Flat Wall/Hard-Lid Ceiling Mounting) Holes are in the corners of the VenFlex Mount for basic mounting to a flat wall or ceiling. The holes are sized for #10 screws. Select the appropriate fasteners suited for the type of wall/ceiling material.
- Page 3 Double Gang Outlet Box 4” Junction Box Single All-Thread Four (4) All-Thread 11126 McCormick Road, Hunt Valley, MD 21031 | 800-851-4965 | sales@ventev.com | ventevinfra.com | Rev. 071123...
- Page 4 5. Attaching an Articulating Mount to the VenFlex Mount Articulating mounts can be attached to the VenFlex Mount to articulate the access point in some scenarios and to all the mounting of an articulated antenna. In the figures relating to articulating mounts, Ventev’s Universal Articulating Mount with Large Joiner (SKU 266277) is shown.
- Page 5 Installing VenFlex Mount with Antenna on T-Bar Drop Ceiling The VenFlex Mount with an articulating antenna can attach to the T-bar in a standard drop ceiling grid, by attaching the Ventev Aruba T-Bar Clip (SKU 278472).
- Page 6 VenFlex Mount can be adjusted by hand or using a wrench to make the access point parallel to the wall. If the support screw extends beyond the back of the VenFlex Mount, drill a hole a hole in the wall or ceiling to allow it to pass through.
- Page 7 Refer to the specific access point’s documentation for mounting the access point to a 15/16” T-Bar. The support screw on the VenFlex Mount can be adjusted by hand or using a wrench to make the access point parallel to the wall. If the support screw extends beyond the back of the VenFlex Mount, drill a hole a hole in the wall or ceiling to allow it to pass through.
- Page 8 11126 McCormick Road, Hunt Valley, MD 21031 800-851-4965 sales@ventev.com ventevinfra.com Rev. 071123...
