Allworx Verge 9318Ex Installation Manual

Increase the number of programmable buttons available on the Verge 9312-WE phone by adding up to three Verge 9318Ex-WE expanders. Each
Verge 9318Ex-WE expander adds 18 programmable buttons for a maximum of 66 programmable buttons. To view the user guide for the Verge IP
phone series, visit: www.windstreamenterprise.com.

Connecting the Verge 9318Ex-WE Expander

To prevent static discharge from damaging the Verge 9312-WE IP phone or the Verge 9318Ex-WE expander, use either an anti static
Warning:
(or ESD) wrist strap or floor mat when connecting the Verge 9318Ex-WE expander.
The Verge 9312-WE phone provides power to the first connected Verge 9318Ex-WE expander. The second and third Verge
Note:
9318Ex-WE expanders require an additional power supply (not included).
Tools required: #1 Phillips head screwdriver.
1. Unpack the Verge 9318Ex-WE expander, and inspect for missing items.
• Verge 9318Ex-WE expander and stand
Included:
2. Remove all cables (power, Ethernet(s) and handset/headset) and the stand assembly from the Verge 9312-WE IP phone.
3. Lay the Verge 9312-WE IP phone and the Verge 9318Ex-WE expander face down on a soft surface with the top pointed away.
4. Remove the Verge 9318Ex-WE expander cover from the back side of the phone by removing the three screws that secure the telephone
expander cover (left side) to the phone and then remove the telephone expander cover to expose the Verge 9318Ex-WE expander connector.

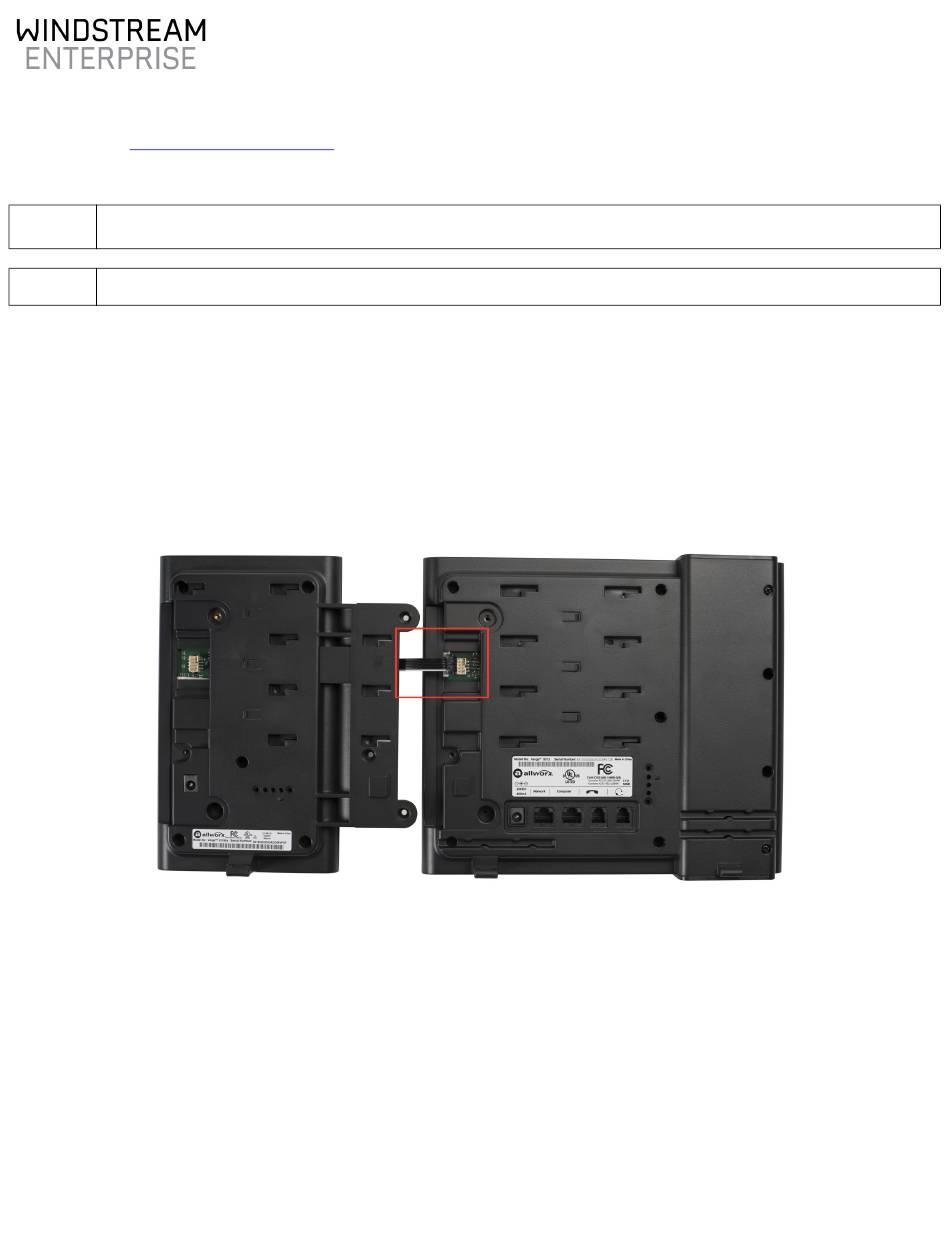

5. Place the Verge 9318Ex-WE expander next to the opening on the back of the Verge 9312-WE IP phone, and then connect the Verge
9318Ex-WE expander ribbon cable to the phone connector.
6. Secure the Verge 9318Ex-WE Expander using the three screws.
1-866-623-VOIP (8647)
www.windstreamenterprise.com
©2018 Windstream Services, LLC
Verge™ 9318Ex-WE Expander
Installation Guide
Not included:
• (Optional) Power Supply (rated 24VDC, 400 mA or higher) -
catalog # 8400006.
Revised: February 26, 2018
P/N 5000419 Rev. 01
