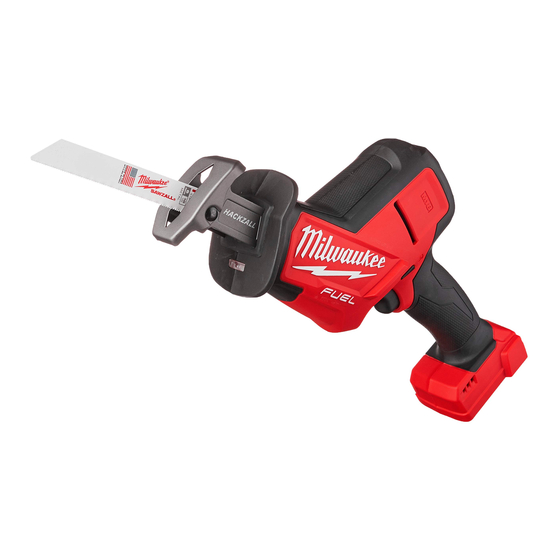

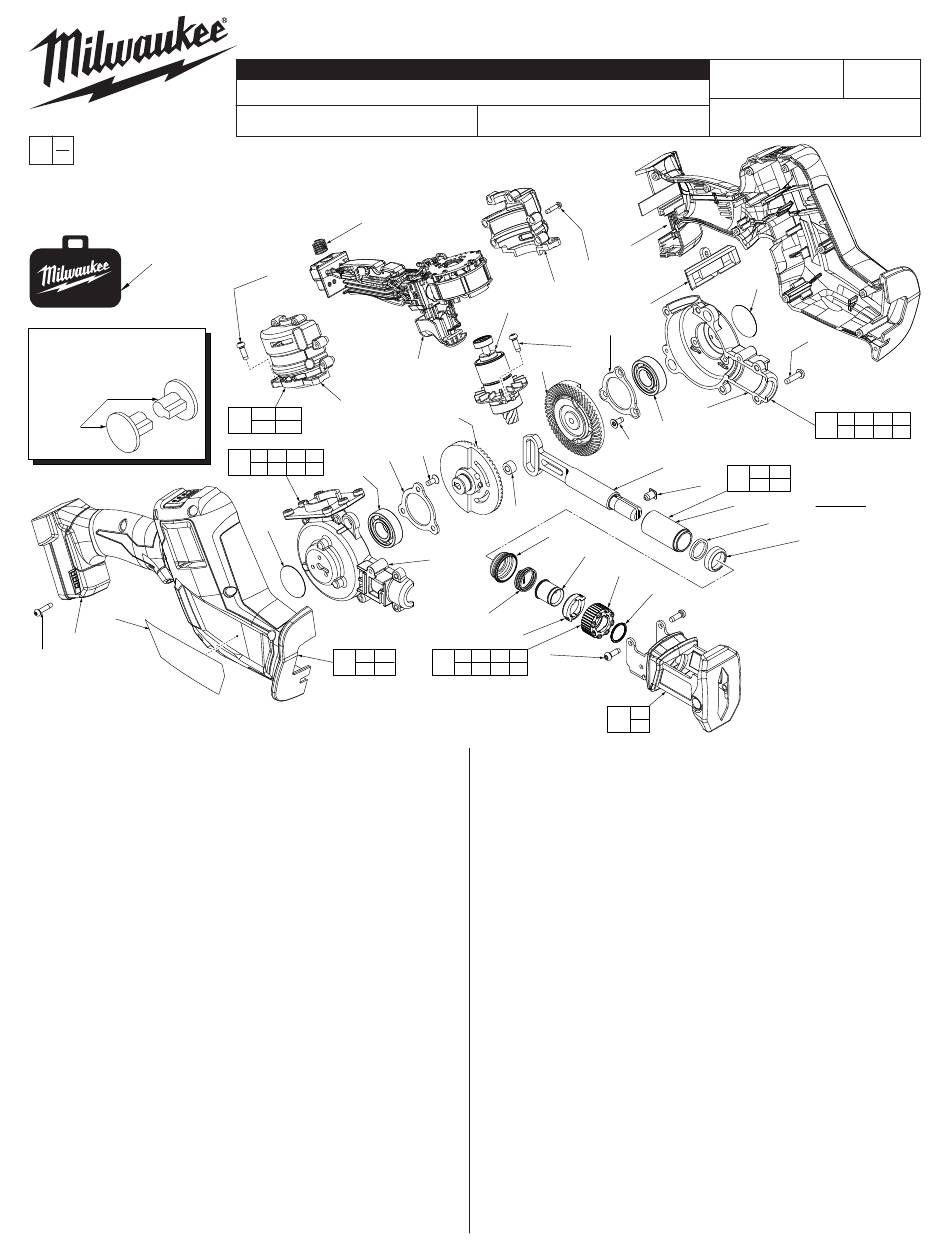

Milwaukee M18 FUEL HACKZALL Service Parts List

EXAMPLE:
00
0 Component Parts (Small #) Are Included
When Ordering The Assembly (Large #).
40
Alignment Plugs- For Service Only
Plugs are furnished in Gear Case Kits
#6 and #7. Plugs are not components
of the tool. DO NOT DISCARD after
use. Save for other possible
service applications.
50
20
5a
4
(10x)
FIG. PART NO. DESCRIPTION OF PART
1 45-16-0927 Shoe/Water Barrier Assembly
2 06-82-5320 8-32 x 5/8" Pan Hd. Tapt. T-20 Screw
3 14-46-1011 Steel Quik-Lok
3a 34-60-3680 Retaining Ring
3b 42-50-0076 Front Cam
3c 44-60-0626 Lock Pin
3d 42-50-0077 Rear Cam
3e 45-22-0081 Sleeve
3f 40-50-0161 Torsion Spring
3g 31-15-0511 Spring Cover
3h 44-86-0740 Front Cap
3j 45-06-0880 Felt Seal
3k --------------- Spindle Bushing
3m --------------- Spindle Shaft
4 06-82-2025 M3.5 x 16mm Pan Hd. Plast. T-10 Scr. (10)
5 31-44-2719 Housing Kit
5a --------------- Housing Cover - Right Housing
5b --------------- Housing Support - Left Housing
6 14-30-1033 Right Gear Case Kit
6a 23-70-3350 Aluminum Tape
6b --------------- Gear Case - Right
6c --------------- Ball Bearing
6d --------------- Bearing Plate
6e --------------- Bearing Plate Screw
6f --------------- Spiral Beval Gear
6g 44-86-0803 Drive Pin Sleeve
7 14-30-1043 Left Gear Case Kit
7a --------------- Spiral Bevel Gear
7b --------------- Gear Case - Left
8 06-82-5320 8-32 x 5/8 Pan Hd Slt. T-20 Screw
SERVICE PARTS LIST
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
M18™ FUEL™ HACKZALL
2719-20
CATALOG NO.
14
17
(4x)
15
12a
17 12a
12
12b 13
(3x)
6a 6b 6c 6d 6d
6
6e 6f 6g 50
6c
6a
4 5a
5
5b 20
NO. REQ.
(1)
(2)
Blade Clamp Kit (1)
®
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(2)
(1)
(2)
(2)
(6)
(1)
(1)
(1)
(1)
(1)
(7)
Reciprocating Saw
®
STARTING
SERIAL NO.
13
(6x)
12b
9
10
(2x)
7a
6f
6e
6g
3g
3e
6b
3f
3d
8
3 3a 3b 3c 3d
(2x)
3e 3f 3g
FIG. PART NO.
9 16-01-0900
10 05-78-0105
12 31-50-1155
12a ---------------
12b ---------------
13 06-82-1050
14 40-50-1090
15 14-20-2719
16 45-24-0682
17 05-74-0985
20 12-20-1119
31 38-50-0415
40 50-55-3560
50 31-53-0280
FIG. LUBRICATION
(Type 'L' Grease, No. 49-08-4175):
3h,3j Saturate Felt (3j) with lightweight oil prior to assembly with
Cap (3h) onto Bushing (3k) and Spindle (3m).
3k,3m Lightly coat the O.D. of Spindle Shaft (3m) and I.D. of Bush
ing (3k) with grease.
3m Place a dab of grease in the rear slot of Spindle Shaft (3m).
6b,7b Place .25 ounce grease in gear cavity of Gear Cases (6b,7b).
Coat the spindle shaft pocket in Gear Cases (6b,7b).
6f,6g Lightly coat the Drive Pin of Spiral Bevel Gear (6f) and I.D.
and O.D. of Bearing Sleeve (6g) with grease.
6f,7a,9 Completely coat all of the teeth of the Spiral Bevel Pinion
on Rotor (9) and Spiral Bevel Gears (6f,7a) with grease.
REVISED BULLETIN
WIRING INSTRUCTION
H98A
SEE PAGE 3
5b
6a
16
6d
7b
6c
6e
(3x)
3m
3h 3j
31
3k 3m
3c
3k
3j
3b
3a
8
1
DESCRIPTION OF PART
Rotor Assembly
M4 x 10mm Pan Hd. Taptite T-20 Scr
Motor Insulator Kit
Motor Insulator Halve - Right
Motor Insulator Halve - Left
4-20 x 0.76 Pan Hd. ST T-10 Screw
Terminal Block Spring
Electronic Assembly
Locking Shuttle
M4 x 12mmPan Hd. Tapt. T-20 Screw
Service Nameplate
Spindle/Bushing Kit
M18 FUEL Contractor Bag
Alignment Plug - Service Tool
(Not component of tool - one per in kits 6 & 7)
MILWAUKEE TOOL www.milwaukeetool.com
l
13135 W. Lisbon Road, Brookfield, WI 53005
BULLETIN NO.
54-40-2740
DATE
July 2017
8
(5x)
6a 6c 6d 6e
7
7a 7b 50
NOTE:
Clean Gear Case
Kits (6 and 7) with
a clean, dry cloth.
DO NOT wash up.
3h
NOTE:
Lock Pin (3c) to
be coated with
graphite prior to
assembly.
NO. REQ.
(1)
(2)
(1)
(1)
(1)
(6)
(1)
(1)
(1)
(4)
(1)
(1)
(1)
Drwg. 1
