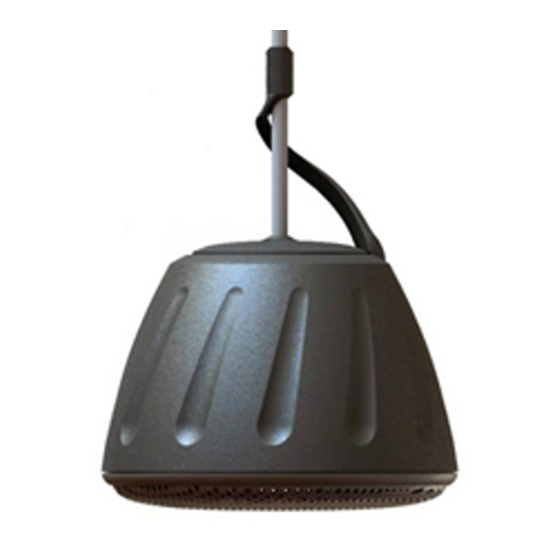

RS31-EZ(-T)
Box contents
1 Speaker assembly
2 Mounting screws
Safety leash
Warning
SoundTube speakers must be installed by a professional audio installer/contractor. For safety and for
optimum audio performance, installer must follow all directions issued by SoundTube Entertainment.
Install Instructions For:
RS31-EZ(-T)
Junction Box (not included)
Minimum internal depth: 1.5 inch (38.1 mm)
Mounting plate
(shown with transformer)
Adjustment loop
Mounting screws (2)
Cover plate
Speaker
1.435.647.9555
© 2012 SoundTube Entertainment, Inc. All rights reserved. PN INS-RS31-EZ Rev 03.01.12
Warning
Do not spec or install speaker near support beam, ventilation duct or
other structure that may interfere with speaker function or dispersion.
|
|
800.647.TUBE
www.soundtube.com
Advertisement
Related Manuals for SoundTube RS31-EZ
Summary of Contents for SoundTube RS31-EZ
- Page 1 Warning Warning SoundTube speakers must be installed by a professional audio installer/contractor. For safety and for Do not spec or install speaker near support beam, ventilation duct or optimum audio performance, installer must follow all directions issued by SoundTube Entertainment.
- Page 2 (not via wire opening. on structure/junction box. included) using the mout- ning screws provided. 5. Connect Signal wire into 6. RS31-EZ-T wiring: 7. RS31-EZ wiring: 8. Set speaker height by terminal block Connect the negative signal Connect the negative signal adjusting speaker wire.
