Hardware
T15
T42
T13
T41
T11
T15 - ¼-20 x 1.125" cap screws
T42 - ¼-20 x 2.25" carriage bolts
T13 - Acorn Nut
T41 - Tine Retaining pins
T11 - ¼-20 x 3" hex bolt
T14- ¼-20 two-way lock nut
T9- Throttle clip
T7- Clamp
T12- Knob
Throttle Clip
Step 4
Use the clip T9 to secure
the throttle cable and
wire in place on the Right
Lower Handle.
©2014 Schiller Grounds Care, Inc.

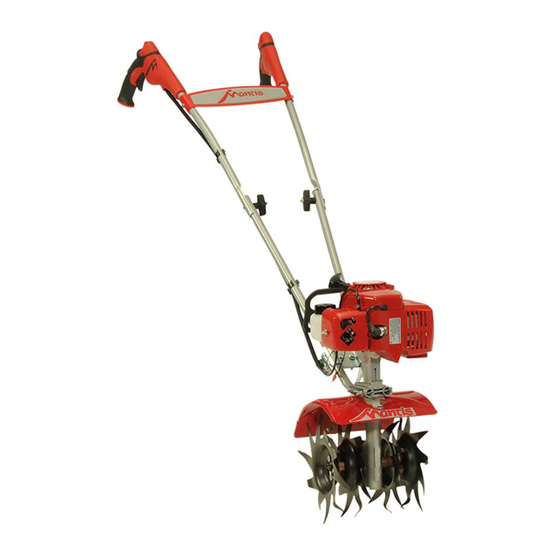

QUICK ASSEMBLY SHEET
Models:7920, 7921, 7924, 7925, 7940
Lower Handles
T12
T7
T9
Slide two (2) T11 bolts through the holes
T14
of one Handle Clamp and then through
the holes of the Left Lower Handle.
Position the bolts so that one bolt is in
front and one bolt is behind the
recessed channels of the transmission
housing. Slide the Right Lower Handle
and the second Handle Clamp onto the
bolts. Finger tighten the nuts T14.
Handle Brace
Step 5
Line up the Handle Brace with
the holes on the Upper Handles.
Insert cap screws T15 through
the holes in the Handle Brace and
through the holes on the Upper
Handles. Secure with a lock nut
T14.
Honda engine shown. Engine type depends on the model of the tiller.
Tools Needed: Two 7/16" wrenches
Carry Handle
Step 1
Step 2
Slide the Carrying Handle
over both Lower Handles.
Slide it down towards the
engine. It will rest about
four to six inches above the
engine.
Tighten Hardware
Step 6
Tighten all lock nuts, cap
screws, and bolts firmly and
securely using two 7/16"
wrenches.
Note: Do not over-tighten the
acorn nuts.
Upper Handles
Step 3
Attach the Upper Throttle
Handle onto the Right Lower
Handle. Fasten together using
the Knob T12 and carriage bolt
T42. Place an acorn nut T13 on
the end of the carriage bolt.
Repeat this process for the Left
Upper Handle
.
Tine Installation
Step 7
Slide the tines onto the
axle shafts. The "D-
shaped" hole goes on the
outside. Secure each tine
to the axle by inserting a
tine retaining pin T41.
P/N 430094, Rev A
