Mantis 7252 Owner's Manual

Mantis 7252 Owner's Manual

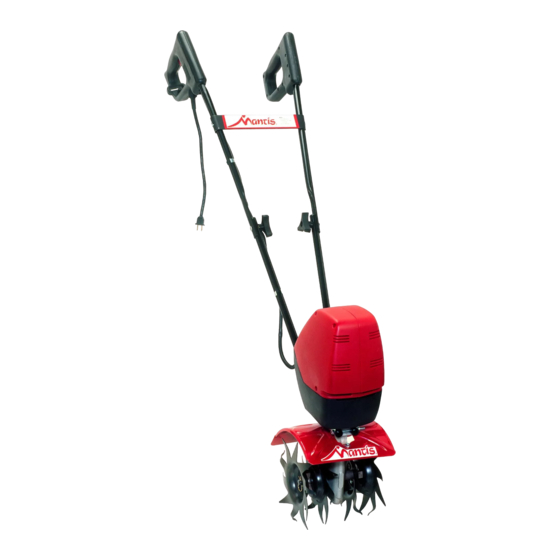

Electric tiller
Hide thumbs
Table of Contents

Advertisement

Quick Links

®
Electric tiller
No. 7252
O W N E R ' S M A N U A L

Advertisement

Table of Contents
loading

Related Manuals for Mantis 7252

Summary of Contents for Mantis 7252

  • Page 1 ® Electric tiller No. 7252 O W N E R ’ S M A N U A L...

  • Page 3: Table Of Contents

    We l c o m e t o t h e wo r l d o f M a n t i s g a rd e n i n g ! Here’s your new MANTIS Electric Tiller . . . the lightweight wonder that’s “Changing the way we...

  • Page 4: Safety Rules And Warnings

    FAILURE TO COMPLY MAY RESULT IN SERIOUS PERSONAL INJURY, AND/ OR EQUIPMENT AND PROPERTY DAMAGE. Safety and warnings IMPROPER USE OR CARE OF THIS TILLER OR FAILURE TO WEAR PROPER PROTECTION CAN RESULT IN SERIOUS INJURY. READ AND UNDERSTAND THE RULES FOR SAFE OPERATION AND ALL...
  • Page 5 An important part of the safety system incorporated in this tiller are the warning and information labels found on various parts of the tiller. These labels must be replaced in time due to abrasion, etc. It is your responsibility to replace these labels when they become hard to read. The location and part numbers (P/N) of these labels are illustrated on pages 16 and 17.
  • Page 6 BE AWARE!! The tines may coast after the triggers are released. Make sure tines have come to a complete stop before letting go of the tiller. 2. Always maintain a firm footing and good balance. Do not overreach while operating the tiller. Before...

  • Page 7: Assembly

    The bag of hardware is in the plastic bag containing the owner’s manual and video. To assemble your MANTIS Electric Tiller, you’ll need two 7/16" (11 mm) wrenches. We suggest that you install all nuts and bolts only “finger tight” —...
  • Page 8 Slide them into the two recessed channels.(Picture 5.) Make sure you insert them from the rear of the tiller - so that the bolt fits along the back of the housing. 8. Slide the second 3-inch bolt through the second set of holes in the short legs and clamps.
  • Page 9 (no. 17). 6. Now use wrench to tighten all nuts and bolts firmly and securely. Picture 1 Picture 4 Electric tiller WARNING FOR PROPER INSTALLATION - THE HANDLE WITH THE THROTTLE MUST BE ATTACHED TO THE RIGHT SIDE LOWER HANDLE.

  • Page 10: Before You Begin Tilling

    IMPORTANT NOTE: Before you use your MANTIS tiller, read the safety rules & warnings on pages 2-4. B e f o re yo u b e g i n t i l l i n g A. Starting Starting your MANTIS Electric Tiller is easy.
  • Page 11 Take It for a Ride. You can easily transport your MANTIS Electric Tiller to a friend’s or relative’s house. Simply fold down the handles, then store your tiller in the trunk of your automobile or truck.

  • Page 12: Tilling

    THE OPERATOR OF THIS TILLER IS RESPONSIBLE FOR ACCIDENTS OR HAZARDS OCCURRING TO HIMSELF, OTHER PEOPLE A. Now you’re ready to use your MANTIS Electric Tiller If you’ve seen other tillers, your MANTIS Electric Tiller may surprise you. It tills best when you pull it...

  • Page 13: Tilling/Cultivating

    Your MANTIS Electric Tiller makes weeding a pleasure! As a tiller, your MANTIS Tiller works the soil down to 10" (25.4 cm) deep. But, as a cultivator, it gently cultivates the surface, only 2" to 3" (5.09 cm to 7.62 cm) deep.
  • Page 14 The optional tine Detangler (Item no. 1322) will clear tines in a jiffy. Contact your local authorized MANTIS dealer. Your MANTIS Electric Tiller will weed between narrow rows! Your MANTIS Electric Tiller is a precision weeder that easily fits in tight places. So don’t be afraid to weed anywhere: between plants and shrubs;...

  • Page 15: Using The Border Edger Attachment

    U s i n g t h e B o rd e r E d ge r a t t a c h m e n t Your MANTIS Electric Tiller has been designed and built to accept a wide range of MANTIS Electric Tiller attachments to increase its usefulness in your lawn and garden.

  • Page 16: Troubleshooting

    Picture 2 Picture 3 IMPORTANT NOTE: To keep your MANTIS Electric Tiller running as efficiently as possible, always make sure the tines are clear of rocks and debris. If you continue to experience problems, contact your local authorized MANTIS dealer.

  • Page 17: Maintenance

    M a i n t e n a n c e A. How to check the grease level inside the worm gear housing When we built your MANTIS Electric Tiller, we lubricated the worm gear housing thoroughly. It is imperative that you inspect the grease level once a year.

  • Page 18: Parts Explosion

    P/N 438RA DIRECTION Raised hub Teeth point in a counter clockwise direction When you look at tine with the raised hub facing you and the teeth are pointing in a COUNTER CLOCKWISE rotation, you and a RIGHT HAND TINE. Electric tiller...

  • Page 19: Parts List

    438LA Tine Assembly (L.H.) 438RA Tine Assembly (R.H.) Fender Guard Bolt 1/4-20 x 3/8" Lg. 420600 Warning Fender Label 4058 Mantis Label 400011 Electric Tiller Trans w/ drive shaft 420147 Ferrite Core Assembly 420110 Spring 420139 Conversion Cord (Not Shown)

  • Page 20: Declaration Of Conformity

    Electric tiller...
  • Page 21 SOUTHAMPTON, PA. USA January 6, 2004 DE Ort. Datum, Unterschrift GB Place, Date, Signature Lieu, Date, Signature NL Plaats, Datum, Handtekening NO Sted, og, Underskrift FI Paikka, Päivämäärä, Allekirjoitus Electric tiller Bryan, Stuart DE Stellung: Bryan, Stuart FR Poste : Bryan, Stuart GB Position:...
  • Page 22 Disassemble the machine or part and wrap it in a sturdy box; send it back to us. Thank you. City, Postcode: Phone (evening): ® Other Repair: If you return a product or part for repair or for a cost estimate, please indicate what could be damaged. Electric tiller...
  • Page 23 Electric tiller...

  • Page 24: Warranty

    Lifetime Service If you ever need Mantis parts, we’ll get them right out to you. Usually shipped within 48 hours (and, if a major repair is ever required, we’ll do it quickly and reasonable).
