ATTENTION: THIS BOOKLET DOESN'T SUBSTITUTE THE OPERATION AND MAINTENANCE
MANUAL. IT'S NECESSARY TO READ CAREFULLY AND UNDERSTAND THE OPERATION AND
MAINTENANCE MANUAL BEFORE CARRYING OUT ANY MANOEUVRE WITH THE MACHINE.

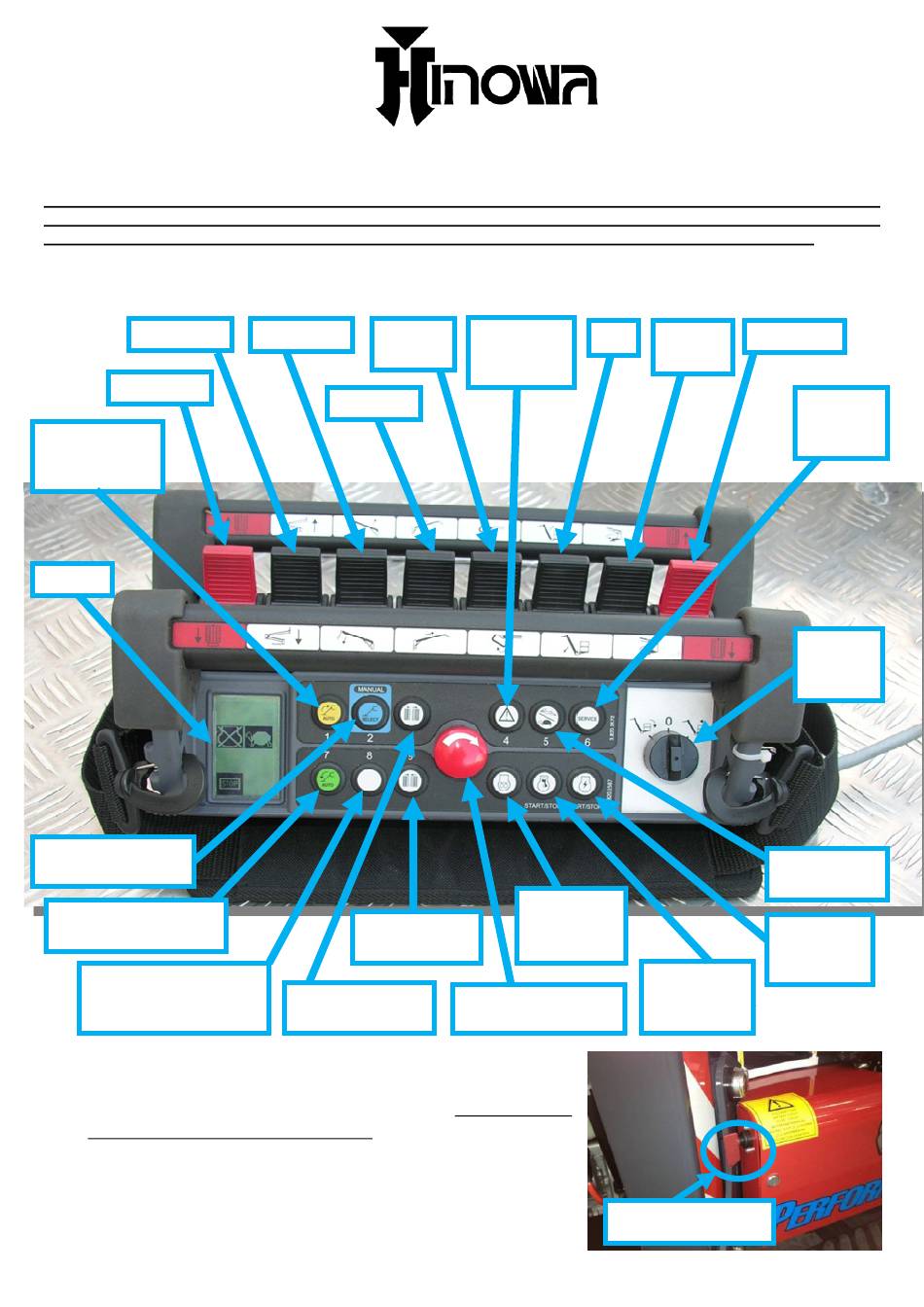

QUICK INSTRUCTIONS FOR HINOWA LIGHTLIFT 1775 AND 2010
1-2 arms
Left track
Automatic
outriggers
retraction
Display
Stabilizers manual
operating
Automatic
stabilization
Permission of aerial
part operation from
ground
To start the machine with the thermic engine, the
ignition switch should be turned ON and all the
STOP buttons should be released. The battery
cutter must be switched ON.
electric motor must both be started by pressing
the relevant buttons on the remote control (see
picture above).
FIPE1720021601
PERFORMANCE
3 arm
Basket
rotation
Extension
Undercarriage
closing
Undercarriage
widening
Thermic engine or
Gravity
Jib
emergency
descent
Engine
preheat
button
Emergency STOP
button
BATTERY CUTTER
Turret
Right track
rotation
Service
menu
selector
Basket
leveling
key
Engine speed
selector
Electric
motor
(start-stop)
Thermic
engine
(start-stop)
