ATTENTION: THIS BOOKLET DOESN'T SUBSTITUTE THE OPERATION AND
MAINTENANCE MANUAL. IT'S NECESSARY TO READ CAREFULLY AND UNDERSTAND
THE OPERATION AND MAINTENANCE MANUAL BEFORE CARRYING OUT ANY
MANOEUVRE WITH THE MACHINE.

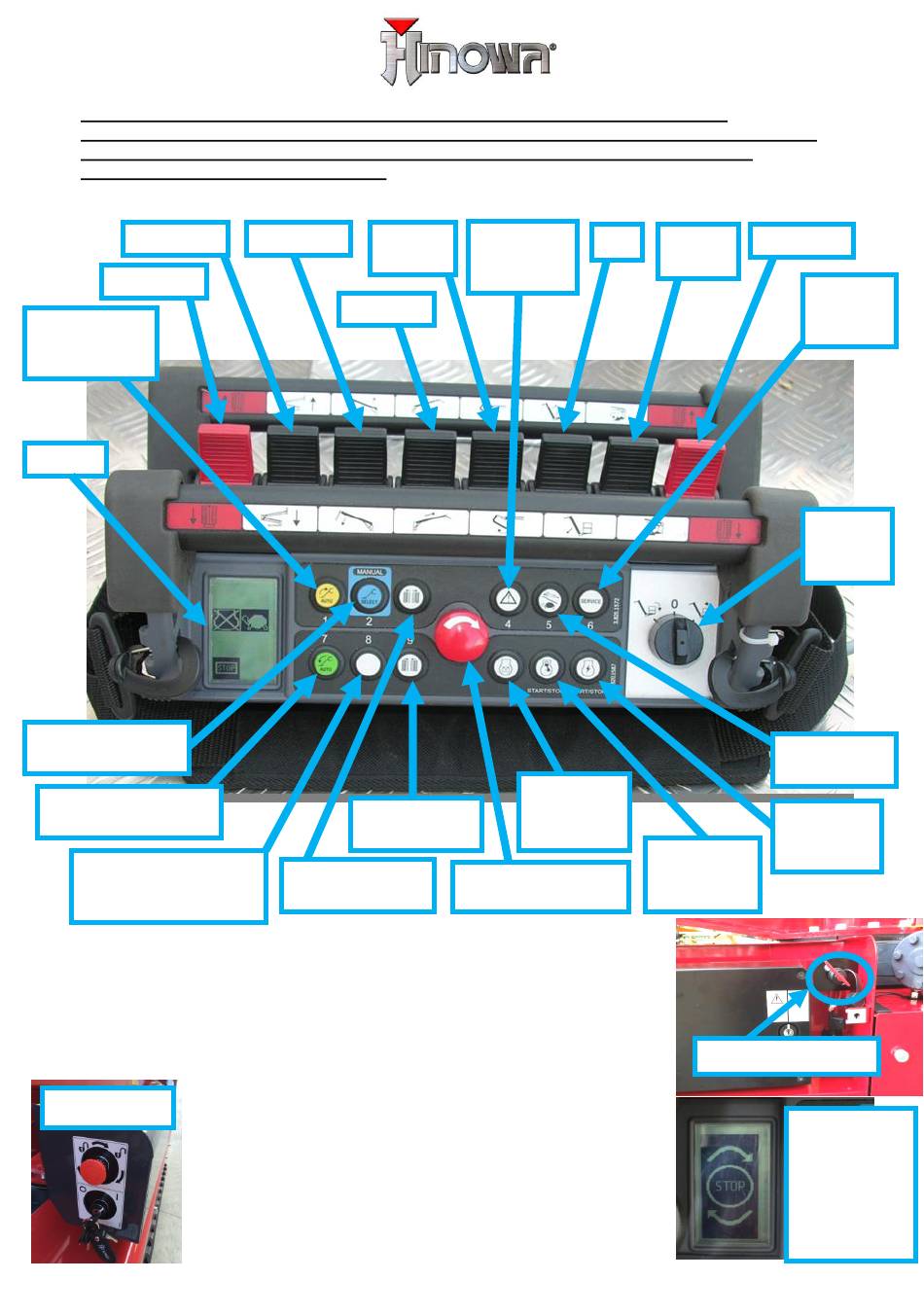

QUICK INSTRUCTIONS FOR HINOWA LIGHTLIFT 2614 PERFORMANCE
1
st
cylinder
Left track
Outriggers
automatic
retraction
Display
Stabilizers manual
operating
Automatic
stabilization
Permission of aerial
part operation from
ground
To start the machine battery cutter (under the bonnet) and
main key must be turned ON, if remote control display ask
to emergency STOP button must be pressed and released,
as reminded by the icon here on the right side. While all
the emergency stop buttons are released, thermic engine or
electric motor could be activated by pressing the relevant
buttons on the remote control (see picture
MAIN KEY
above).
Note1: On gasoline machine when the engine is
cold, once it's ignited, it's possible to warm it up
pressing the "WARM UP" button on the remote
control, engine will run faster for 20 seconds.
2
cylinder
Basket
nd
rotation
Extension
Undercarriage
closing
Undercarriage
widening
FIPE2614021701
Gravity
Jib
emergency
descent
Engine
preheat
button
Emergency STOP
button
Turret
Right track
rotation
Service
menu
selector
Basket
leveling
Engine speed
selector
Electric
motor
Thermic
(start-stop)
engine
(start-stop)
BATTERY CUTTER
PRESS AND
RELEASE
REMOTE
CONTROL
EMERGENCY
STOP
BUTTON
key
Advertisement
Table of Contents
Related Manuals for Hinowa LIGHTLIFT 2614 PERFORMANCE
Summary of Contents for Hinowa LIGHTLIFT 2614 PERFORMANCE
- Page 1 ATTENTION: THIS BOOKLET DOESN'T SUBSTITUTE THE OPERATION AND MAINTENANCE MANUAL. IT’S NECESSARY TO READ CAREFULLY AND UNDERSTAND THE OPERATION AND MAINTENANCE MANUAL BEFORE CARRYING OUT ANY MANOEUVRE WITH THE MACHINE. QUICK INSTRUCTIONS FOR HINOWA LIGHTLIFT 2614 PERFORMANCE Gravity cylinder cylinder...
- Page 2 TRACKS MOVEMENTS To move the tracks it’s necessary that all the outriggers are raised from the ground. It’s possible to move the tracks even if jib arm (last arm, see picture below) is opened but in this case basket should be empty, therefore the operator must be at the ground keeping the remote control on his hands.
- Page 3 Pressing the green button (number 7) on the remote control the machine start the automatic stabilization procedure. That procedure will be completed only when the display will shows the MACHINE STABILIZED icon (see the picture on the right). Stabilisation is the necessary condition to allow aerial part movements.
- Page 4 After work is finished close carefully and completely all the arms and perfectly align the turret looking at the yellow arrows. Than the outriggers could be lifted and the tracks moved. LIST OF DISPLAY ICONS...
