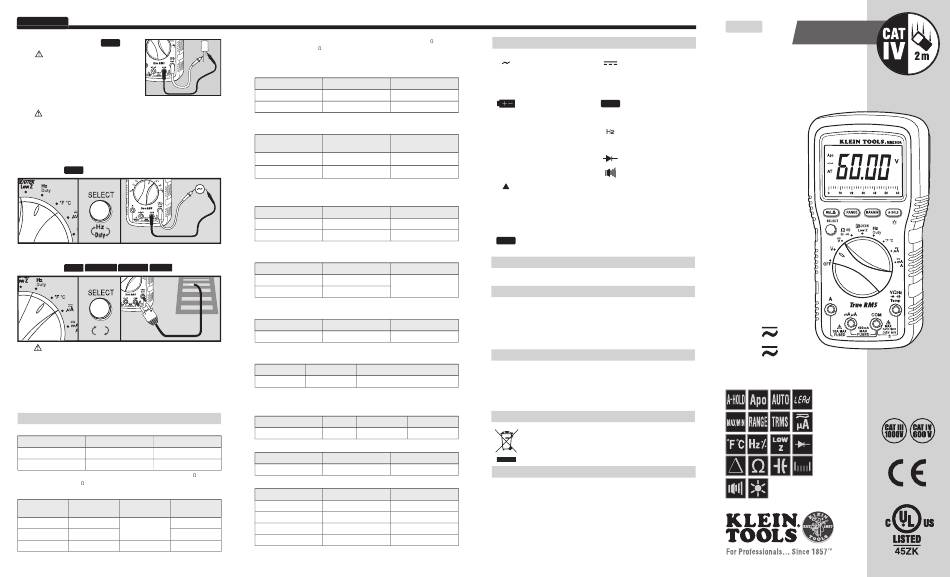

Klein Tools MM2300A Instruction Manual

ENGLISH
Capacitance Features: HOLD
Safely discharge capacitor before
measurement.
• Reading may take up to 60 seconds
for large capacitors.
6. Low Impedance (Low Z): < 600V
DO NOT use (LOW Z) mode at voltages greater than 600V.
• Press SELECT to choose AC or DC Voltage.
• Use Low Impedance (LOW Z) mode to reduce ghost voltages
• See AC/DC Voltage instruction
7. Frequency (Hz) / Duty Cycle: <500kHz
Features:
HOLD
PRESS
8. Temperature:
Features: AUTO HOLD MAX/MIN REL
HOLD
PRESS
°F
°C
Do Not apply voltage to thermocouple.
• -50° to 1000°C (-58° to 1832°F)
Testing Fuse:
• When selecting uA or mA/A functions the meter will indicate
"LEAd" if the test leads are not properly connected to the meter.
• Note: This message remaining on the screen after properly
connecting the test leads is an indication that the fuse is open.
ELECTRICAL SPECIFICATIONS
DC Voltage Measurement
Range Resolution Accuracy
600mV to 600V 0.1mV to 0.1V ± (0.5% + 4 digits)
1000V 1V ± (0.8% + 10 digits)
Overload Protection: 1000V Input Impedance (Nominal): 10M , <100pF
Input Impedance (Low Z): 3k , <200pF, up to 600V RMS
AC Voltage Measurement
Accuracy Accuracy
Range Resolution
40Hz to 400Hz 400Hz to 5kHz
600mV 0.1mV ± (2.0% +3 digits)
± (0.75% + 5 digits)
6V to 600V 1mV to 0.1V ± (2.0% +3 digits)
1000V 1V ± (0.75% + 8 digits) ± (2.0% +3 digits)*
continued on next page.
Overload Protection: 1000V RMS Input Impedance (Nominal): 10M , <100pF
Input Impedance (Low Z): 3k , <200pF, up to 600V RMS
Frequency Response: 40 to 5kHz Response: True RMS
*Accuracy for 400Hz to 1kHz range only.
DC Current Measurement
Range Resolution Accuracy
600µA to 400mA 0.1µA to 0.1mA ± (1.0% + 5 digits)
6A to 10A 1mA to 10mA ± (1.5% + 5 digits)
Overload Protection: µAmA: F440mA/1000V fuse / A Input: F11A/1000V fuse
AC Current Measurement
Accuracy
Range Resolution
40Hz to 2kHz
600µA to 400mA 0.1µA to 0.1mA ± (1.2% + 5 digits)
6A to 10A 1mA to 10mA ± (1.8% + 5 digits)
Overload Protection: µAmA: F440mA/1000V fuse / A Input: F11A/1000V fuse
Frequency: 40 to 2kHz Response: True RMS
Resistance Measurement
Range Resolution Accuracy
600Ω to 6MΩ 0.1Ω to 0.001MΩ ± (1.0% + 5 digits)
60MΩ 0.01MΩ ± (1.5% + 10 digits)
Overload Protection: 600V RMS
Capacitance Measurement
Range Resolution Accuracy
60nF 0.01nF
± (3.5% + 6 digits)
600nF to 6000µF 0.1nF to 1µF
Overload Protection: 600V RMS
Frequency Measurement
Range Resolution Accuracy
99.99Hz to 399.9kHz 0.01Hz to 0.1kHz ± (0.1% + 3 digits)
Overload Protection: 600V RMS Sensitivity: > 2.5V RMS
Duty Cycle Measurement
Range Resolution Accuracy
1.0 to 99.0% 0.1% ± (0.2% per kHz + 0.1% + 5 digits)
Overload Protection: 600V RMS Sensitivity: > 2.5V RMS
Frequency Range: <10kHz
Diode Test
Overload Protection Range Test Current Open Circuit Voltage
600V RMS 6.0V Appx. 0.25mA < 1.8V DC (typ.)
Continuity Test
Overload Protection Open Circuit Voltage Threshold (Appx.)
< 0.44V
600V RMS <40Ω
Temperature Measurement
Range Resolution Accuracy
-50 to 600°C 0.1°C ± (1.0% + 3.0°C)
600 to 1000°C 1°C ± (1.0% + 3.0°C)
-58 to 600°F 0.1°F ± (1.0% + 5.4°F)
600 to 1832°F 1°F ± (1.0% + 5.4°F)
Overload Protection: 600V RMS Thermocouple Accuracy: Not specified
Specifications subject to change.
SYMBOLS USED ON LCD
AC Measurement DC Measurement
-
AT
Negative DC Value Auto Range Active
O.L. Apo
Overload: Range Exceeded Auto Power-Off Active
Low Battery HOLD Hold Active
MIN MAX
Minimum Reading Maximum Reading
%
Duty Cycle Mode Frequency Mode
V A
Voltage Measurement Current in Amps
Ω
Resistance in Ohms Diode Test
F
Capacitance in Farads Continuity Test
n
Relative / Zero Mode Nano 10 -9
µ m
Micro 10 -6 Milli 10 -3
k M
Kilo 10 3 Mega 10 6
°F °C
Degrees Fahrenheit Degrees Celsius
LOW
A-HOLD Auto-Hold Active Low Impedance
Z
WARRANTY
www.kleintools.com/warranty
CLEANING
Clean the instrument by using a damp cloth. Do not use abrasive cleaners
or solvents.
Take care to keep the sensor lens clean at all times. Clean the lens using a soft
cloth or cotton swab with water or rubbing alcohol only, and allow the lens to
dry before use.
STORAGE
Remove the batteries when instrument is not in use for a prolonged period of
time. Do not expose to high temperatures or humidity. After a period of storage
in extreme conditions exceeding the limits mentioned in the Specifications
section, allow the instrument to return to normal operating conditions before
using it.
DISPOSAL / RECYCLE
Do not place equipment and its accessories in the trash. Items
must be properly disposed of in accordance with local regulations.
CUSTOMER SERVICE
KLEIN TOOLS, INC.
450 Bond Street
Lincolnshire, IL 60069
1-877-775-5346
customerservice@kleintools.com
www.kleintools.com
139898 Rev. 11/14 C 139898 Rev. 11/14 C
MM2300A
ENGLISH
INSTRUCTION MANUAL
Electrician's / HVAC
TRMS Multimeter
• TRMS
• AUTO / MANUAL
RANGE
• AUTO HOLD
• MAX / MIN
• BAR GRAPH
• BACKLIGHT
• LEAD HOLDER
• 3-5/6 DIGIT
6000 COUNT LCD
1000V
10A
