- Page 1 Instruction Manual MM2300 ENGLISH • TRMS • BACKLIGHT • BAR GRAPH • LEAD HOLDER • MAX / MIN • 3-5/6 DIGIT 6000 COUNT LCD • AUTO / MANUAL RANGE • AUTO HOLD TRMS HOLD RANGE AUTO A-HOLD 99 Washington Street...

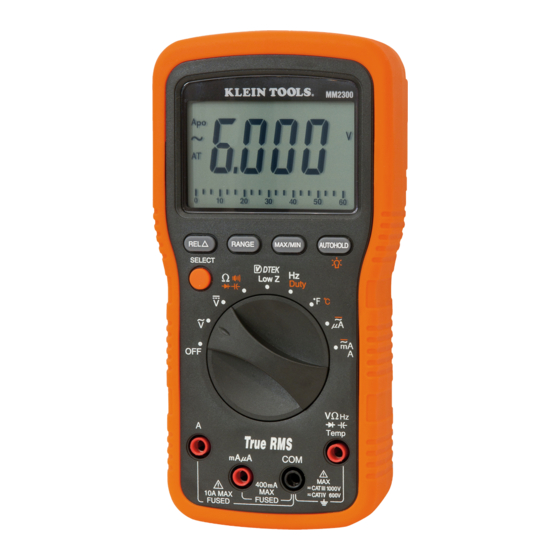

- Page 2 ENGLISH MM2300 Instruction Manual GENERAL SPECIFICATIONS The Klein Tools MM2300 is a True RMS, auto-ranging multimeter. It measures AC/DC voltage, low impedance voltage, AC/DC current, resistance, capacitance, frequency, duty cycle, and temperature. It can also test diodes and continuity. •...
- Page 3 FEATURE DETAILS MM2300 ® AUTO/HOLD Do not attempt to measure more than 1000V. Do not attempt to measure more than 600V on (LOW Z) setting. Do not attempt to measure more than 400mA. Do not attempt to measure more than 10A.
- Page 4 • This meter uses 440mA/1000V (69192) and 11A/1000V (69191) fast blow fuses. Magnetic Hanger Accessory (Optional, Sold Separately) • Slide magnetic adapter into protective rubber boot. MM2300 • Attach instruments to metal for hands-free use ® Bar Graph • The bar graph shows an approximate analog representation of a measurement.
- Page 5 AC/DC Current (large): <10A Features: HOLD RANGE MAX/MIN AUTO HOLD Do not attempt to measure more than 10A • Start with this setting if current level is unknown. • Meter will automatically select "A" when red lead is connected to "A"...
- Page 6 ENGLISH Capacitance Features: HOLD Safely discharge capacitor before measurement. • Reading may take up to 60 seconds for large capacitors. Low Impedance (Low Z): < 600V DO NOT use (LOW Z) mode at voltages greater than 600V. • Press SELECT to choose AC or DC Voltage. •...
- Page 7 Overload Protection: 1000V RMS Input Impedance (Nominal): 10MΩ, <100pF Input Impedance (Low Z): 3kΩ, <200pF, up to 600V RMS Frequency Response: 40 to 5kHz Response: True RMS *Accuracy for 400Hz ~ 1kHz range only. DC Current Measurement Range Resolution Accuracy 600µA ~ 400mA 0.1µA ~ 0.1mA ±...
- Page 8 Auto-Hold Active Low Impedance A-HOLD WARRANTY See www.kleintools.com, contact Klein Tools at 1-877-775-5346, or visit a distributor for warranty information. CLEANING Turn instrument off and disconnect test leads. Clean the instrument by using a damp cloth. Do not use abrasive cleaners or solvents.
