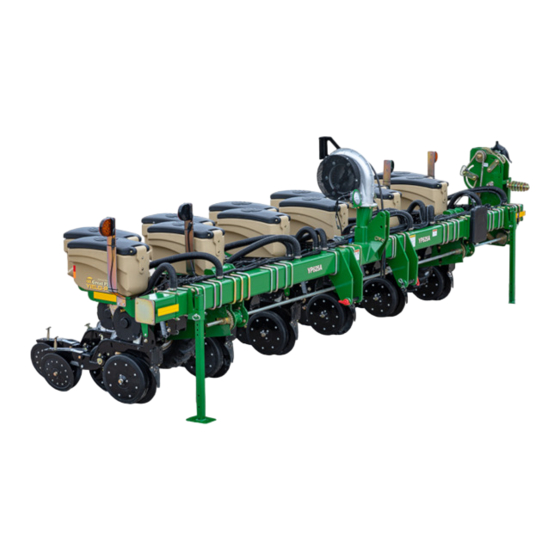

GREAT PLAINS YP-625 Operator's Manual

4- 6- 8- and 10-row 3-point air planters with seed meters
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Table of Contents
4- 6- 8- and 10-Row 3-Point Yield-Pro
Read the operator manual entirely. When you see this symbol, the
subsequent instructions and warnings are serious - follow without
exception. Your life and the lives of others depend on it!
Illustrations may show optional equipment not supplied with standard unit, or
may show similar pull-type models and their options.
ORIGINAL INSTRUCTIONS
© Copyright 2017
Table of Contents
Index
Operator Manual
YP-425, 625, 825, & 1025-A3P
®
®
with Air-Pro
Manufacturing, Inc.
www.greatplainsmfg.com
Printed 2018-07-23
Index
Air Planters
Seed Meters
29997
EN
401-652M
