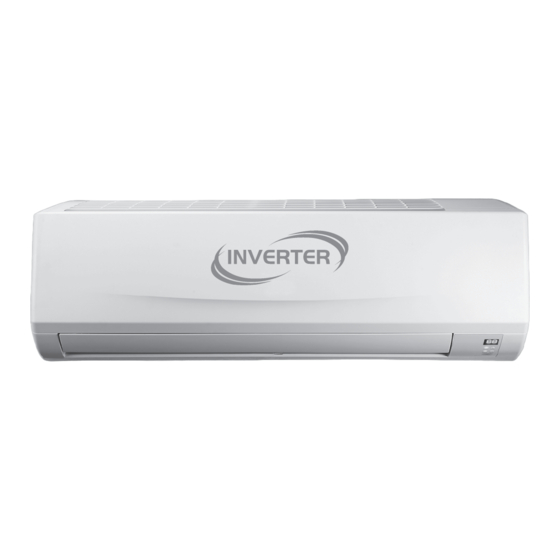

- Page 1 INVERTER MINI SPLIT HIGH-WALL DUCTLESS AIR CONDITIONING & HEATING SYSTEM OWNER'S MANUAL + INSTALLATION GUIDE...
-
Page 3: Table Of Contents
Owner’s Manual Contents Operation Notices Precautions......................1 Parts name ......................6 Screen Operation Guide Buttons on remote controller .................7 Introduction for icons on display screen ..............7 Introduction for buttons on remote controller ............8 Function introduction for combination buttons .............12 Operation guide . -
Page 4: Precautions
Precautions WARNING Operation and Maintenance This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. - Page 5 Precautions WARNING Maintenance must be performed by qualified professionals. Otherwise, it may cause personal injury or damage. Do not repair air conditioner by yourself. It may cause electric shock or damage. Please contact dealer when you need to repair air conditioner. Do not extend fingers or objects into air inlet or air outlet.
- Page 6 Precautions WARNING Attachment Installation must be performed by qualified professionals. Otherwise, it may cause personal injury or damage. Must follow the electric safety regulations when installing the unit. According to the local safety regulations, use qualified power supply circuit and circuit break. Do install the circuit break.
- Page 7 Precautions WARNING Do not put through the power before finishing installation. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. The temperature of refrigerant circuit will be high, please keep the interconnection cable away from the copper tube.
- Page 8 Precautions WARNING For the air conditioner with plug, the plug should be reachable after finishing installation. For the air conditioner without plug, an circuit break must be installed in the line. If you need to relocate the air conditioner to another place, only the qualified person can perform the work.
-
Page 9: Parts Name
Parts Name Indoor Unit panel air inlet air outlet horizontal louver display temp. indicator (Note: This dispaly is not available for some models.) drying indicator cooling indicator AUTO X-FAN HOUR ON/OFF power indicator heating indicator ON/OFF MODE receiver window aux.button X-FAN TEMP TIMER... -
Page 10: Buttons On Remote Controller
Buttons on remote controller ON/OFF button AUTO HEALTH X-FAN MODE button HUMIDITY FILTER +/- button TURBO FAN button HOUR ON/OFF button button ON/OFF MODE HEALTH SAVE button X-FAN button (Note: X-FAN is same with BLOW) TEMP button TIMER button X-FAN TEMP TIMER TURBO button... -
Page 11: Introduction For Buttons On Remote Controller
Introduction for buttons on remote controller Note: After putting through power, air conditioner will give out a sound and operation indicator " " is ON (red indicator). You can operate the air conditioner through the remote controller. At ON status, after each pressing button on remote controller, the signal icon " "... - Page 12 Introduction for buttons on remote controller Note: ded by indoor ambient temperature) Temperature setting range on remote controller: 60.8~86°F (16~30°C). Fan speed setting range: auto, low speed, medium speed and high speed. "+" or "-" button After each pressing of "+" or "-" button, it can increase or decrease set temper- ature 33.8°F(1°C) .
- Page 13 Introduction for buttons on remote controller Note: When selecting " " with remote controller, it’ When selecting " will stop at that position as shown by the ’ " Note: HEALTH SAVE button HEALTH FUNCTION: After pressing HEALTH button, remote controller will switch circularly as below: "HEAL When selecting "HEALTH"...
- Page 14 Introduction for buttons on remote controller SAVE function: Under cool mode, press SAVE button and the unit will operate under SAVE mode. Dual-8nixie tube on remote controller disp Air conditioner will operate at VE button again to exit SAVE mode. Air conditioner turn back to original set speed and set temperature. This function is applicable to partial of models.
-
Page 15: Function Introduction For Combination Buttons
Introduction for buttons on remote controller hour. When holding "+" or "-" button, 2s later, the time will change quickly until to Cancel TIMER OFF: Press "TIMER" button again under TIMER OFF status. At OFF status, press this button once can set TIMER ON. Please refer to TIMER off for detailed operation. -
Page 16: Operation Guide
Operation guide 1. After putting through the power, press " " button on remote controller to ON/OFF turn on the air conditioner. 2. Press " " button to select your required mode: AUTO, COOL, DRY, FAN, MODE HEAT. 3. Press "+" or "-" button to set your required temperature. (Temperature can’t be adjusted under auto mode). -
Page 17: Emergency Operation
Emergency operation If remote controller is lost or damaged, please use auxiliary button to turn on or turn off the air conditioner. The operation in details are as below: conditioner. When the air conditioner is turned on, it will operate under auto mode. - Page 18 Clean and maintenance Open panel ● Use dust catcher or water to Pull out the panel to a certain clean the filter. ● When the filter is very dirty use the water (below 113°F(45°C)) to clean it, and then put it in a shady and cool place to dry.
- Page 19 Clean and maintenance NOTICE: Checking before use-season 1. Check whether air inlets and air outlets are blocked. 2. Check whether circuit break, plug and socket are in good condition. 4. Check whether mounting bracket for outdoor unit is damaged or corroded. If yes, please contact dealer.
-
Page 20: Malfunction Analysis
Malfunction analysis General phenomenon analysis Please check below items before asking for maintenance. If the malfunction still Phenomenon Check items Solution (such as static electricity, stable the plug after about 3min, and voltage)? then turn on the unit again. within the signal receiving range? Indoor unit can’t receive... - Page 21 Malfunction analysis Phenomenon Check items Solution fuse is burnt out? circuit break or fuse. Air condit- ioner can’t operate after stopping operation? on the unit again. for remote controller is correct? Mist is em- rapidly. After a while, indoor itted from temperature and humidity will indoor unit’s idity is high?
- Page 22 Malfunction analysis Phenomenon Check items Solution Odours are such as furniture and cigarette, emitted etc. Air conditioner such as thunder, wireless power, and then turn on the operates nor- devices, etc. unit again. mally suddenly Outdoor ating mode, it may generate unit has vapor, which is a normal vapor...
- Page 23 Malfunction analysis Error Code WARNING...
-
Page 24: System Operation
Prolonged operation may cause ice to form on the outdoor coil and block airflow, reducing the system’s heating capacity. If the mini split microcomputer detects ice on the outdoor coil it will switch automatically to defrost mode to melt the ice and clear the coil. During defrost mode, heating will be discontinued and the mini split system will flash the Defrost indicator. -
Page 25: Energy Saving Tips
ENERGY SAVING TIPS 1. Relaxing room temperature at night is OK: During the nighttime hours you don’t require the same level of conscious cooling or heating. Try using Sleep Mode to gradually relax room temperature and allow the unit to run less and save energy. 2. - Page 27 Installation Manual Content Installation Notice System Requirements ............25 Piping Requirements Installation dimension diagram ................26 Tools for installation .....................27 Selection of installation location ................27 Requirements for electric connection ..............28 Installation Installation of indoor unit..................29 Installation of outdoor unit ..................34 Vacuum pumping ....................38 Leakage detection ....................38 Check after installation ..................39...
-
Page 28: System Requirements Piping Requirements
System Requirements Piping Requirements PIPE SIZE in (mm) Unit Size Voltage Liquid Line Suction/Gas Line (BtuH) 9,000 115v - 1ph 60hz 1/4 (6) 3/8 (9.5) 12,000 115v - 1ph 60hz 1/4 (6) 3/8 (9.5) 9,000 208/230v - 1ph 60hz 1/4 (6) 3/8 (9.5) 12,000 208/230v - 1ph 60hz... -
Page 29: Installation Dimension Diagram
Installation dimension diagram Space to the wall 6in (0,15m) 6in (0,15m) Space to the wall Drainage pipe... -
Page 30: Tools For Installation
Tools for installation 1 Level meter 2 Screw driver 3 Impact drill 4 Drill head 5 Pipe expander 6 Torque wrench 7 Open-end wrench 8 Pipe cutter 9 Leakage detector 10 Vacuum pump 11 Pressure meter 12 Universal meter 13 Inner hexagon spanner 14 Measuring tape Note: Selection of installation location... -
Page 31: Requirements For Electric Connection
Requirements for electric connection Safety precaution 1. Must follow the electric safety regulations when installing the unit. circuit break. 3. Make sure the power supply matches with the requirement of air conditioner. Unstable power supply or incorrect wiring or malfunction. Please install proper power supply cables before using the air conditioner. -
Page 32: Installation Of Indoor Unit
Installation of indoor unit Step one: choosing installation location rm it with the client. Step two: install wall-mounting frame 1. Hang the wall-mounting frame on the wall; adjust it in horizontal position with the plastic expansion particles in the holes. 3. - Page 33 Installation of indoor unit Indoor outdoor Note: opening the hole. 5-10 The plastic expansion particles are locally. Step four: outlet pipe 1. The pipe can be led out in the 2. When select leading out the pipe direction of right, rear right, left or from left or right, please cut off the rear left.
- Page 34 Installation of indoor unit Hex nut diameter Tightening torque (N . m) open-end wrench 15~20 30~40 union nut 45~55 pipe 60~65 torque wrench 70~75 indoor pipe 4. Wrap the indoor pipe and joint of con- nection pipe with insulating pipe, and then wrap it with tape.
- Page 35 Installation of indoor unit cable-cross hole 2. Make the power connection wire go through the cable-cross hole at the back power connection wire the front side. with wire clip. 09、12K: (230V),(115V) N(1) Wiring Cover blue black brown yellow-green N(1) Outdoor unit connection 18K 24K: (230V) N(1) N(1)
- Page 36 Installation of indoor unit Step eight: bind up pipe 1. Bind up the connection pipe, power drain hose connection pipe band cord and drain hose with the band. indoor and outdoor power cord indoor unit pipe indoor power cord liquid pipe 3.
-
Page 37: Installation Of Outdoor Unit
Installation of outdoor unit (select it according to the actual installation situation) 1. Select installation location according to the house structure. 2. Fix the support of outdoor unit on the selected location with expansion screws. Note: installing the outdoor unit. Make sure the support can withstand at least four times of the unit weight. - Page 38 Installation of outdoor unit foot holes 1. Place the outdoor unit on the support. 2. Fix the foot holes of outdoor unit with bolts. foot holes Step four: connect indoor and outdoor pipes 1. Remove the screw on the right handle of outdoor unit screw and then remove the handle.
- Page 39 Installation of outdoor unit 1. Remove the wire clip; connect the power connection wire and signal control wire (only for cooling and heating unit) to the wiring terminal according to the color; Cable Cross 09 12K (230V) Handle Plate Sub-assy N(1) blue black brown...
- Page 40 Installation of outdoor unit Step six: neaten the pipes 1. The pipes should be placed along the wall, . Min. semidiameter of bending the pipe is 4in(10cm). 2. If the outdoor unit is higher than the wall wall pipe before pipe goes into the room, in room.
-
Page 41: Vacuum Pumping
Vacuum pumping Use vacuum pump 1. Remove the valve caps on the liquid valve and gas liquid valve piezometer valve and the nut of refri- gas valve gerant charging vent. refrigerant charging 2. Connect the charging hose valve cap vent gerant charging vent of gas nut of refrigerant valve and then connect the... -
Page 42: Check After Installation
Check after installation Items to be checked Possible malfunction The unit may drop, shake or emit noise. Have you done the refrigerant leakage test? (heating) capacity. It may cause condensation and water dripping. It may cause condensation and water Is water drained well? dripping. -
Page 43: Configuration Of Connection Pipe
1. Standard length of connection pipe 16,5ft ( ) 25ft ( ) 26,5ft ( 2. Min. length of connection pipe is 9,8ft (3m). 3. Max. length of connection pipe and max. high difference. Max length Max length Cooling Max height Cooling Max height of connec-... - Page 44 Additional refrigerant charging amount for R410A Diameter of connection pipe Outdoor unit throttle Liquid pipe(in) Gas pipe(in) Cooling only(g/m) Cooling and heating(g/m)
-
Page 45: Pipe Expanding Method
Pipe expanding method Note: Improper pipe expanding is the main cause of refrigerant leakage. Please expand the pipe according to the following steps: A: Cut the pipe E: Expand the port the distance of indoor unit and hard outdoor unit. mold expander pipe... -
Page 46: Start-Up And Troubleshooting
START-UP AND TROUBLESHOOTING Items Explained With Aid Of Owner’s Manual: 1. How to turn system on and off; selecting COOLING, HEATING and other operating modes; setting a desired temperature; setting the timer to automatically start and stop system operation; and all other features of the Remote Control and display panel.
