Split Air Conditioner Thank you for choosing our product. For proper operation, please read and keep this manual carefully. If you have lost the Owner’s Manual, please contact the local agent or visit sat.eurofredgroup.com.
Content Operation Notices Precautions......................1 Parts Name......................6 ScreenOperation Guide ...................7 Remote control operation Emergency operation ..................11 Maintenance Clean and Maintenance..................11 Malfunction Malfunction analysis ...................15 This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervi- sion or instruction concerning use of the appliance by a person responsible for their safety.
Precautions WARNING Operation and Maintenance • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory ormental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
Page 5
Precautions WARNING • Maintenance must be performed by qualified professionals. Otherwise, it may cause personal injury or damage. • Do not repair air conditioner by yourself. It may cause electric shock or damage. Please contact dealer when you need to repair air conditioner. •...
Page 6
Precautions WARNING Attachment • Installation must be performed by qualified professionals. Otherwise, it may cause personal injury or damage. • Must follow the electric safety regulations when installing the unit. • According to the local safety regulations, use qualified power supply circuit and circuit break. •...
Page 7
Precautions WARNING • Do not put through the power before finishing installation. • If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. • The temperature of refrigerant circuit will be high, please keep the interconnection cable away from the copper tube.
Page 8
Precautions WARNING • For the air conditioner with plug, the plug should be reachable after finishing installation. • For the air conditioner without plug, an circuit break must be installed in the line. • If you need to relocate the air conditioner to another place, only the qualified person can perform the work.

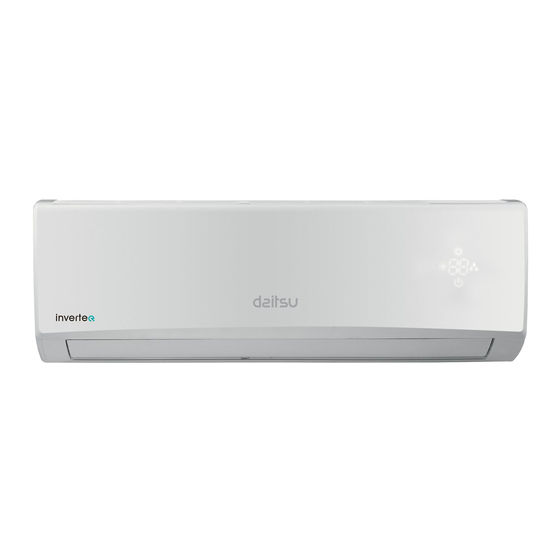

Parts Name Indoor Unit air inlet panel filter aux.button horizontal louver cooling power receiver air outlet window indicator indicator display drying heating temp. indicator indicator indicator (Display content or position may be different from above graphics, please refer to actual products) NOTICE: Actual product may be different from above graphics, please refer to actual products.
Remote control operation Remote control name and functions Note: Make sure that there is nothing between the receiver and the remote control; do not drop the remote control; do not wet the remote control with any liquid or expose it directly to sunlight, or place it near any heat source.
Page 11
Remote control operation Remote control name and functions Note: this is a general remote control manual, and it can be used for multi-function air conditioners; for some functions, not included in this model, if the corresponding key is pressed on the remote control, the unit will continue operating in its original status. + Key To increase the programmed temperature.
Page 12
Remote control operation Remote control name and functions Note: this is a general remote control manual, and it can be used for multi-function air conditioners; for some functions , not included in this model, if the corresponding key is pressed on the remote control, the unit will continue operating in its original status. TIMER ON +TIMER ON Key Key for selecting the switch on function for...
Page 13
Remote control operation Operating guide. General functions 1- Press ON/OFF to switch on the unit. (Note: When the unit is switched off, the slats close automatically) 2- Press the MODE key to select the desired mode or, press COOL or HEAT to go directly into these respective modes. 3- Select the desired temperature using the keys + and –...
Page 14
Remote control operation LOCK function: Use this function to lock and unlock the keyboard. The icon indicates that it is locked. Press the keys + and – simultaneously to lock or unlock. Adjusting the air direction – SWING: 1- Press the Swing key continuously for more than 2 seconds, and the unit baffles will move and stop, maintaining their position when the key is released.
Emergency operation If remote controller is lost or damaged, please use auxiliary button to turn on or turn off the air conditioner. The operation in details are as below: As shown in the fig. Open panel, press aux. button to turn on or turn off the air conditioner.
Page 16
Clean and maintenance Clean filter Open panel Clean filter Pull out the panel to a certain ● Use dust catcher or water to angle as shown in the fig. clean the filter. ● When the filter is very dirty, use the water (below 45ºC ) to clean it, and then put it in a shady and cool place to dry.
Page 17
Clean and maintenance NOTICE: Checking before use-season 1. Check whether air inlets and air outlets are blocked. 2. Check whether air switch, plug and socket are in good condition. 3. Check whether filter is clean. 4. Check whether mounting bracket for outdoor unit is damaged or corroded. If yes, please contact dealer.
Malfunction analysis General phenomenon analysis Please check below items before asking for maintenance. If the malfunction still can’t be eliminated, please contact local dealer or qualified professionals. Phenomenon Check items Solution ● Whether it’s interfered ● Pull out the plug. Reinsert the severely (such as static plug after about 3 min, and electricity,stable voltage)?
Page 19
Malfunction analysis Phenomenon Check items Solution ● Power failure? ● Wait until power recovery. ● Is plug loose? ● Reinsert the plug. ● Air switch trips off or fuse is ● Ask professional to replace burnt out? air switch or fuse. Air condi- ●...
Page 20
Malfunction analysis Phenomenon Check items Solution ● Whether there’s odour ● Eliminate the odour source. Odours are source, such as furniture and ● Clean the filter. emitted cigarette, etc. Air condition- ● Whether there’s interference, ● Disconnect power, put back er operates such as thunder, wireless power, and then turn on the...
