Page 1

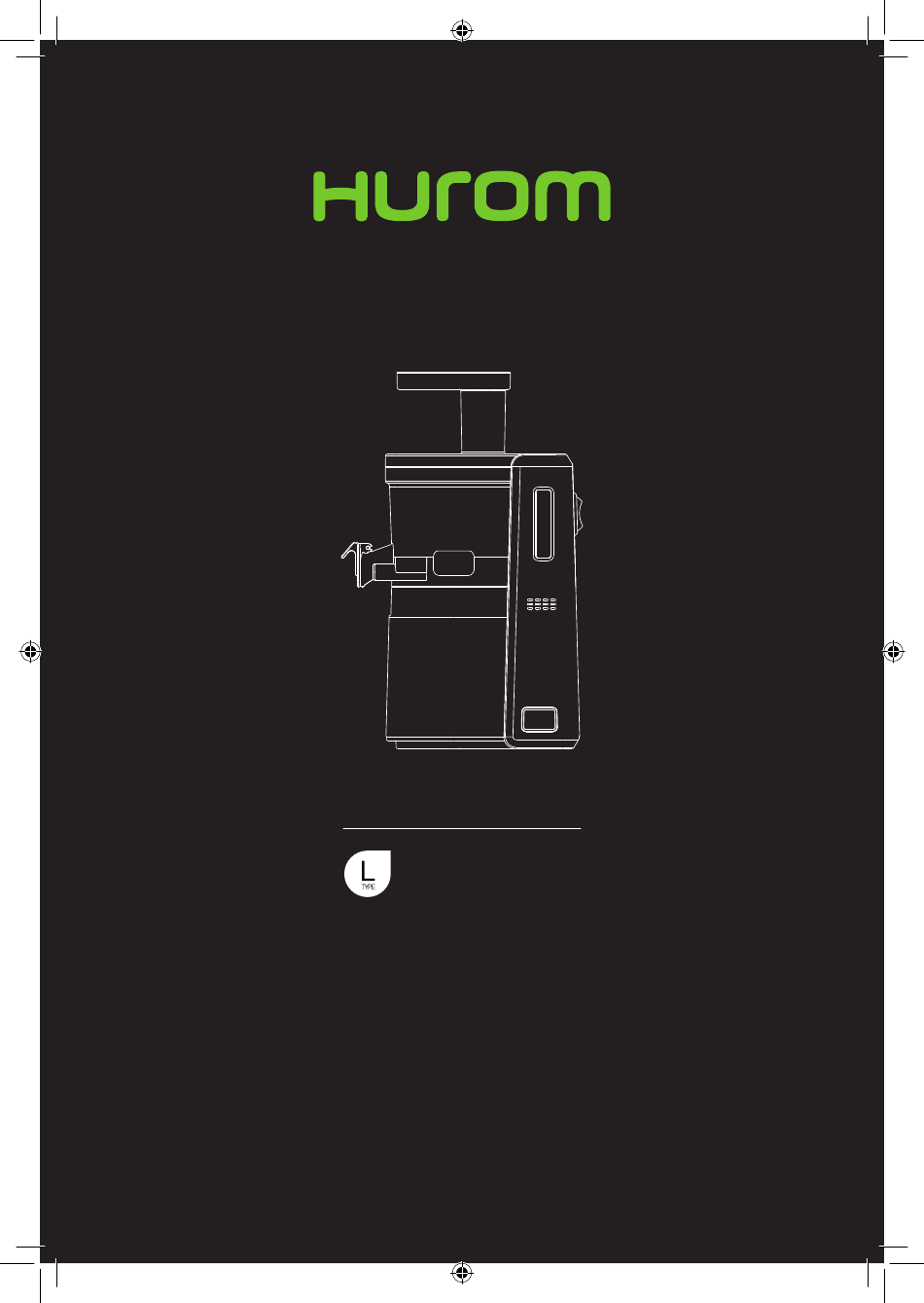

HW Series Instruction Manual Hurom Juicer (Warranty Included) 01. Read ‘Precautions for safe use’ (Page 4) and use the appliance properly. 02. After finish reading the manual, keep it in a convenient location for future reference. 03. Do not use it abroad which has different power supply and voltage.
CONTENTS Cautions during operation Precautions for safe use How to prepare ingredients / Part life cycle Terms of parts How to assemble How to use How to use control lever How to use control lever by ingredients When squeezing screw stops during operation Before requesting for repair How to Disassemble and Clean Before requesting repair...
Cautions during operation · For stalk vegetables with strong fiber such as water parsleys, celery etc. should be cut into small size about 3~4cm before putting into the hopper chute. · Fruits with hard seeds such as persimmon, Japanese apricot, lemon, plum, peach etc. that are hard to chew with our teeth should be taken out before extraction.
Precautions for safe use 1. You should read <Precautions for safe use> 2. You should follow <Precautions for safe use> 3. Precautions are classified as following CauTION When violating the labeling require- WarNINg When violating the labeling require- ment, it may cause serious injury or damage to ment, it may cause serious injury or death.
Page 5
Precautions for safe use CauTION When violating the labeling requirement, it may cause serious injury or damage to the appliance. Do not operate without loCking the hopper properly. It may cause an injury or a failure. when DeteCting a gas leak, Do not insert the power CorD into its slot. open the winDow to Ventilate Fully anD iMMeDiately.
How to prepare ingredients apple, pear, kiwi, oriental melon Fruits like apple, pear, kiwi, oriental melon, etc. put them with seeds and peels. However, apple seeds contain toxicity, so it better to remove them. Pomegranate, grapes Separate each grape from the cluster. Peel the pomegranate and use flesh only. Watermelon, orange, grapefruit Peel off the skin of watermelon, orange, grapefruit and cut them into right size.
Terms of parts Pusher 01 Hopper Chute Hopper Small Cleaning Brush Squeezing Screw Cleaning Brush Fine Strainer Coarse Strainer 06 Spinning Brush Pulp Container 16 Silicon Brush Chamber 17 Juice Container Pulp Outlet Control Lever Juice Outlet Juice Cap Body Safety Sensor (▲) 19 Display Operating Switch...
How to assemble STEP STEP Place the assembled parts from [1 STEP] into the chamber just like the same place in the picture. Check after putting in The hoppe will not close properly when the spinning brush is not fit in completely. Assemble the strainer under the groove of spinning brush as shown in the picture.
Page 9
How to assemble ① STEP STEP ②` Make sure the control lever is placed in close button.The chamber set will not fit into the body if the control lever is placed in Open position. After putting the hopper on the chamber, turn Disassemble is in it clockwise until it is locked completely.
How to use Place the lever position before operating. Press [ON] button. 작동스위치 The light on [ON] will turn on. 정회전 Press 누름 [ON] 정회전 [REV] 역회전 Reverse 역회전 Put ingredients gradually in the hopper chute and press with the pusher. Put the control lever in [ ] position before putting the last ingredients.
How to use control lever How to use control lever You can open and close the extraction packing easily. Preparation, Extraction Mode For extracting general ingredients, placing the control lever in [ ] position is good enough. However, for juicing the fruits with hard seeds, such as grapes, rubus coreanus, and pomegranates, place the control lever into close and switch in ] position when the juice begins to...
When squeezing screw stops during operation Press [REV] button on the operating switch for 3~5 sec- onds and stop it. Repeat this 2~3times. [REV] is the button to push back the ingredients upward. [REV] only works while pressing the button, and the rotation of the squeezing <rEV>...
How to Disassemble and Clean 01. Unplug the power cord with dry hands after the unit has been completely stopped. 02. Remove the chamber set from the main body. Twist the chamber cover to open and lift up the parts in order to disassemble the unit. 03.
Page 15
How to Disassemble and Clean : Silicone Juice cap packing Open the juice cap, hold the chamber and juice cap with one hand, and remove the juice cap packing with your other hand to disassemble. Please be careful not to drop or damage the juice cap and chamber when disassembling the unit.
Please check the following before requesting repairs. For requests or inquiries on A/S while using the unit, please contact us through our customer service center (TEL) 1544-7011), or our website (http://www.hurom.co.kr). Please check the serial number or barcode when you request A/S or components.
Page 17
Before requesting repair 08. Juice is leaking above the main device. Did you insert too many ingredients? If more ingredients are inserted than can be discharged, the packing may be pushed lightly, and juice may leak into the gap. Do not forcibly insert a large amount at once, but split the amount to extract juice.
Hurom provides warranty for one (1) year for the motor, chamber, and squeezing screw(except other parts) from the date of purchase by the original purchaser. Coverage is valid only with proof of pur- chase from an Authorized Local Distributor.
