Polychem PHT1401 Operation Manual And Spare Parts List page 11

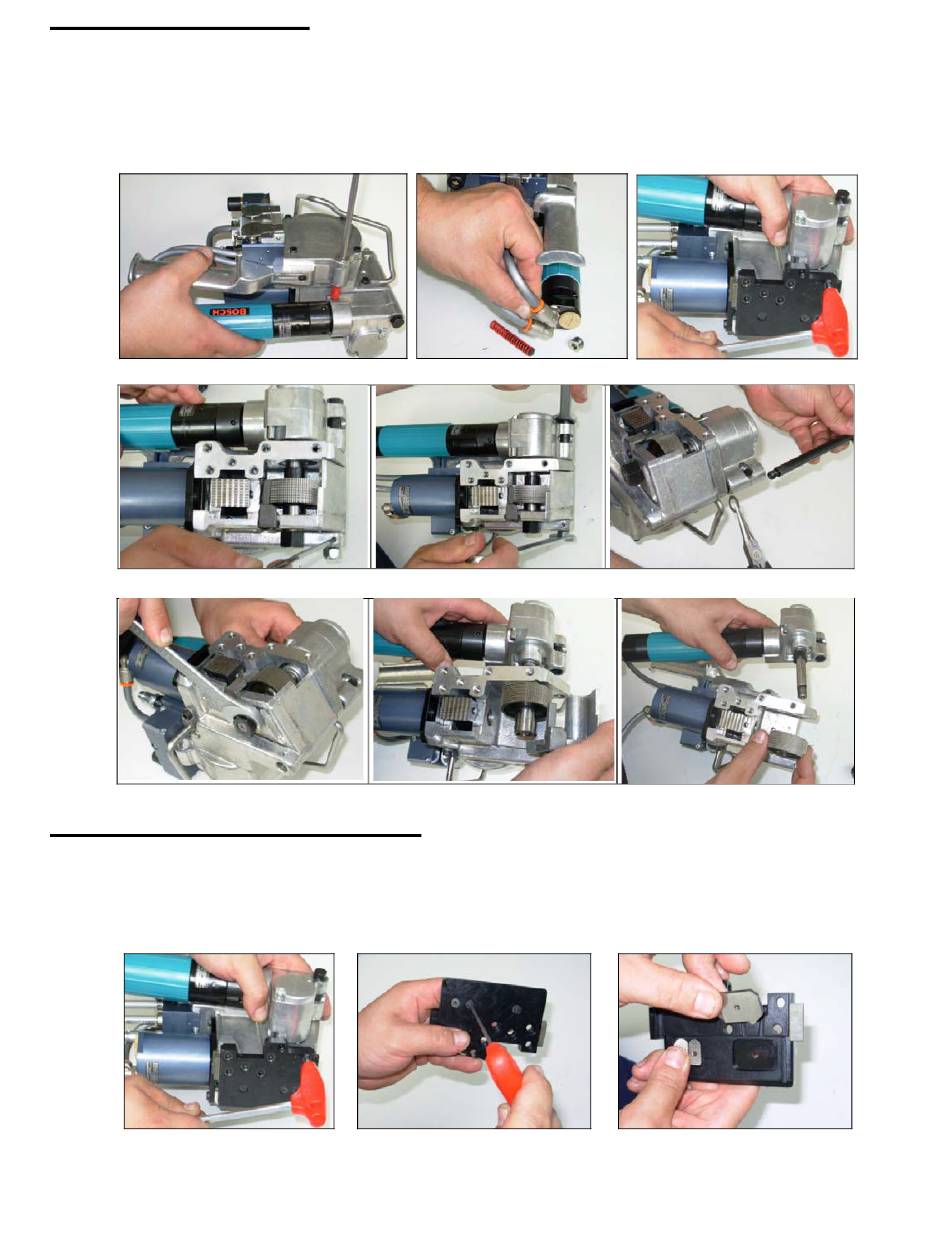

Feed wheel replacement
Remove the pushing spring (pic.H1), disconnect the motor pipes (pic.H2), remove the 6 bottom plate
screws (pic.H3), unscrew the holding screw (pic.H4), remove the nut on the pivot shaft (pic.H5) and
remove the shaft from main frame (pay attention to the shim) (pic H6). Remove the feed wheel shaft
nut (pic.H7) Remove the front cover, bushing, spacers, and feed wheel (pic. H8); replace the worn
part (pic. H9). Reassemble in the opposite order by starting with the feed wheel shaft parts.
( H1 )
( H4 )
( H7 )
Bottom plate grippers replacement
Remove the 6 bottom plate screws (pic.L1), unscrew the gripper screws (pic.L2), replace the parts
(pic.L3), and reassemble in opposite order.
( L1 )
( H2 )
( H5 )
( H8 )
( L2 )
( H3 )
( H6 )
( H9 )
( L3 )
