After connecting the sensor, connect the the power supply cable to the USB connector, as shown in the picture
below and the Noise Level Sensor will power up. Then, connect one end of data cable to the Sound Level Sensor
and the other one to the associated Plug & Sense! Smart Cities PRO device.
Power supply
cable
Data cable

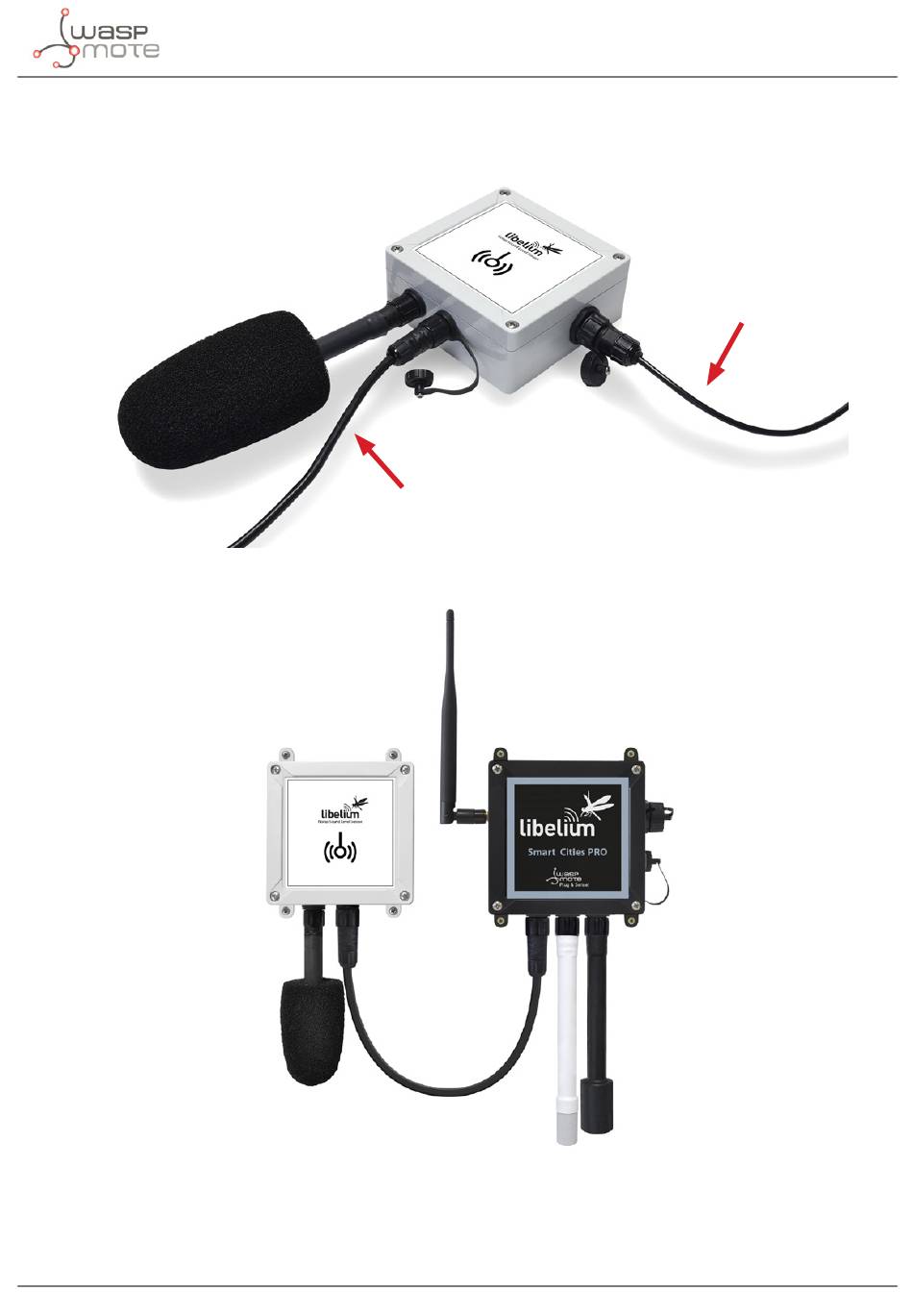

Figure: Connecting the data cable and the power supply cable to the Noise Level Sensor
Figure: Connecting the data cable to the associated Plug & Sense! Smart Cities device
