3.14. Models

There are some defined configurations of Waspmote Plug & Sense! depending on which sensors are going to be
used. Waspmote Plug & Sense! configurations allow to connect up to six sensor probes at the same time.
Each model takes a different conditioning circuit to enable the sensor integration. For this reason each model
allows to connect just its specific sensors.
This section describes each model configuration in detail, showing the sensors which can be used in each case
and how to connect them to Waspmote. In many cases, the sensor sockets accept the connection of more than
one sensor probe. See the compatibility table for each model configuration to choose the best probe combination
for the application.
It is very important to remark that each socket is designed only for one specific sensor, so they are not
interchangeable. Always be sure you connected probes in the right socket, otherwise they can be damaged.

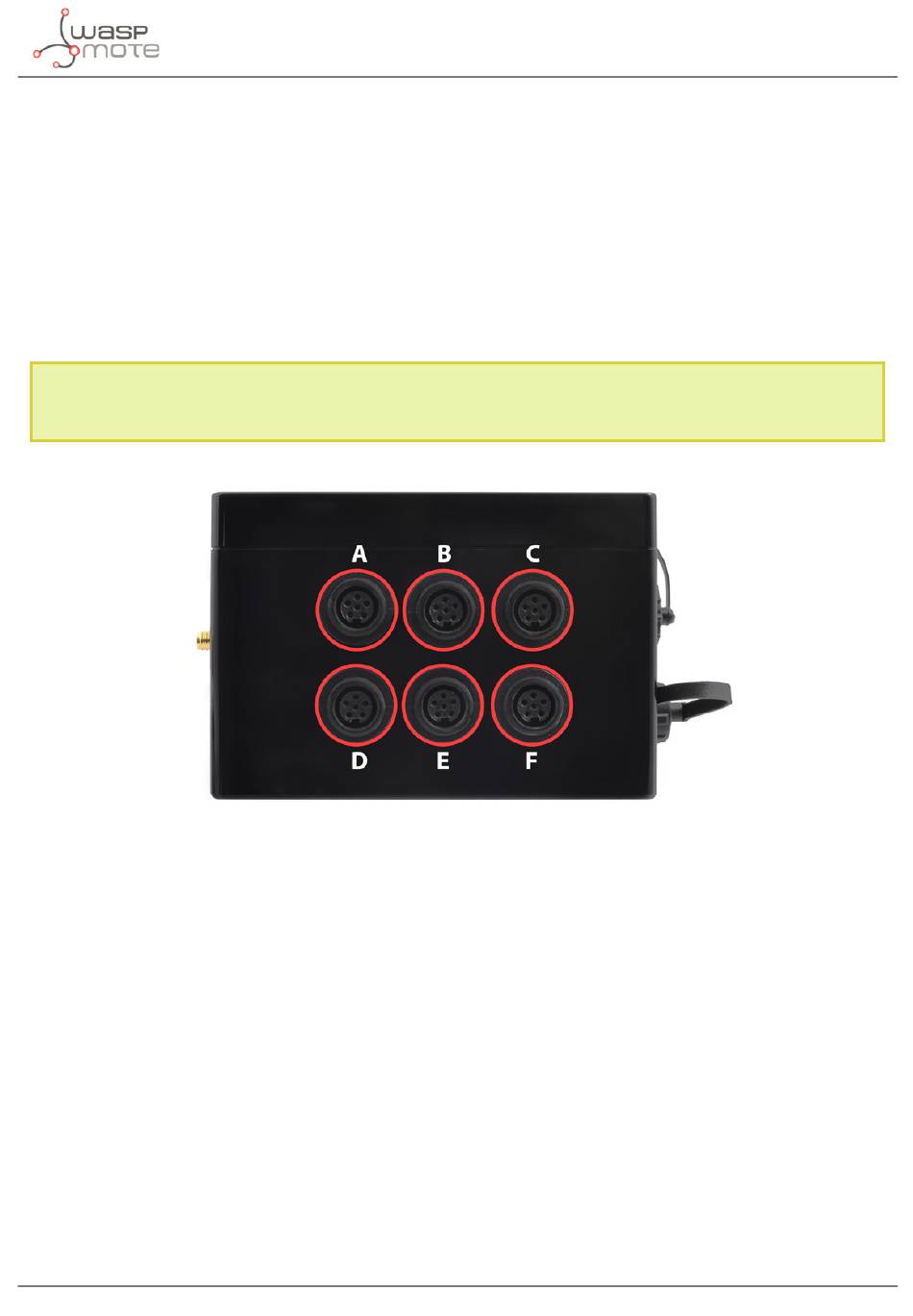

Figure: Identification of sensor sockets
