5.1.3. Socket

This sensor can be connected in sockets 1, 2, 3, 4 and 5 in Waspmote OEM and sockets A, B, C, E and F in Plug &
Sense!.

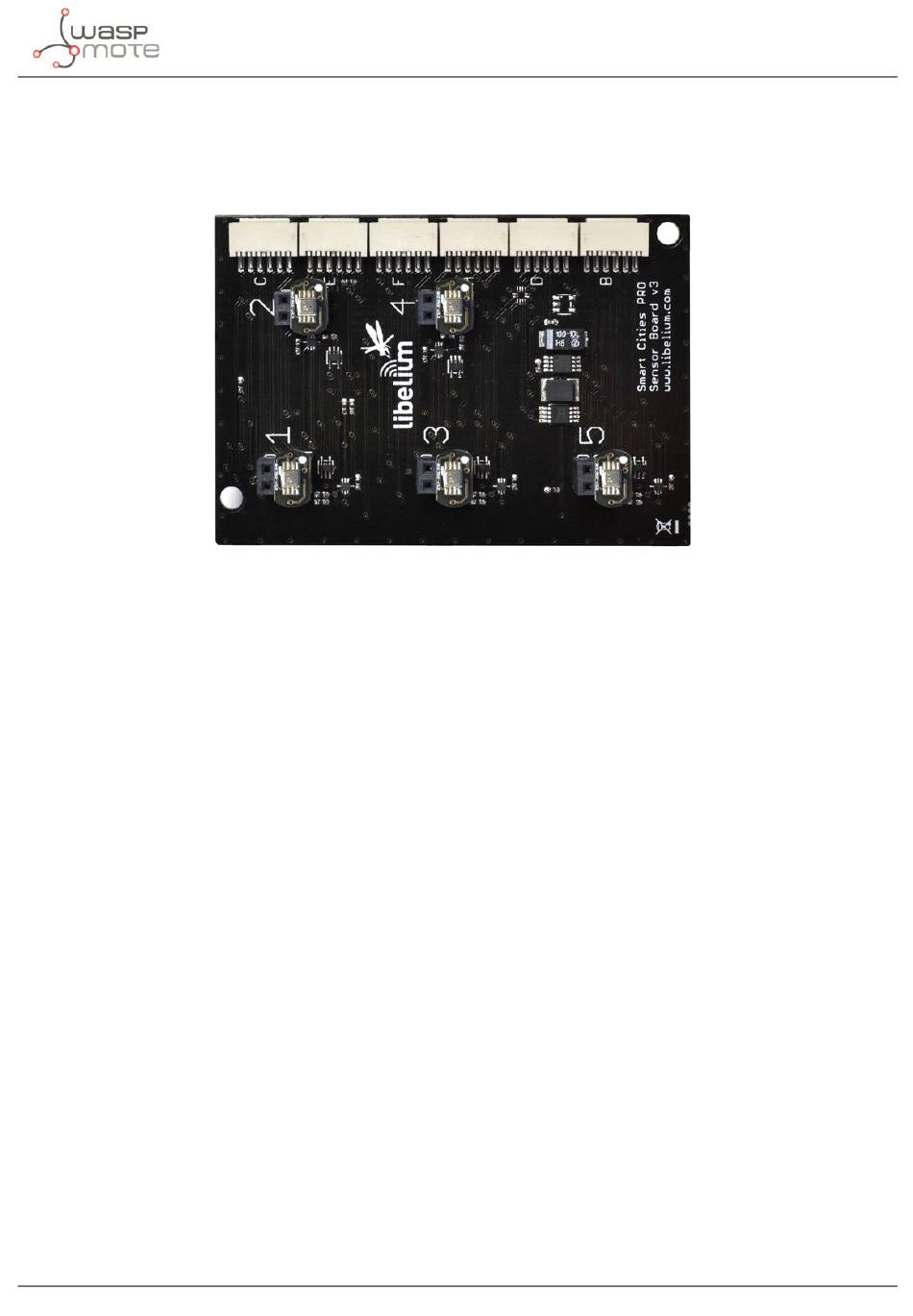

Figure: Temperature, Humidity and Pressure Sensors in sockets 1, 2, 3, 4 and 5
In the image above we can see highlighted the four pins of the terminal block where the sensor must be connected
to the board. The white dot on the luxes board, must match the mark of the Smart Cities PRO Sensor Board.
Please mind that each socket has 3 rows, but only 2 are used for that sensor, because it only has 2x2 pins. A bad
connection can cause malfunction or even hardware damage.
