I2CXL-MaxSonar®-MB1202™:
Operation frequency: 42 kHz
•
Maximum detection distance: 765 cm
•
Consumption (average): 2 mA
•
Consumption (peak): 50 mA
•
Usage: Indoors only
•

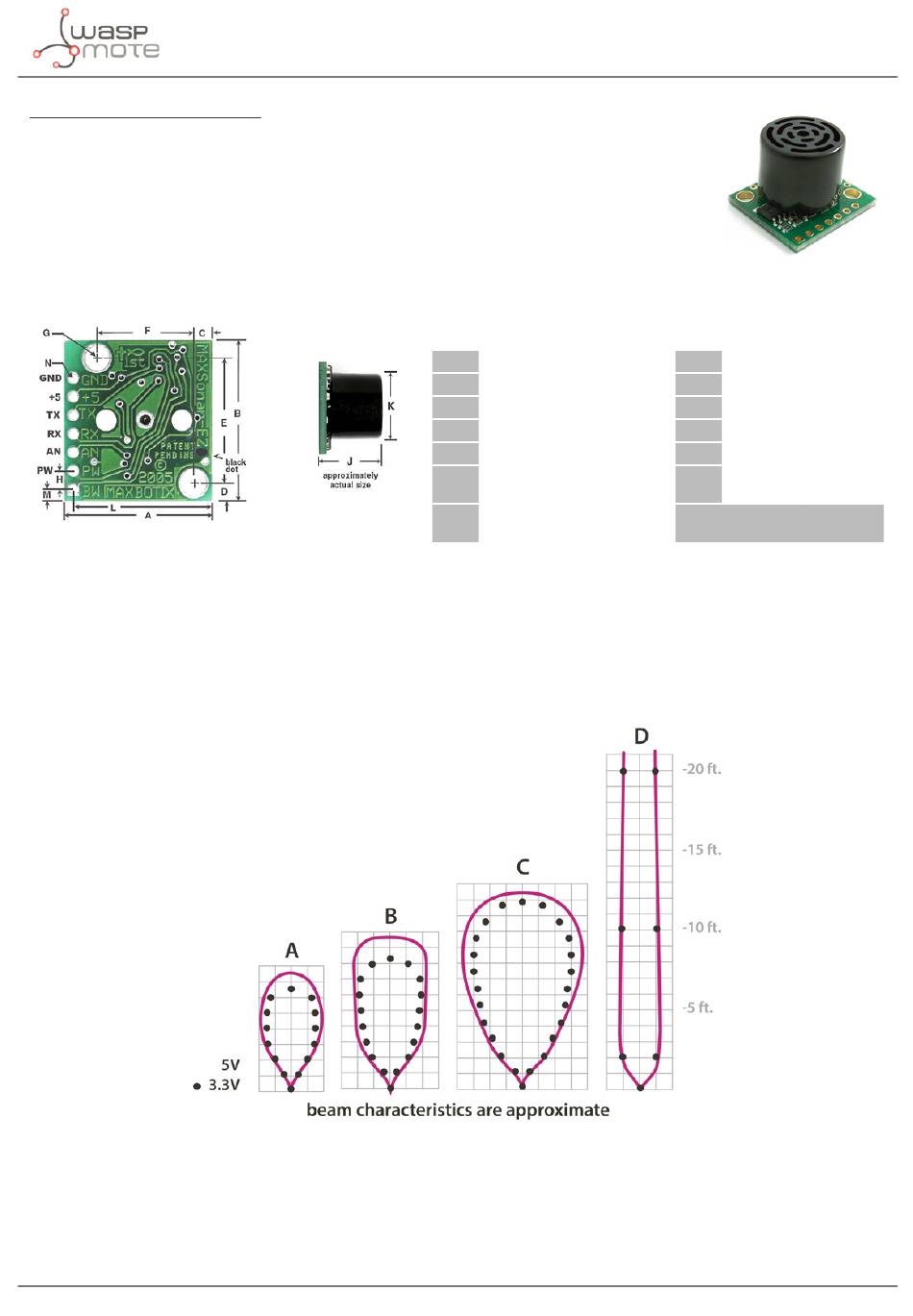

Figure: Ultrasonic I2CXL-MaxSonar®-MB1202 Sensor dimensions
In the figure below we can see a diagram of the detection range of the sensor developed using different detection
patterns (a 0.63 cm diameter dowel for diagram A, a 2.54 cm diameter dowel for diagram B, an 8.25 cm diameter
rod for diagram C and a 28 cm wide board for diagram D):
Figure: Diagram of the sensor beam extracted from the data sheet of the Ultrasonic I2CXL-MaxSonar®-MB1202 sensor from MaxBotix
A
0.785"
19.9 mm
B
0.870"
22.1 mm
C
0.100"
2.54 mm
D
0.100"
2.54 mm
E
0.670"
17.0 mm
F
0.510"
12.6 mm
G
0.124" dia.
3.1 mm
dia.
-33-
Sensors
Figure: Ultrasonic I2CXL-MaxSo-
nar®- MB1202 from MaxBotix™
Sensor
H
0.100"
2.54 mm
J
0.645"
16.4 mm
K
0.610"
15.5 mm
L
0.735"
18.7 mm
M
0.065"
1.7 mm
N
0.038" dia.
1.0 mm
weight: 4.3 grams
dia.
v7.3
