ETEKCITY ESW01-USA Manual

Voltson smart wi-fi outlet
Hide thumbs Also See for ESW01-USA:
Table of Contents

Advertisement

Quick Links

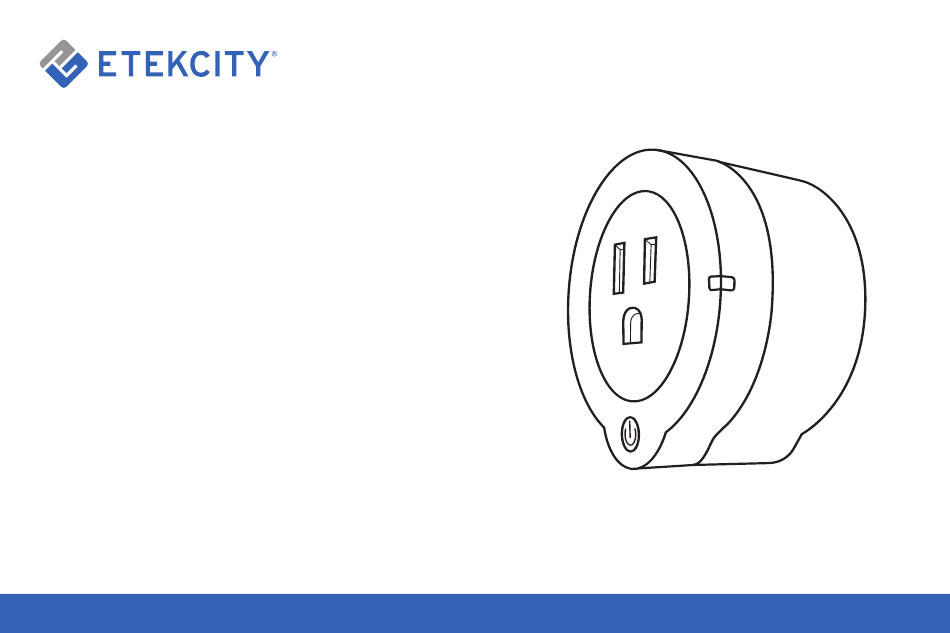

Voltson Smart Wi-Fi Outlet
Model No.: ESW01-USA
Questions or Concerns? (855) 686-3835 • support@etekcity.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ESW01-USA and is the answer not in the manual?

Questions and answers

Related Manuals for ETEKCITY ESW01-USA

Summary of Contents for ETEKCITY ESW01-USA

  • Page 1 Voltson Smart Wi-Fi Outlet Model No.: ESW01-USA Questions or Concerns? (855) 686-3835 • support@etekcity.com...
  • Page 2 Thank You. Thank you for purchasing the Voltson Smart Wi-Fi Outlet by Etekcity. We are dedicated to providing our customers with quality products for building a better living. Should you have any questions or concerns about using your new product, feel free to reach out...

  • Page 3: Table Of Contents

    Table of Contents Safety Information Delete a Device Fuction Diagram Log Out Setup Specifications Configuration Troubleshooting APN Mode Warranty Operation Customer Support Turning Devices On/Off Data Creating Schedules Using Sunrise & Sunset Scheduling Set Timer Away Mode Device Setting Share Device Energy Saving Mode Power Protection Reconfiguring a Device...

  • Page 4: Safety Information

    Safety Information • When cleaning, use a dry cloth to wipe the outlet’s surface. • The VeSync home automation app is only IMPORTANT: Please read, understand, and comply compatible with Android 4.0 / iOS 7.0 operating with all of the instructions provided in this manual systems and above.

  • Page 5: Fuction Diagram

    Function Diagram Power button 2. LED indicator Front View Back View...

  • Page 6: Setup

    Setup 2. Open the VeSync App and tap “Sign Up” to create a new account. Enter a new email & password, then tap “Sign In.” Scan the QR code or download the VeSync App Note: It is recommended create an account so that from the App Store or Google Play Store.

  • Page 7: Configuration

    Configuration 1. Tap the “+” button on the screen 2. Select “Wi-Fi outlet.” to add your device.
  • Page 8 3. Select this model. 4. Plug your smart outlet into a powered electrical outlet or power strip. The LED indicator should light up blue. Note: A purple LED light means the yellow and blue lights are on at the same time. If your LED light is yellow or off, please refer to the Reconfiguration section on page 31.
  • Page 9 5. Type in the name of your home Wi-Fi network and 6. The system will take a moment to connect. If you password, then tap “Join Network.” tap “Cancel” you will be taken back to the setup screen. Note: This Wi-Fi outlet configuration only supports a 2.4GHz Wi-Fi network.
  • Page 10 7. Congratulations! You have completed setup. Give Note: You can change the device name and picture your outlet a unique name, or simply tap “OK” to at any time in Device Setting. use the default name.

  • Page 11: Apn Mode

    APN Mode If setup fails, you can use APN mode to configure 1. While on the configuration page, your Wi-Fi outlet. tap “Use APN Mode.”...
  • Page 12 2. Enter your home Wi-Fi network name and 3. Press and hold the power button for 10 seconds password to start setup. until the LED light blinks blue or purple. Note: If necessary, unplug the outlet, then plug it back in. WiFi123...
  • Page 13 4. Go to the Settings on your mobile device, and 5. The system will take a moment to connect. If you select the Wi-Fi network that reads “ESP-XXXX” tap “Cancel” you will be taken back to the setup (Settings -> Wi-Fi) screen.
  • Page 14 6. Congratulations! You have completed setup. Give your outlet a unique name, or simply tap “OK” to use the default name.

  • Page 15: Operation Turning Devices On/Off

    Operation Turning Devices On/Off Method 1 Note: This on/off power button controls the power On the “My Devices” screen, you can tap the power flow of the smart outlet. The outlet itself will remain button to turn the device on/off. connected to the internet.
  • Page 16 Method 2 Tap on the device on the “My Devices” screen for a detailed view of the device. Tap the power button on the detailed view to turn the device on.

  • Page 17: Data

    Data The VeSync app gathers information from the outlet 1. On the detailed device page, tap the area near and will automatically calculate your energy usage. “Energy.” You can also tap the arrow to the right of Follow the steps below to view energy consumption “Energy.”...
  • Page 18 2. Tap “W”, “M”, “Y”, respectively, to see weekly, 3. To select a customized time period, tap the monthly, and yearly energy consumption. Tapping desired dates to define a start and end time. The app the 4th button allows you to view the energy will display the corresponding data.

  • Page 19: Creating Schedules

    Creating Schedules 1. Tap “+ Create Schedule” to create a scheduled 2. Set your scheduled time for your device and time for the device. a command to turn the outlet on or off at the scheduled time. You can also set an end time or leave it blank.
  • Page 20 3. You can turn on or off any schedule at anytime for your outlet. Note: This smart outlet supports up to 32 groups of schedules, timers, and away modes.

  • Page 21: Using Sunrise & Sunset Scheduling

    Using Sunrise & Sunset Scheduling You can schedule the outlet to turn on or off at sunrise or sunset based on your location. Make sure Location Services has been turned on for VeSync. 2. Tap “+ Create Schedule” to create a scheduled time for device.
  • Page 22 3. Select the “Start” or “End” time to set the time for sunrise or sunset. Note: You can not select sunrise or sunset for the same time. If you select “Sunrise” for your start time, you must select “Sunset” for the end time.
  • Page 23 4. When the time selection comes onto the screen, tap on the left or right arrows to select “Sunrise” or “Sunset.”...
  • Page 24 5. To confirm “Sunrise” or “Sunset,” tap the 6. You can also select “Sunrise” or checkmark to program the time. “Sunset” for your end time.
  • Page 25 7. Tap “Save” at the top of the screen when you 8. You can turn on or off any schedule at have set your start and end times. anytime for your outlet.

  • Page 26: Set Timer

    Set Timer 1. On the detailed device view, tap “Timer” then tap 2. Set your timer and command to turn the outlet on “+ Set Timer” to set a timer. or off. Tap “Save” when you are done.
  • Page 27 3. Tap “Start” to start timer. When the timer ends, it will execute the command you have set for the outlet. Note: For your safety, you cannot turn the device off once the timer has started.

  • Page 28: Away Mode

    Away Mode The away mode turns on the outlet at random for 1. On the detailed device view tap “Away”, then tap half-hour intervals during the programmed time. For “+ Set Away” to set an away timer. example, if your programmed away timer is at 11:30 pm, the away timer will turn the outlet on at anytime between 11:00 pm to 12:00 am for half an hour.
  • Page 29 2. Set a start and end time, and select the desired 3. Swipe to turn your away timer on or off. days for the away timer. Tap “Save” when you are done.

  • Page 30: Device Setting

    Device Setting This menu allows you to edit your device name and This menu also provides options for the Energy picture, as well as turn on/off notifications. Saving Mode, Power Protection, device sharing, and firmware updates.

  • Page 31: Share Device

    Note: You cannot share your device if you have not 2. Enter the person’s email and tap “Share.” created a VeSync account. 1. To allow your friends and family to control your outlet, tap “+” on the upper right-hand corner to share. user@etekcity.com...
  • Page 32 3. Tap the trash can icon to delete people who you Note: The persons you share your device with have shared your device with. cannot edit or delete your device settings. User user@etekcity.com...

  • Page 33: Energy Saving Mode

    Energy Saving Mode 2. Turn on the Energy Saving Mode. Enter your Cost per KWh and Max cost. Tap to “Save” when you are done. Your device will now turn off once it has reached your max cost setting. The VeSync App allows you to program the smart Wi-Fi outlet to save energy based on the cost per kilowatt hours (kWh).

  • Page 34: Power Protection

    Power Protection Note: This Wi-Fi outlet is not a professional energy calculating device. The outlet only provides rough estimates and should not be relied on as a primary source for power protection. The Power Protection mode enables you to program the outlet to prevent power spikes from damaging your connected devices.

  • Page 35: Reconfiguring A Device

    Reconfiguring a Device 2. Tap the “+” button on the screen to add your device. 1. Unplug your connected device from the Wi-Fi Outlet. Press and hold the power button on the outlet for about 5 seconds until the LED indicator shines solid blue.
  • Page 36 3. Select “Wi-Fi outlet.” 4. Select this model.
  • Page 37 5. Plug your smart outlet into a powered electrical 6. Type in the name of your home Wi-Fi network and outlet or power strip, then check the LED indicator. password, then tap “Join Network.” If the indicator light is solid blue, then you can tap to continue setup.
  • Page 38 7. The system will take a moment to connect. If you tap “Cancel” you will be taken back to the setup screen.

  • Page 39: Connect With Alexa

    Connect with Alexa Note: You must create a VeSync account to connect with Alexa. To view these instructions on the VeSync app, tap “More” on the My Devices page, then tap “Connect with Alexa.”...

  • Page 43: Connect With Google Home

    Connect with Google Home Note: You must create a VeSync account to connect with Google Home. To view these instructions on the VeSync app, tap “More” on the My Devices page, then tap “Connect with Google Home.”...

  • Page 47: Delete A Device

    Delete a Device Android devices: On the iOS devices: On the “My “My Devices” screen, Devices” screen, swipe press and hold for 2 left to delete. seconds to delete. 1. You can delete your device on the Device Setting menu. This option is located at the bottom of the screen.

  • Page 48: Log Out

    Log Out Note: You do not need to log out if you have not 1. Tap your profile picture. created a VeSync account. 1. Tap on “More”. User...
  • Page 49 3. Tap “Log Out” at the bottom of the profile menu. user@etekcity.com User...

  • Page 50: Specifications

    Specifications Communication Mode IEEE802.11b/g/n (Wi-Fi) Communication Frequency 2400 - 2483.5 MHz Wireless Distance (Outlet to Router) 98 - 164 feet | 30 - 50 meters (max visible range) Maximum Switch Current AC Power Supply Range & Supply Frequency 120V, 60Hz Rf PA Power 25 dBm Power Consumption...

  • Page 51: Troubleshooting

    Troubleshooting date. • Make sure the Wi-Fi password you’re inputting is correct. • Try configuration using APN mode. Q: Why won’t my device respond to my app • Remove the Wi-Fi outlet from its power supply; remote commands? wait a few seconds and plug the outlet back in •...

  • Page 52: Warranty

    Warranty Terms & Policy Etekcity warrants all products to be of the highest quality in material, craftsmanship and service for a minimum of 1 year effective from the date of purchase. Warranty lengths may vary between product categories. Should you encounter any issues or have any questions regarding your new product, feel free to contact our helpful Customer Support Team.

  • Page 53: Customer Support

    Should you encounter any issues or have any questions regarding your new product, feel free to contact our helpful Customer Support Team. Your satisfaction is ours! Customer Support Support Hours Etekcity Corporation Monday - Friday: 1202 N Miller St. Suite A 9:00 am - 5:00 pm PST...
  • Page 54 Connect with us @Etekcity.
  • Page 55 Scan here to join the community! Visit us at www.etekcity.com Building on better living.
