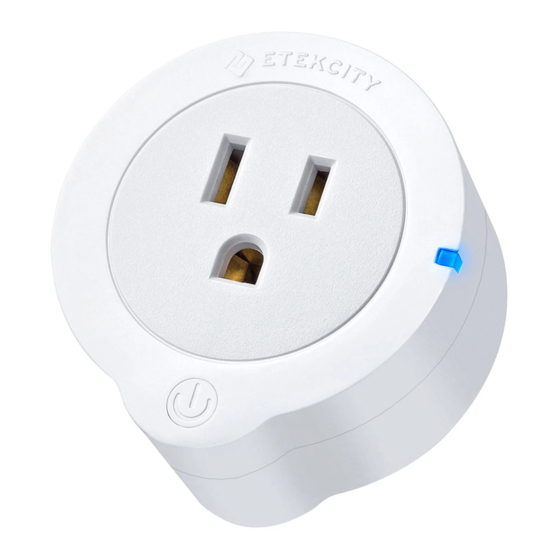

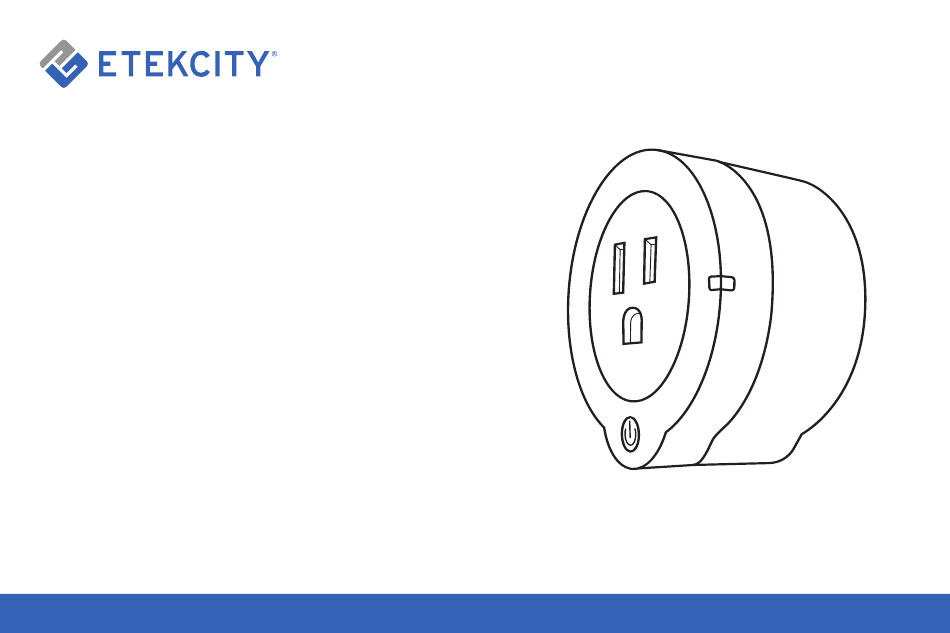

- Page 1 Voltson Smart Wi-Fi Outlet Model No.: ESW01-USA Questions or Concerns? (855) 686-3835 • support@etekcity.com...
- Page 2 Thank You. Thank you for purchasing the Smart Wi-Fi Outlet by Etekcity. We are dedicated to providing our customers with quality products to build on better living. Should you have any questions or concerns about using your new product, feel free to reach out to our helpful customer support team by email at (855) 686-3835 or by email at support@etekcity.
-
Page 3: Table Of Contents
Package Contents Table of Contents 1 x Voltson Smart Wi-Fi Outlet Safety Information 1 x Quick Start Guide Function Diagram iOS Set-Up & Configuration Operation Android Set-Up & Configuration Operation Re-configuring a Device Deleting/Sharing a Device, Logging Out 28 Specifications Troubleshooting Warranty Customer Support... -
Page 4: Safety Information
Safety Information • The VeSync home automation app is only compatible with Android 4.0 / iOS 7.0 operating systems and above. • The app does not support every phone/tablet. IMPORTANT: Please read, understand, and comply Only use Android 4.0 / iOS 7.0 or above. with all of the instructions provided in this manual •... -
Page 5: Function Diagram
Function Diagram Power Button 2. Indicator Light... -
Page 6: Ios Setup & Configuration
Setup iOS Setup & Configuration NOTE: Wi-Fi outlet configuration only supports a 2.4GHz Wi-Fi network. If you connect your smartphone/tablet to a 5GHz Wi-Fi network, please reconnect to 2.4GHz. A 5GHz router supports both 2.4GHz and 5GHz networks at the same time, please make sure the names of the networks are different, and then connect to the 2.4GHz network. - Page 7 Configuration To begin configuration for the smart outlet, tap the button on 2. Input your Wi-Fi network the top right corner of the home screen, then tap “Start Config”. ID and password and tap “Complete Configuration”.
- Page 8 3. Once configuration is 4. Connect the desired appliance complete, the outlet will to the smart outlet. Keep appear on the app home your appliance ON in order to screen. control it through the VeSync app. NOTE: If configuration fails, retry connection through APN mode.
- Page 9 APN Mode Skip to page 10 if your outlet is already configured. While in the configuration 2. Press and hold the outlet 3. Tap “Next”. menu, tap “Use APN”. power button for about 10 seconds and release when the LED light starts to slowly blink blue.
- Page 10 4. Navigate to your list of 5. Tap “Success” and input available Wi-Fi networks and your Wi-Fi network ID and connect to “ESP####”. Once password, then tap “Complete you are connected, return to Configuartion”. Once the VeSync app. configuration is complete, the outlet will appear on the app home screen.
-
Page 11: Operation
Operation Turning Devices ON/OFF Method 1 Method 2 While at the VeSync app home screen, tap the slider Tap on the desired outlet to access the outlet next to the desired outlet to turn it on or off. control settings. Tap the power button on the center of the screen to turn the device on or off. - Page 12 Action Schedule Action Schedule lets you schedule Turn device ON. and repeat an action such as turning a device on or off on Turn device OFF. desired days and times. Tap to set the hours and To add a new scheduled action: minutes of the desired actions.
- Page 13 To set the maximum or Triggered Actions minimum power (units in W) of an outlet, tap on the data You can set a minimum or field next to Max Power or Min maximum power that an outlet Power and a numpad pops up can accommodate and trigger so you can input your desired specific actions, such as switching...
- Page 14 2. Scroll on the data fields to 3. Your outlet will automatically Countdown set the desired countdown switch off after the countdown for your outlet. When ends. To conserve energy, you can you’re finished setting the schedule a countdown for an countdown, tap ‘OK’...
- Page 15 Action Timer Tap to confirm your timed action. The Action Timer allows you to Tap to set the date of the switch an outlet on/off on a single desired action. scheduled date and time. Tap to set the time of the To add a timed action: desired action.
- Page 16 Power History Edit Device Tap “Power History” to view a To edit the device name and To change the device icon, tap device’s power consumption. information, tap “More”, then tap the current icon, then select what “Edit Device”. device you are controlling. Action Log Device Icon To see the usage and action...
-
Page 17: Android Setup & Configuration
Setup Android Setup & Configuration NOTE: Wi-Fi outlet configuration only supports a 2.4GHz Wi-Fi network. If you connect your smartphone/tablet to a 5GHz Wi-Fi network, please reconnect to 2.4GHz. A 5GHz router supports both 2.4GHz and 5GHz networks at the same time, please make sure the names of the networks are different, and then connect to the 2.4GHz network. - Page 18 Configuration To begin configuration for the smart outlet, tap the button on 2. Input your Wi-Fi network ID the top right corner of the home screen, then tap “Start Config”. and password and tap “OK”.
- Page 19 3. Once configuration is 4. Connect the desired appliance complete, the outlet will to the smart outlet. Keep appear on the app home your appliance ON in order to screen. control it through the VeSync app. NOTE: If configuration fails, retry connection through APN mode (see pages 19-20).
- Page 20 APN Mode Skip to page 21 if your outlet is already configured. While in the configuration 2. Press and hold the outlet 3. Tap “Next”. menu, tap “Use APN”. power button for about 10 seconds and release when the LED light starts to slowly blink blue.
- Page 21 4. Tap “Join Esp Wifi”. 5. In your list of available Wi-Fi 6. Tap “Confirm” and input networks, connect to “ESP your Wi-Fi network ID and XXXXXX”. Once you are password, then tap “OK”. connected, return to the Once configuration is VeSync app.
-
Page 22: Operation
Operation Turning Devices ON/OFF Method 1 Method 2 While at the VeSync app home screen, tap the power Tap on the desired outlet name to access outlet button next to the desired outlet to turn it on or off. control settings. Tap the power button on the center of the screen to turn the device on or off. - Page 23 Action Schedule Action Schedule lets you schedule Turn device OFF. and repeat an action such as turning a device on or off on Turn device ON. desired days and times. Tap to set the hours and To add a new scheduled action: minutes of the desired actions.
- Page 24 To set the maximum or Triggered Actions minimum power (units in W) of an outlet, tap on the data You can set a minimum or field next to Max Power or Min maximum power that an outlet Power and a numpad pops up can accommodate and trigger so you can input your desired specific actions, such as switching...
- Page 25 2. Tap on the Minute and 3. Your outlet will automatically Countdown Second data fields to set the switch off after the countdown desired countdown for your ends. To conserve energy, you can outlet. When you’re finished schedule a countdown for an setting the countdown, tap on outlet before it automatically “Confirm”...
- Page 26 Action Timer The Action Timer allows you to Tap to set the date of the switch an outlet on/off on a single desired action. scheduled date and time. Tap to set the time of the To add a timed action: desired action.
- Page 27 Power History Device Editor Tap “Power History” to view a To edit the device name and To change the device icon, tap device’s power consumption. information, tap “More”, then tap the current icon, then select what “Device Editor”. device you are controlling. Event Logging Icon To see the usage and action...
-
Page 28: Re-Configuring A Device
Re-configuring a Device Press and hold the outlet 2. Tap the + button on the top 3. Input your Wi-Fi network ID power button for about 5 right corner of the screen. and password, then tap “OK” seconds and release when the to confirm. -
Page 29: Deleting/Sharing A Device, Logging Out
Deleting a Device Logging Out Share a Device Input another account to share To delete a device, swipe the While in the main menu of the your device’s controls and desired device left, then tap app, tap Settings on the bottom settings. -
Page 30: Specifications
Specifications Communication Mode IEEE802.11b/g/n (Wi-Fi) Communication Frequency 2400 - 2483.5 MHz Wireless Distance (Outlet to Router) 98 - 164 feet | 30 - 50 meters (max visible range) Maximum Switch Current AC Power Supply Range & Supply Frequency 120V, 50/60Hz Rf PA Power 25 dBm Power Consumption... -
Page 31: Troubleshooting
Troubleshooting Issue Solution Why won’t my device respond to my Ensure that your Wi-Fi network is working normally and that the app remote commands? outlet is fully and properly plugged in and connected to a device. Why won’t the power usage data Sometimes it takes some time for the power usage data to update. -
Page 32: Warranty
Then, re-configure the outlet with the network. Warranty Terms & Policy Etekcity warrants all products to be of the highest quality in material, craftsmanship and service for a minimum of 1 year effective from the date of purchase. Warranty lengths may vary between product categories. -
Page 33: Customer Support
Should you encounter any issues or have any questions regarding your new product, feel free to contact our helpful Customer Support Team. Your satisfaction is ours! Customer Support Support Hours Etekcity Corporation Monday - Friday: 1202 N Miller St. Suite A 9:00 am - 5:00 pm PST... - Page 34 Connect with us @Etekcity.
- Page 35 Scan here to join the community! Visit us at www.etekcity.com Building on better living.
