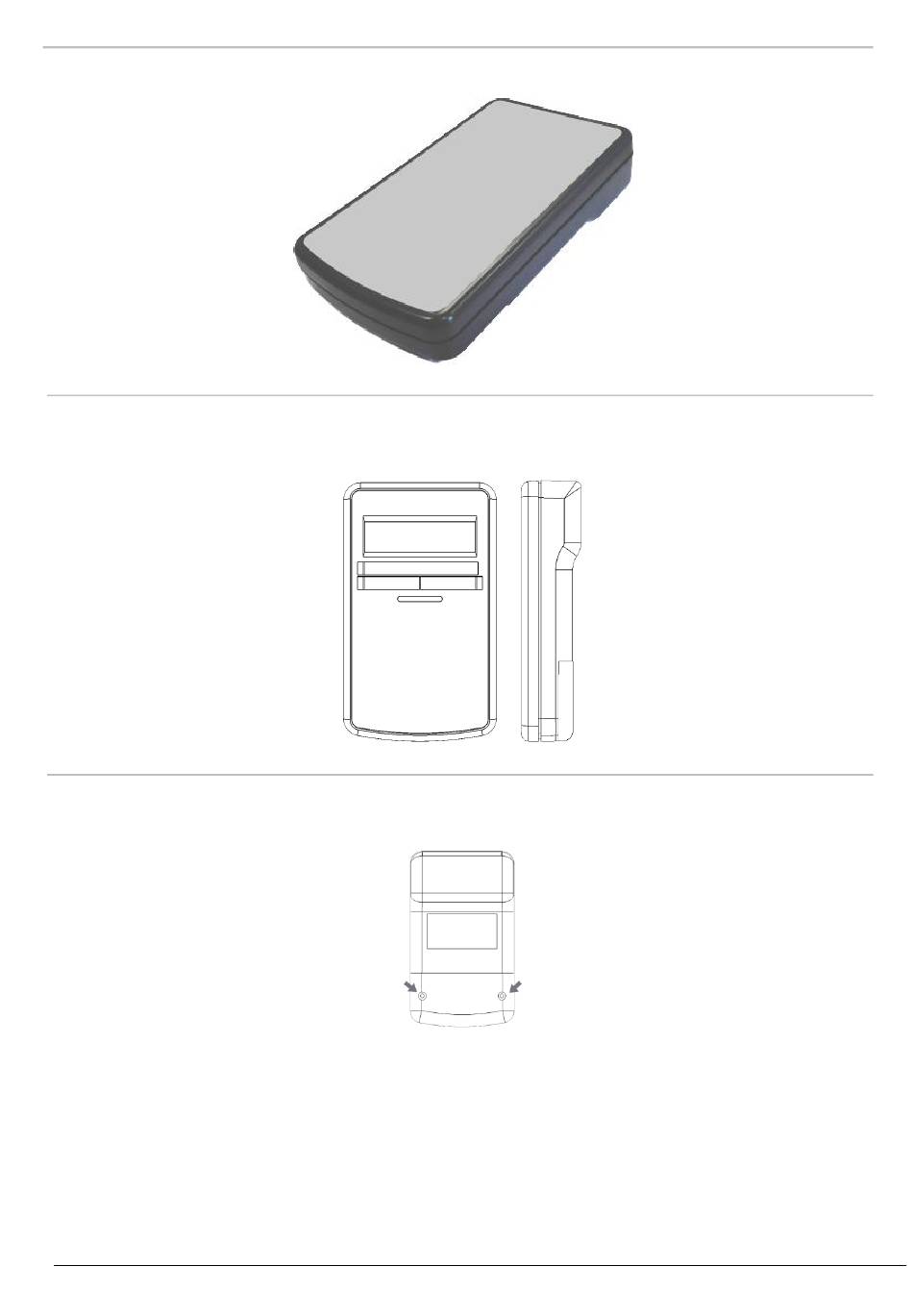

Handheld Type

Dimensions

This ABS handheld case is 152mm X 90mm and 34mm deep at its highest section.

Opening the Case

The battery compartment is secured with two Philips head screws.
Once the battery compartment has been removed this gives access to two further screws which can be
removed (along with the two at the top end) to allow the entire case to come apart. This gives access to the
legend channels where cardboard legends can be slipped in behind the transparent label windows where
supported. Note that the top two screws will have rubber 'O' rings on them. These rings are an integral part of
the sealing mechanism.
