IntesisBox KNX - BACnet/IP client

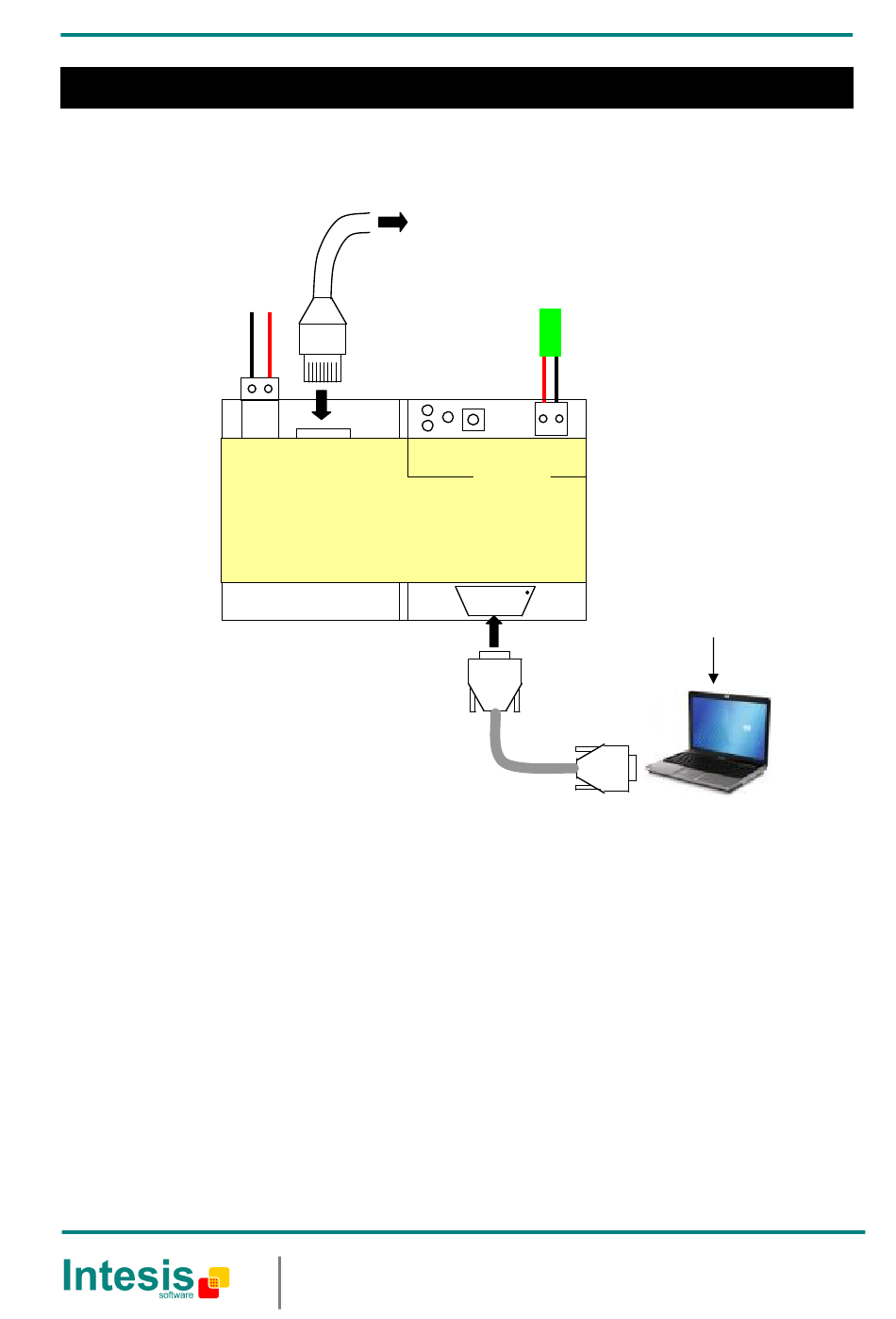

Connections

Power
See Note 1
________________________________________________________________________________________
Notes:
1. Must use NEC Class 2 or Limited Power Source (LPS) and SELV rated power supply.
If using DC power supply:
Respect polarity applied of terminals (+) and (-). Be sure the voltage applied is within the range admitted (9 to 30 Vdc).
•
The power supply can be connected to earth but only through the negative terminal, never through the positive terminal.
If using AC power supply:
Make sure the voltage applied is of the value admitted (24 Vac). Do not connect any of the terminals of the AC power
•
supply to earth, and make sure the same power supply is not supplying any other device.
2. BACnet/IP connection: Connect the cable coming from the BACnet/IP device to the connector ETH of IntesisBox, use a crossover
ethernet CAT5 cable if connecting directly to a BACnet/IP device, or a straight ethernet CAT5 cable if connecting to a hub or switch
of the LAN of the building. If communicating through the LAN of the building contact the network administrator and make sure that
UDP traffic and the port used (47808 by default) are allowed through all the LAN path.
3. Use the software LinkBoxEIB to configure IntesisBox. Consult the user's manual for details.
This information is subject to change without notice.
Ethernet
RJ45
- +
Ethernet
CMN 24Vac
BACnet/IP
9 - 30Vdc
Max.125 mA
24Vac
Max.127mA
IntesisBox
50-60Hz
www.intesis.com
Console Cable 1.8 m.
Standard DB9F - DB9M.
Supplied.
URL http://www.intesis.com
email info@intesis.com
tel +34 938047134
BACnet/IP
device
See Note 2
KNX TP-1
(Bus EIB)
+ -
KNX TP-1
®
PC Console
Installation Manual
LinkBoxEIB
Only for configuration
See Note 3
Doc. Rev.2
3 / 5
